#1
10-09-2016, 11:09 PM
|
||||
|
||||
|
Where does this part go???

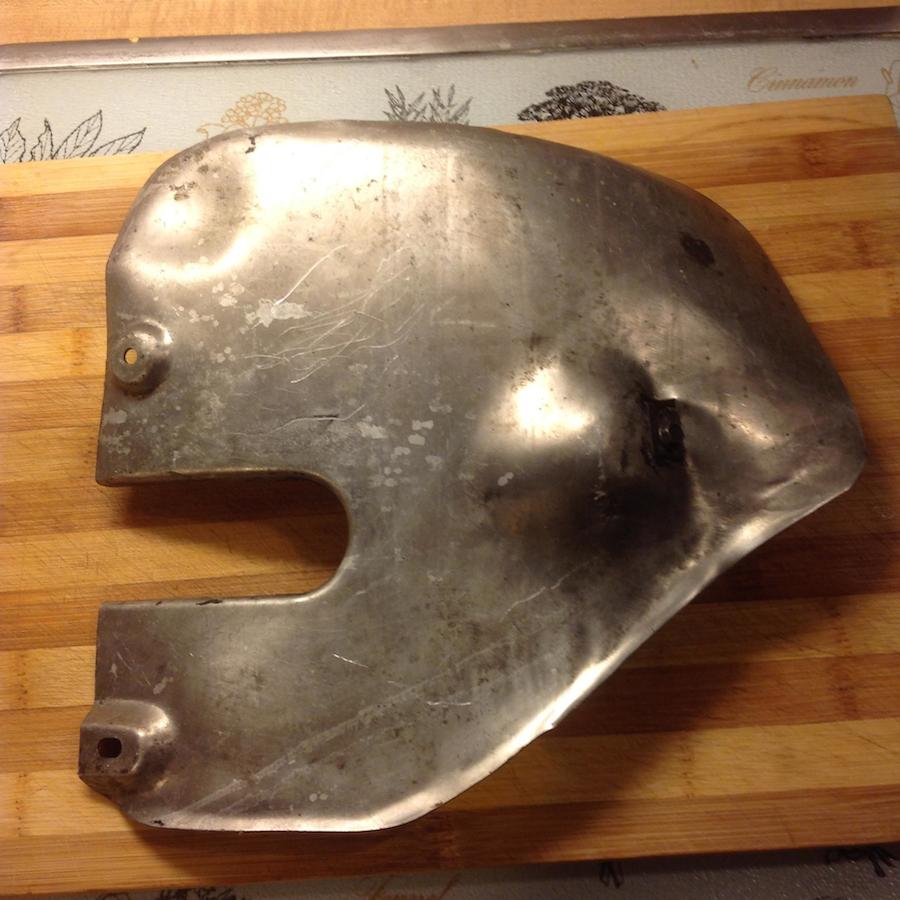

Always a fun part of reassembly... and it's been 8 years since I took it apart, so... where does this shield-like thing go?
__________________
'82 300D (project) '46 Willys (project) "Nothing seems to be the way it should in this garage." -jt20 "Smarter than an engine, dumber than a hoodlatch..." -jt20 "Start jumping up and down to smoosh down those engine mounts" -DeliveryValve "no" -kerry "At this rate, you may have it done by winter" -layback40 Last edited by konstan; 10-12-2016 at 04:22 PM.
|
|
#2
10-10-2016, 05:42 AM
|
||||
|
||||
|
Well i have one under my exhust manifold .Fitted to the bulk head.Could be steering box shield ,with a guess
|
|
#4
10-10-2016, 11:15 AM
|
||||
|
||||
|
Quote:
__________________
'82 300D (project) '46 Willys (project) "Nothing seems to be the way it should in this garage." -jt20 "Smarter than an engine, dumber than a hoodlatch..." -jt20 "Start jumping up and down to smoosh down those engine mounts" -DeliveryValve "no" -kerry "At this rate, you may have it done by winter" -layback40
|
|
#6
10-10-2016, 12:31 PM
|
||||
|
||||
|
Left side of picture is where it goes.
|
|
#7
10-12-2016, 04:14 PM
|
||||
|
||||
|
Ooooh thank you; i better put it back on. This also explains where that clip goes where it is clipped to the heater line -- I was wondering about that clip in my 'left over after rebuild' parts pile as well...
(sorry for linking such a huge image; I just changed it to a much smaller attachment)
__________________
'82 300D (project) '46 Willys (project) "Nothing seems to be the way it should in this garage." -jt20 "Smarter than an engine, dumber than a hoodlatch..." -jt20 "Start jumping up and down to smoosh down those engine mounts" -DeliveryValve "no" -kerry "At this rate, you may have it done by winter" -layback40
|
|
#8
10-19-2016, 06:32 PM
|
||||
|
||||
|
Finally installed it
The shield is finally in place.
Other than a few nuts and bolts this was the last major part in the "leftover parts bin" after reinstalling the engine+tranny. I surmise that the purpose of this heat shield is to prevent the turbo+exhaust from cooking the battery. This is a very useful part!
__________________
'82 300D (project) '46 Willys (project) "Nothing seems to be the way it should in this garage." -jt20 "Smarter than an engine, dumber than a hoodlatch..." -jt20 "Start jumping up and down to smoosh down those engine mounts" -DeliveryValve "no" -kerry "At this rate, you may have it done by winter" -layback40
|
 |
