w123 key tumbler not the issue??
Hi,
My key was sticking and unable to turn at all. After a lot of wiggling, I managed to get it to turn and took the tumbler out. I read that once you experience this, you should replace the tumbler however with the tumbler out I'm able to turn it easily. Upon further investigation, it looks like the little ramp/steering lock could be the culprit. In the locked position, it requires some effort to slide it over. I have to push it over a light bit as I turn the ignition. Anyone discover this as well? I don't want to pull out the whole locking mechanism, but has anyone figured out a way for the tab to not slide over and engage the steering lock? I don't mind if I lose the steering lock feature. Maybe jam a piece of paper in there? I'm not convinced that grinding down the locking pin will do anything as that little ramp thing appears to be getting stuck?? thoughts? Thanks
__________________
1985 300d Turbo Diesel |
#2
|
|||
|
|||
Take a look at the two links below, I'm hoping that they'll be helpful to you to address the tumbler/key issue.
Mercedes-Benz W123 Ignition Tumbler Removal | W123 (1977-1985) | Pelican Parts DIY Maintenance Article Mercedes-Benz W123 Ignition Switch and Assembly Replacement | W123 (1977-1985) | Pelican Parts DIY Maintenance Article |
#3
|
||||
|
||||
Several Years ago I had the innards of the steering colum break and it acted like it was the Tumbler that was the issue.
About a month ago the lock tumbler fell apart. There has been 2 other members that had other parts inside of the steering colum lock break.
__________________
84 300D, 82 Volvo 244Gl Diesel |
#4
|
|||
|
|||
In my 1984 300D, it wasn't the tumbler but rather a "spring detent post" in the innards which was the problem. You must remove the steel cover plate on the key stalk to access it. The stalk must be out of the car for this, which is a bit tricky since you must pull the dash hole forward a bit to swing it clear, plus push a hard-to-see release button to pull it out. You can only push that release in when the key is in a certain position.
This spring post is thin die-cast zinc or such. It breaks off, then jams the rotating mechanism. It seems so wimpy that I am surprised it hasn't broken off in more cars. Mine no longer has that spring detent, so the key doesn't click into positions as solidly, but hasn't ever rotated while driving. Of course, don't hang heavy junk off your key or you will have problems, in many cars especially recent Chevy's. I should have removed the steering lock rod while I had the stalk out and that cover off, since I doubt the anti-theft is worth the risk of jamming the steering wheel. I debated that, but left it in to be "correct". I staked & epoxied the steel cover plate back. Good luck.
__________________
1984 & 1985 CA 300D's 1964 & 65 Mopar's - Valiant, Dart, Newport 1996 & 2002 Chrysler minivans |
#5
|
|||
|
|||
Quote:
Bill - This sounds very similar. So if I pull the stalk out and remove the plate, should I be able to remove the spring detent thing as well as the steering lock rod? From my inspections, I'm pretty sure my issue is that detent spring thing. When I attempt to turn the inside with needle nose pliers after it has locked, it is a bear to turn unless I assist/push the spring thing to assist in moving it a bit.
__________________
1985 300d Turbo Diesel |
#6
|
|||
|
|||
If you can't easily turn the switch with the tumbler out, then the tumbler certainly isn't what is jamming it. Of course, insure your steering lock isn't tight against the switch (all cars). You have to file or pry out the stakes in the die-cast aluminum (?) body so you can remove the steel plate. If you spring detent has broken, it will just shake out.
You can then remove the steering lock rock if you desire. Those probably don't help much in anti-theft since it took just a few weeks for criminals to learn how to defeat them. Plus, no loser would steal an old M-B diesel unless they believe the prices asked on craigslist.
__________________
1984 & 1985 CA 300D's 1964 & 65 Mopar's - Valiant, Dart, Newport 1996 & 2002 Chrysler minivans |
#7
|
|||
|
|||
I had the same issue, thought it was the tumbler so I took it out and just started the car with a screwdriver. The next day the lock mechanism wouldn't turn at all. I had to reach up under the dash with a hacksaw and cut it out so I could start the car and get home... Don't let that happen to you.
Bought a good used assembly from a member, put my old tumbler in it and completely forgot about the problem.
__________________
1984 300TD -- summer daily driver Many others that aren't Mercedes... |
#8
|
|||
|
|||
Quote:
Thanks!
__________________
1985 300d Turbo Diesel |
#9
|
|||
|
|||
Buy a new steering lock with switch. End of story. Your rigged up setup is only going to work for so long before you are drilling out the entire unit.
__________________
'80 300SD - '83 240D - '00 E55 AMG - '02 G500 |
#10
|
||||
|
||||
Same experience. The tumbler was fine in my 240d. It was something in the mechanism of the steering lock that was binding. I got a nearly new assembly off a guy on eBay for something like $100. I looked into trying to clean up the innards with a file but I gave up for some reason...I think it was hard to open up.
__________________
79 300TD “Old Smokey” AKA “The Mistake” (SOLD) 82 240D stick shift 335k miles (SOLD) 82 300SD 300k miles 85 300D Turbodiesel 170k miles |
#11
|
|||
|
|||
Several years ago I replaced the tumbler when my key got so I had to jiggle it to turn it.

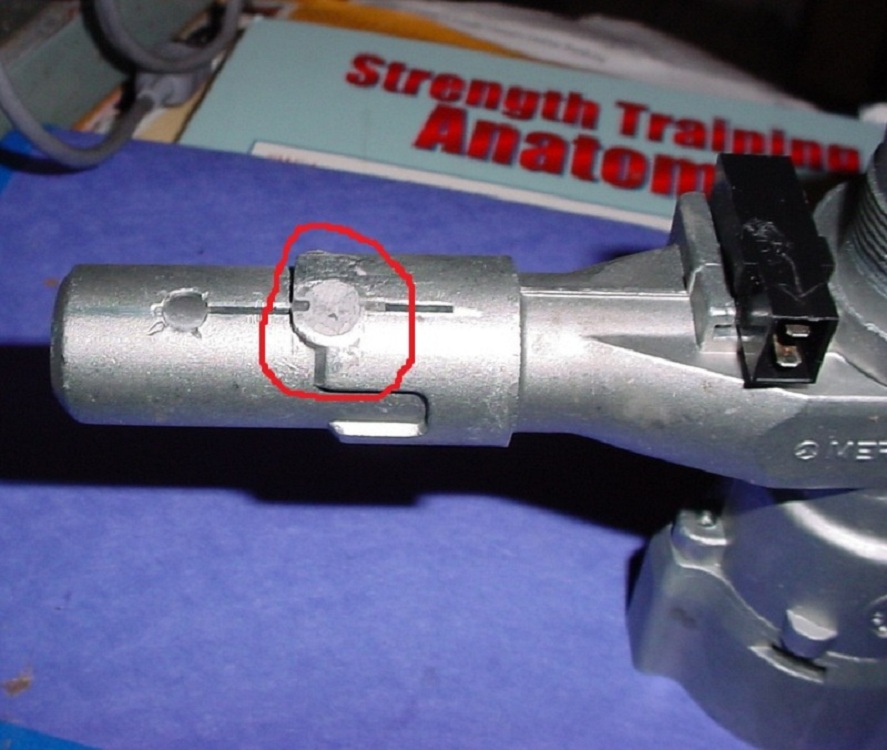

But I also used JB Weld to glue that locking pin permanently back in the housing so that if the mechanism ever fails again I will still be able to get it out without major surgery. Richard |
#12
|
||||
|
||||
Quote:
It also makes the Key easier to turn so there is less stress on the components.
__________________
84 300D, 82 Volvo 244Gl Diesel |
#13
|
||||
|
||||

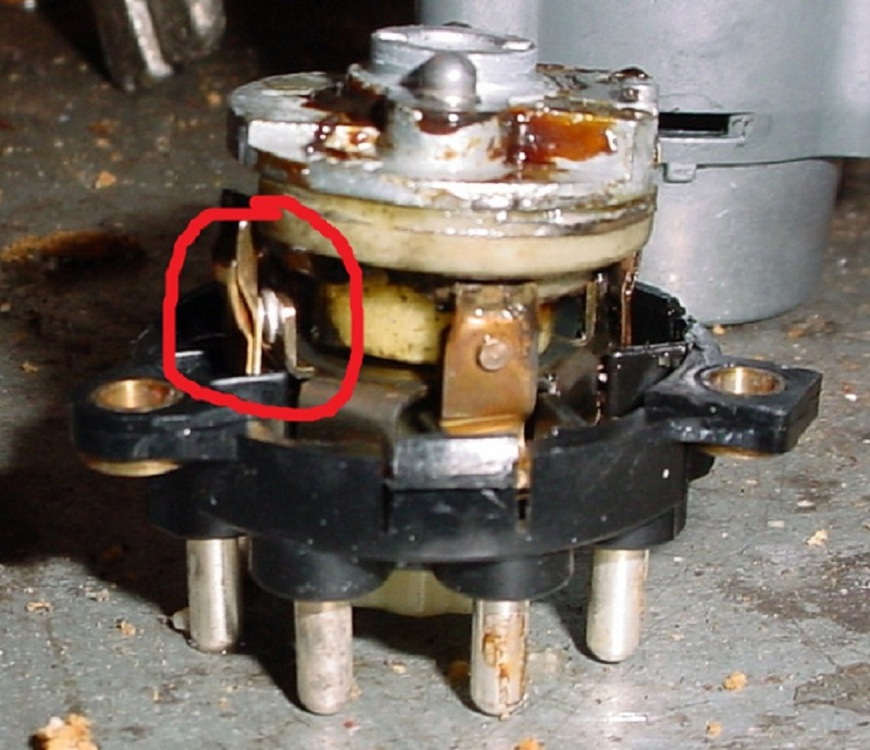

When the Steering Colum Lock is out inspect the Ignition switch. In the pic the circled area shows one side of the points is entirely gone.
When you buy an new steering Colum Lock you get a new Ignition Switch and New Vacuum Shutoff Switch along with the colum lock. The other pic shows the part number for the steering colum lock. I bought it from mercedes but it was made in france. Steering Colum Lock (Ignition Lock Housing) causes Ignition Switch Failure
__________________
84 300D, 82 Volvo 244Gl Diesel |
#14
|
|||
|
|||
Thanks guys. I put in an order on a new locking stalk thing. As much as I want to alter the existing one, my hope is my other electrical gremlins might go away.
__________________
1985 300d Turbo Diesel |
#15
|
||||
|
||||
Oh yeah. Thx, the photos jogged my memory. Things were binding up and this little pin wasn't moving. Wow, I should have filled it in like you. That would have saved a few bucks.
