You can always screw two nuts on it. Lock them together and use the right one to remove the bolt. Assuming, of course, that it screws out of the floorboard.

Weld a nut on it

Spray it with PB Blaster, leave it overnight, spray it once more the next day, hit it (not too hard) straight down with a hammer, clamp some vice-grips on it and turn it out?

__________________
Will



72 280SEL
85 300CD 288k
00 E320 Wagon 4-matic 100k
11 E350 Wagon 4-matic 45k

73 VW Westfalia Camper
67 VW Westfalia Camper

66 Porsche 912

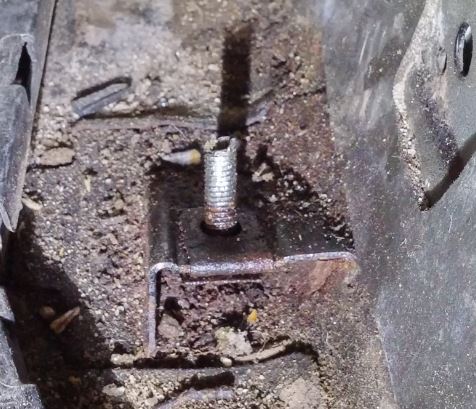

From what I can see, it's bolted to a u-nut. Cut a bit, bend, pry and pull it out

__________________
97 e300d, 78 300Dt, 95 E300d, 94 E320 estate

X2 "Spray it with PB Blaster, leave it overnight, spray it once more the next day, hit it (not too hard) straight down with a hammer, clamp some vice-grips on it and turn it out?"

AND try tightening it before loosening it.

If no success then...

X2 "From what I can see, it's bolted to a u-nut. Cut a bit, bend, pry and pull it out"

__________________
"Rudeness is a weak man's imitation of strength" - Eric Hoffer

I've twisted it both ways several times over that period. I haven't tried hitting it with a hammer but I will certainly give it a go today.

I appreciate the directions, thank you.

__________________
84 300SD
85 380SE
83 528e
95 318ic

Strike while applying the torque, if it breaks bend the u clip out and replace it.

__________________
"Rudeness is a weak man's imitation of strength" - Eric Hoffer

Is it in a location where you could use a micro-torch to heat? I've always had better luck with heat rather than chemicals or impact. I know that penetrant spray would kick up a serious amount of smoke but cleaning with brake cleaner beforehand should alleviate that.

__________________
Sam

84 300SD 350K+ miles ( Blue Belle )

The acetone and lacquer thinner is a good penetrant

but since you have been using that for so long.. why don't you clean up the area around it.. since this is a vertical hole you are dealing with ......and put a little bead of RTV about an inch around the outside..build up a little Dam.. let it CURE over night ... come back and put some of the acetone / lac thinner into it ... like a quarter inch deep .. then leave it over night..

__________________
1980 240d ,

chain elongation, cam marks reference:
http://www.peachparts.com/shopforum/diesel-discussion/10414-help-i-need-check-stretch.html

http://www.peachparts.com/shopforum/diesel-discussion/305365-9-degrees-chain-stretch.html

evap fin cleaning:

http://www.peachparts.com/shopforum/diesel-discussion/156207-photo-step-step-post-showing-w123-evaporator-removal-1983-240d-1982-300td.html?highlight=evaporator

A/C thread

http://www.peachparts.com/shopforum/diesel-discussion/297462-c-recommendations-mb-vehicles.html

Today I tried again to loosen the bolt and ended up grinding it down to a nub and finessing it out with a pair of channel locks and a big screw driver.

I'm a little ashamed to have left something this simple hanging around for so long.

Thank you all, gentlemen.
