1) [See highlight] If the bolt had already been tightened to a torque that was greater than the setting on the wrench, then the wrench would immediately click without any further rotation of the bolt.

2) Insert the bolt with washer thru the shaft stand and observe the number of threads exposed. Five or more, no problem. If four, just make sure that the torque wrench is set correctly.

that hardware bolt is not a stretch bolt so what do you torque it? Also may not be room for that hex head in place of the cap bolt. I'd order a new mb bolt if available.

__________________
[SIGPIC] Diesel loving autocrossing grandpa Architect. 08 Dodge 3/4 ton with Cummins & six speed; I have had about 35 benzes. I have a 39 Studebaker Coupe Express pickup in which I have had installed a 617 turbo and a five speed manual.[SIGPIC]

..I also have a 427 Cobra replica with an aluminum chassis.

That's the behavior I'd hope to see, but I've never started a torque wrench in over-torque, so I didn't know what to expect.

I decided to go ahead and look at this. Here is a photo. The perspective makes it hard to see the relative lengths, but there are certainly more than five threads exposed. What is special about that threshold?

Attached Thumbnails



This is a new MB bolt. The fact that this came directly from MB is what has led to my confusion. Part of what of I'm trying to figure out is whether there are two varieties of bolt MB used for this, and this part number is for the alternate style. There is evidence suggesting this is the case, which would mean the hex head bolt should be an adequate substitute. But no one has yet emerged with a definitive verdict on the two-styles theory. See one of my earlier posts for how we got here.

In the manual section 05-235 removal and installation of rocker arms with rocker arm bearing brackets it has torque 38 Nm

There is no further comment on torques or the bolts. No comment that the Bolts cannot be reused.

For installation it only has: "Set the complete rocker arm group and screw down"

__________________
84 300D, 82 Volvo 244Gl Diesel

The problem with bottomed out bolts with a click style torque wrench is the a lot of people will go to the click then click it again for good measure (doing nothing useful in a necked bolt but over torquing a straight bolt.

__________________
[SIGPIC] Diesel loving autocrossing grandpa Architect. 08 Dodge 3/4 ton with Cummins & six speed; I have had about 35 benzes. I have a 39 Studebaker Coupe Express pickup in which I have had installed a 617 turbo and a five speed manual.[SIGPIC]

..I also have a 427 Cobra replica with an aluminum chassis.

At five threads engagement 86% of the ultimate thread shear strength has been reached. A torque of 28 lb-ft is approx. 60% of the max. that could be used with that bolt. Hence, well within the torque vs. shear limits.

Who said anything about a bottomed bolt? Not the OP.

Yes! And in many ways, this is part of what confuses me, though maybe I'm overthinking.

Here's how I landed here. Puzzle #1: why did my original bolt break so easily if there shouldn't be any issue regarding re-use of bolts (I wasn't yet up to 38 NM/28 FTLBS when it broke, and was amazed at how easily the stub spun out). Possible solution to 1: the bolt was a stretch bolt that was stretched to capacity, and so shouldn't have been re-used. But this leads to puzzle #2: why does neither the FSM, nor any tutorial I've read about valve stem seal replacement or rocker arm removal advise caution regarding this? Instead they all say just to put the damn bolts back in and torque to spec. Possible solution to 2: there are two varieties of bolt MB used here, a stretch variety and a non-stretch. The FSM and most tutorials cover the non-stretch. This would also explain the multiple part numbers. And according to the FSM note I attached earlier, it looks like this is just what MB did with head bolts generally, only they made sure to note it, and perhaps didn't do so with the rocker assembly ones?

So what does this analysis overlook?

Just general stuff.

I have had click type torque wrenches that would get a glitch and allow you to over torque. I have set the torque wrong. On Truck Engines I have torqued bolts or nuts to the same torque and had head bolts snap or strip out the bolt of threads.
You never know what the person who worked on the Engine before you did.

Torque wrenches with a dial gauge generally stay in calibration better but you need to handle them carefully and in some positions you have lots of trouble reading the gauge. If you drop one I have seen the pointers come off or the clear covers get damaged.
Click type Torque wrenches have to be of a high quality in order for them to have decent accuracy. But they still get out of order more then other types do.

Occasional you get a Blot that did not get heat treated correctly.

I listened in on a conversation. A guy owned various earth moving equipment. It is not unusual for them to occasionally pop a bolt. He said that the Chinese Bolts of the same grade as US Bolts were cheaper but did not last as long. I mention this because like Torque Wrenches there is a quality issue involved.

That does not answer your question but does show the variations that are involved.

__________________
84 300D, 82 Volvo 244Gl Diesel

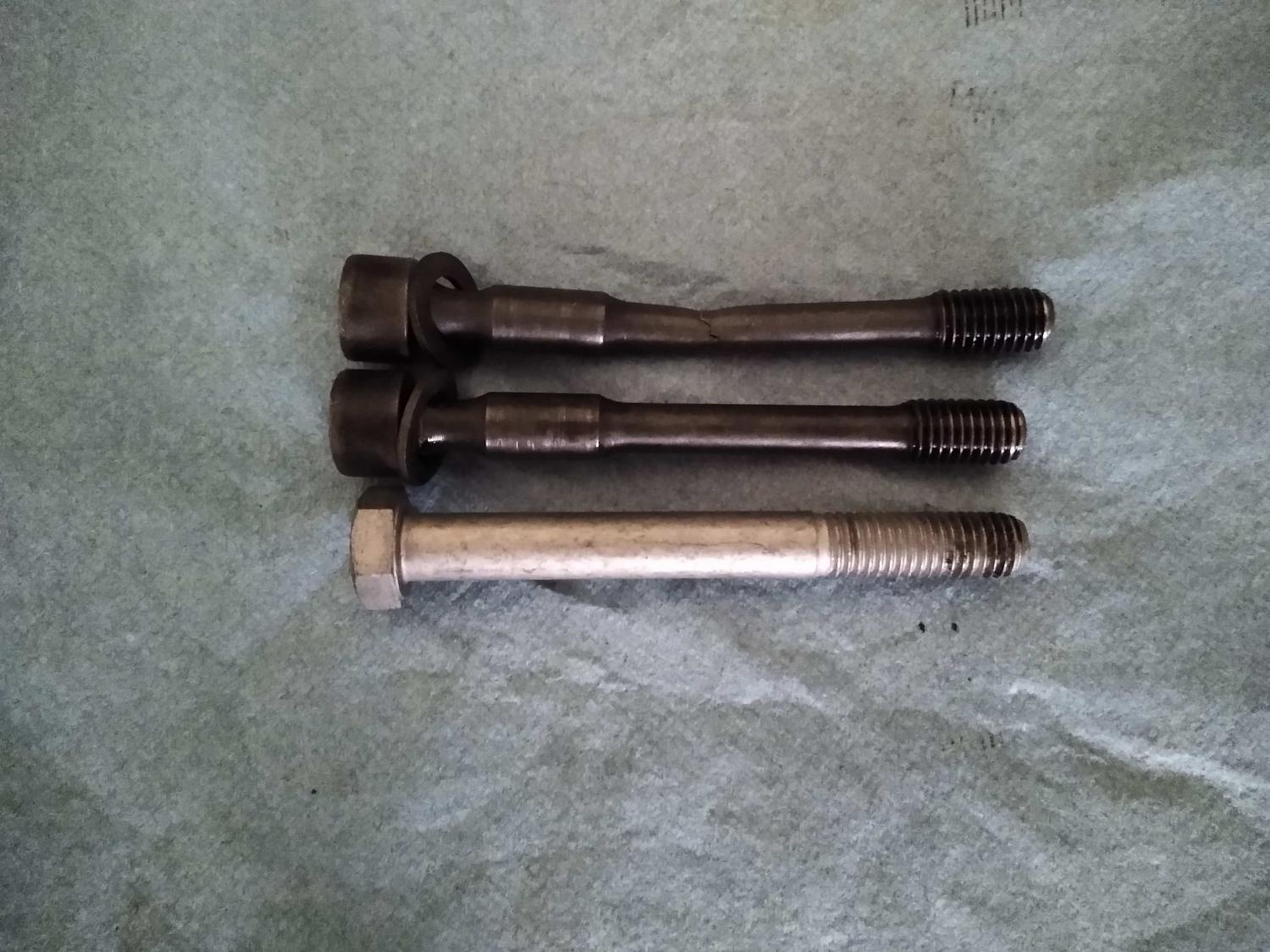

So this morning I decided to go out to the 240 and look at the mate to the broken bolt (I had screwed it into its socket to avoid losing it). I think the attached photo is pretty illuminating. I'll leave it here without comment for a bit.

Attached Thumbnails



You did in post 16, it appears to me.

I mention it not because you would ever do that but because a lot of less experienced folks do it routinely sort of like double knotting your shoe laces (perhaps) in their mind.

__________________
[SIGPIC] Diesel loving autocrossing grandpa Architect. 08 Dodge 3/4 ton with Cummins & six speed; I have had about 35 benzes. I have a 39 Studebaker Coupe Express pickup in which I have had installed a 617 turbo and a five speed manual.[SIGPIC]

..I also have a 427 Cobra replica with an aluminum chassis.

Perhaps the previous installer did not understand how the stretch bolts work?

__________________
[SIGPIC] Diesel loving autocrossing grandpa Architect. 08 Dodge 3/4 ton with Cummins & six speed; I have had about 35 benzes. I have a 39 Studebaker Coupe Express pickup in which I have had installed a 617 turbo and a five speed manual.[SIGPIC]

..I also have a 427 Cobra replica with an aluminum chassis.

FWIW, over my career I've seen and had more than a few bolts simply give up before they reached the proper torque ~ there's a finite lifespan and it's not always anyone's fault when one lets go .

This replacement bolt gives me the creeps, I'd rather source the correct one be it new or used .


That snapped one is clearly very stretched .

__________________
-Nate
1982 240D 408,XXX miles
Ignorance is the mother of suspicion and fear is the father

I did then what I knew how to do ~ now that I know better I do better

From my experience as well, have to agree 101% on that statement.

I would appreciate that words that I did not write not be ascribed to me.
If the accusation can be substantiated, then post my words, not just an accusation.
If use of the word "bottomed" by me can be found in post #16, post it.
