  #1
Old 06-04-2004, 12:57 AM
dmorrison's Avatar
Registered User

Join Date: Dec 2002
Location: Colleyville, Texas
Posts: 2,694
Broken Neutral Safety Switch and replacing shifter bushings

Worked on my daughters and sons cars today.
While we were at it I decided to replace the shifter bushings since mine were rattling.
Did the 240D's while I replaced the transmission rear seal, another story, and figured I would jack up the 300TD, place the front on jack stands and replace the bushings.
First replacing the bushings is a PITA. They are hard to get into the hole. Need some serious forcing with a screw driver. Had to take the shifter rod out of the car to get the front/tranny bushing in. Not very much room next to the tranny of the 300TD. Lots more room in the 240D, the tranny is more forward in the tunnel
The rear bushing, or shifter bushing has room around it so it is doable in the car. Otherwise you will have to remove the entire shifter assembly.
Removed the rod and installed the bushing. Reinstalled the rod HOWEVER I did not properly install the neutral safety shift lever into the metal shifter lever on the transmission. The result was when I moved the shift lever to the park position. I broke the plastic lever INSIDE the switch. Drilled the rivets out and opened it up. Broke the thing.
Now what's interesting. We have no working car.
240D drive-shaft out, LCA bushing out, battery tray out
560SL idling rough and I hope the air pump clutch made the terrible noise, if not It might be the timing chain rails
65 Mustang in the middle of installing the AC system.
300TD neutral safety switch.
Tomorrow My sons friend will take us to the dealer for the part. Then I promise I will not touch the 300TD until the 240D and Mustang are on the road.

Tomorrow night is the Barbecue get together at the West End in Dallas. Got to get the car running.

What I learned, besides don't work on the only car you have running.

To replace the shifter bushings it is easier to remove the rod and do the forward/tranny bushing on the work bench. To remove the rod, remove the bolt/nut assembly holding the shifter lever to the transmission rod that comes out of the tranny.
Remove the rod toward the rear.
When putting the rod back on the shifter shaft, ensure the neutral switch rod is inserted into the shifter rod that attaches to the tranny. The neutral switch has about a 90 degree movement and you can position the black plastic switch lever as you install the shifter lever.
Install the bolt/nut unit on to the tranny shaft and tighten.
IF you break your switch your car will not start and the backup lights will not illuminate.
If the black plastic lever can go around 360 degrees, you broke the lever inside the switch.
You can take the switch off the tranny without draining the fluid. It's attached with 2 10mm bolts. It does require a small ratchet to remove them. Not much room in the 300TD transmission tunnel.
To do it rotate the white electrical connection locking ring. Rotate the front part clockwise until the tabs on the black connection are free. Then pry the switch out with a screwdriver. 2 would be best. Unscrew the 2 bolts and the unit will lift off. The shift rod lever must be off the tranny to remove the switch.
Have friend drive you to the dealer for your new part and install it.

Dave

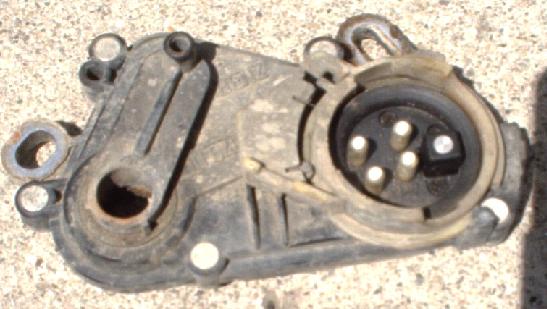

A picture of the broken switch.

Attached Thumbnails
Broken Neutral Safety Switch and replacing shifter bushings-neutral-safety-swt.jpg
__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car

Last edited by whunter; 11-01-2010 at 04:48 AM. Reason: spelling
Reply With Quote
  #2
Old 06-04-2004, 01:14 AM
unkl300d's Avatar
Registered User

Join Date: Jul 1999
Location: San Francisco, Ca
Posts: 2,339
eeewwooooooooooodogggeeeeee!

Good info!
the 240D needs the shifter bushing sometime in my next life!
__________________
1979 300D 220 K miles
1995 C280 109 K miles
1992 Cadillac Eldorado Touring Coupe 57K miles SOLD
********************
1979 240D 140Kmiles (bought for parents) *SOLD.
SAN FRANCISCO/(*San Diego)
1989 300SE 148 K miles *SOLD
Reply With Quote
  #3
Old 06-04-2004, 01:36 AM
dmorrison's Avatar
Registered User

Join Date: Dec 2002
Location: Colleyville, Texas
Posts: 2,694
Was going to steel the NSS from the 240D to get the 300TD running to pick up a new one. Of course they are different.
The 83 240D has the W4B 025 or 722.117 transmission.
The 82 300TD has the W4A 040 or 722.315 transmission.

Dave
__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car
Reply With Quote
  #4
Old 10-16-2005, 08:06 PM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,363
Thumbs up Some pictures from a car I worked on

Some pictures from a car I worked on.
Attached Thumbnails
Broken Neutral Safety Switch and replacing shifter bushings-new-nss-installed.jpg   Broken Neutral Safety Switch and replacing shifter bushings-old-nss.jpg
__________________
ASE Master Mechanic
asemastermechanic@juno.com

Prototype R&D/testing:
Thermal & Aerodynamic System Engineering (TASE) Senior vehicle instrumentation technician.
Noise Vibration and Harshness (NVH).
Dynamometer.
Heat exchanger durability.
HV-A/C Climate Control.
Vehicle build.
Fleet Durability
Technical Quality Auditor.
Automotive Technical Writer

1980 240D
1983 300D
1984 190D
Reply With Quote
  #5
Old 10-16-2005, 09:06 PM
Registered User

Join Date: Jun 2004
Location: West of Ft. Worth. TX
Posts: 4,186
www.**************.com sells a little homemade tool that makes installation of the bushings easier. I know, sorry to mention this after the fact.
__________________
Sam

84 300SD 350K+ miles ( Blue Belle )
Reply With Quote
  #6
Old 10-16-2005, 09:19 PM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,363
More pictures

from the same car.
Attached Thumbnails
Broken Neutral Safety Switch and replacing shifter bushings-clip.jpg   Broken Neutral Safety Switch and replacing shifter bushings-bushing.jpg   Broken Neutral Safety Switch and replacing shifter bushings-new_bushing.jpg   Broken Neutral Safety Switch and replacing shifter bushings-new_bushing2.jpg   Broken Neutral Safety Switch and replacing shifter bushings-new_bushing3.jpg

Reply With Quote
  #7
Old 12-20-2005, 07:49 PM
sailor15015's Avatar
Reverse lights! Score!

Join Date: Apr 2005
Location: Norman, Oklahoma
Posts: 1,184
I just got my new(to me) '84 300D tonight. The back-up lights don't come on and I can start the car in any gear. Is this a bad neutral safety switch? They are a royal PITA to replace.
__________________
Seth

1984 300D 225K
1985 300D Donor body
1985 300D Turbo 165K. Totaled. Donor Engine. It runs!!!
1980 300SD 311K My New Baby.
1979 BMW 633csi 62K+++? Dead odo
Reply With Quote
  #8
Old 12-20-2005, 08:04 PM
Diesel Giant's Avatar
Registered User

Join Date: Oct 2004
Location: Loganville/Atlanta
Posts: 2,156
yep
__________________
1981 300D 147k
1998 VW Jetta Tdi 320k
2001 Dodge Ram 2500 141k
1979 300D 234k (sold)
1984 300D "Astor" 262k(sold)
Mercedes How-To and Repair Pictorials
I love the smell of diesel smoke in my hair
Reply With Quote
  #9
Old 12-20-2005, 08:16 PM
sailor15015's Avatar
Reverse lights! Score!

Join Date: Apr 2005
Location: Norman, Oklahoma
Posts: 1,184
Thanks
__________________
Seth

1984 300D 225K
1985 300D Donor body
1985 300D Turbo 165K. Totaled. Donor Engine. It runs!!!
1980 300SD 311K My New Baby.
1979 BMW 633csi 62K+++? Dead odo
Reply With Quote
  #10
Old 12-20-2005, 09:01 PM
JamesDean's Avatar
Electrical Engineer

Join Date: Apr 2005
Location: NE Ohio
Posts: 5,034
i took my NSS apart after I R&R'd it. What had happen was a little plastic piece broke off inside and the shift rod would move the switch but the switch wouldnt contact the pins/wires
__________________
Cruise Control not working? Send me PM or email (jamesdean59@gmail.com). I might be able to help out.
Check here for compatibility, diagnostics, and availability!

(4/11/2020: Hi Everyone! I am still taking orders and replying to emails/PMs/etc, I appreciate your patience in these crazy times. Stay safe and healthy!)


82 300SD 145k
89 420SEL 210k
89 560SEL 118k
90 300SE 262k RIP 5/25/2010
90 560SEL 154k
91 300D 2.5 Turbo. 241k
93 190E 3.0 235k
93 300E 195k
Reply With Quote
  #11
Old 12-20-2005, 10:33 PM
rg2098's Avatar
Detailing Moderator

Join Date: Jun 2004
Location: Rochester Hills, MI
Posts: 2,415
Does the NSS have a seal, or leak any fluid when removed? I have one ready to be installed (back-up lights come on halfway between park and reverse only).
__________________
Adam Lumsden
(83) 300D
Vice-President of the MBCA International Stars Section
Reply With Quote
  #12
Old 12-20-2005, 10:41 PM
sailor15015's Avatar
Reverse lights! Score!

Join Date: Apr 2005
Location: Norman, Oklahoma
Posts: 1,184
Nope. It just has three bolts that are kinda hard to get to because there's very little room between the side of the tranny and the frame. It doesn't mess with the innerds of the tranny, just bolts on to the outside. One lesson I learned the hard way, the electrical connection doesn't just pull off. If you examine it closely the white ring turns then the black connector comes off. I almost broke the black connector trying to pry it off
__________________
Seth

1984 300D 225K
1985 300D Donor body
1985 300D Turbo 165K. Totaled. Donor Engine. It runs!!!
1980 300SD 311K My New Baby.
1979 BMW 633csi 62K+++? Dead odo
Reply With Quote
  #13
Old 12-20-2005, 11:20 PM
KCM KCM is offline
Registered User

Join Date: Jan 2004
Posts: 636
Quick solution for the non-functioning neutral switch: jumper the terminals for the starter lockout, terminals 3 and 4 from the diagram I have, at the switch. This way you'll have your car up and running until you get a switch. Of course, you won't have backup lights, but that's minor. Just make sure to always press the brake when starting in case it is in gear.

As for the fellow with the non-functioning backup lights, drill out the rivets and clean the contacts. Then fasten it back together with some small screws. Heck of a lot cheaper than buying a new switch.
Reply With Quote
  #14
Old 12-21-2005, 12:18 AM
JamesDean's Avatar
Electrical Engineer

Join Date: Apr 2005
Location: NE Ohio
Posts: 5,034
Quote:
Originally Posted by KCM
Quick solution for the non-functioning neutral switch: jumper the terminals for the starter lockout, terminals 3 and 4 from the diagram I have, at the switch. This way you'll have your car up and running until you get a switch. Of course, you won't have backup lights, but that's minor. Just make sure to always press the brake when starting in case it is in gear.

As for the fellow with the non-functioning backup lights, drill out the rivets and clean the contacts. Then fasten it back together with some small screws. Heck of a lot cheaper than buying a new switch.
thats a lot of work for a $26-45 dollar part. I would just buy the switch..i have a 722.303 trans and my switch was only 26 dollars.

check www.***************
__________________
Cruise Control not working? Send me PM or email (jamesdean59@gmail.com). I might be able to help out.
Check here for compatibility, diagnostics, and availability!

(4/11/2020: Hi Everyone! I am still taking orders and replying to emails/PMs/etc, I appreciate your patience in these crazy times. Stay safe and healthy!)


82 300SD 145k
89 420SEL 210k
89 560SEL 118k
90 300SE 262k RIP 5/25/2010
90 560SEL 154k
91 300D 2.5 Turbo. 241k
93 190E 3.0 235k
93 300E 195k
Reply With Quote
  #15
Old 12-21-2005, 12:35 AM
sailor15015's Avatar
Reverse lights! Score!

Join Date: Apr 2005
Location: Norman, Oklahoma
Posts: 1,184
That's a much nicer price but will an off brand perform the same as the name brand in this case?

__________________
Seth

1984 300D 225K
1985 300D Donor body
1985 300D Turbo 165K. Totaled. Donor Engine. It runs!!!
1980 300SD 311K My New Baby.
1979 BMW 633csi 62K+++? Dead odo
Reply With Quote
