Turbo inlet housing

I am doing some modes on my 603 (adding an water/air intercooler and such) and need some room under the hood of my G300. The factory turbo inlet housing has the, (now plugged) pollution control unit built into the inlet housing. I would like to find one without this. This is a new turbo from the factory so I don't really want to replace the whole turbo just the inlet housing.
(photos are examples for reference)
Any suggestions would be appreciated.

Thanks
Mark
Attached Thumbnails
Turbo inlet housing-w-egr.jpg   Turbo inlet housing-%24_57-7.jpg
__________________
91 300GD SWB with transplanted 87 OM603 turbo motor

Last edited by inkblotz; 08-14-2015 at 07:51 AM.
Reply With Quote
  #2
Old 08-13-2015, 12:45 PM
KarTek's Avatar
<- Ryuko of Kill La Kill

Join Date: Jun 2007
Location: Bahama/Eno Twp, NC
Posts: 3,256
Do you have any more side shots of that "thing"? I have never seen something like that, it almost looks like a wastegate actuator or some such thing.
Reply With Quote
  #3
Old 08-13-2015, 05:54 PM
inkblotz's Avatar
Registered User

Join Date: Mar 2005
Location: Berkeley Lake, GA
Posts: 176
Standard issue 1987 MB
Attached Thumbnails
Turbo inlet housing-img_5140.jpg   Turbo inlet housing-img_5141.jpg   Turbo inlet housing-img_5142.jpg
__________________
91 300GD SWB with transplanted 87 OM603 turbo motor
Reply With Quote
  #4
Old 08-13-2015, 08:56 PM
Registered User

Join Date: Oct 2004
Posts: 3,225
Its a recirc aka bypass valve. Not really emissions related.
__________________
90 300TE 4-M

Turbo 103, T3/T04E 50 trim
T04B cover .60 AR
Stage 3 turbine .63 AR
A2W I/C, 40 LB/HR
MS2E, 60-2 Direct Coil Control
3" Exh, AEM W/B O2
Underdrive Alt. and P/S Pulleys,
Vented Rear Discs, .034 Booster.
3.07 diffs, 1st Gear Start

90 300CE 104.980
Milled & ported head, 10.3:1 compression
197 intake cam w/20 advancer
4 ignition advance
PCS TCM2000 running 722.6 trans, 600W PWM fan, water injection
Sportline sway bars
V8 rear subframe, Quaife ATB 3.06 diff
Reply With Quote
  #5
Old 08-13-2015, 09:42 PM
inkblotz's Avatar
Registered User

Join Date: Mar 2005
Location: Berkeley Lake, GA
Posts: 176
Thanks for clarifying.
Reply With Quote
  #6
Old 08-14-2015, 10:33 AM
Simpler=Better's Avatar
Ham Shanker

Join Date: May 2008
Location: Baltimore, MD
Posts: 2,532
If you need clearance I'd braze a plate in the opening and cut off any excess. "Alladin" white metal rods can be used to braze aluminum with a regular old MAPP gas torch(probably propane too if you're patient).

FYI-the alladin rods work well if you prep the surface with lye and a stainless wire brush immediately before brazing.
__________________
$60 OM617 Blank Exhaust Flanges
$110 OM606 Blank Exhaust Flanges
No merc at the moment
Reply With Quote
  #7
Old 08-14-2015, 01:27 PM
inkblotz's Avatar
Registered User

Join Date: Mar 2005
Location: Berkeley Lake, GA
Posts: 176
Thanks for the suggestion I may give it a try if I can't find a replacement housing.
Non of the euro turbos have this attachment.

Last edited by inkblotz; 08-14-2015 at 01:42 PM. Reason: needed more info
Reply With Quote
  #8
Old 10-05-2015, 08:35 AM
inkblotz's Avatar
Registered User

Join Date: Mar 2005
Location: Berkeley Lake, GA
Posts: 176

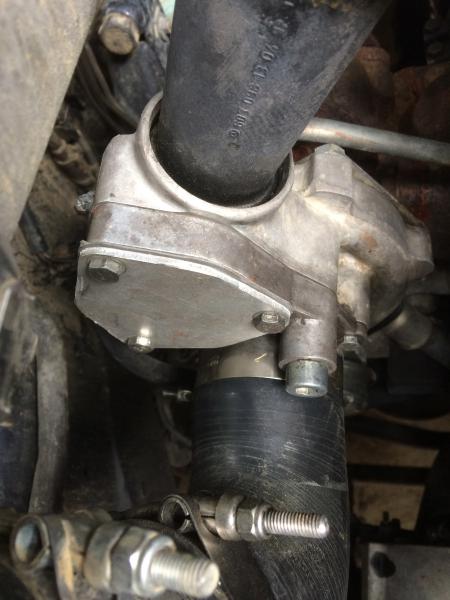

Turbo Plate made

I opted to remove the offending protrusion and make a cover plate.


Took a run to Asheville NC for the Overland Expo.
Drove perfectly.


Thanks for all the suggestions.
Attached Thumbnails
Turbo inlet housing-img_5450.jpg   Turbo inlet housing-img_5451.jpg   Turbo inlet housing-img_5452.jpg
__________________
91 300GD SWB with transplanted 87 OM603 turbo motor
Reply With Quote
  #9
Old 10-05-2015, 08:39 AM
inkblotz's Avatar
Registered User

Join Date: Mar 2005
Location: Berkeley Lake, GA
Posts: 176
A little muddy. Hurricane off the east coast
Attached Thumbnails
Turbo inlet housing-img_5484.jpg
