Fuse box chart, what fuse goes where

Please scan or take a picture of your fuse chart and post it here.
Remember to add year, make, model.

Note:
If you have issues posting the picture or scan, please e-mail it to me.



Thank you.
__________________
ASE Master Mechanic
asemastermechanic@juno.com

Noise Vibration and Harshness (NVH), Dynamometer, R&D, Heat exchanger durability development/test, HV-A/C Climate Control Prototype Development, Prototype Vehicle Development, Technical Quality Auditor, Automotive Technical Writer, Prototype Build, Prototype Durability, Prototype vehicle instrumentation.

1973 300D
1973 309D
1978 280SE
1980 240D
1983 300D
1984 190D

Last edited by whunter; 01-20-2009 at 02:44 PM.
Reply With Quote
  #2
Old 01-18-2009, 01:17 AM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,014
1984 500SEC Fuse chart

1984 500SEC Fuse chart
Attached Thumbnails
Fuse box chart, what fuse goes where-1984-500sec-fuse-chart.jpg
Reply With Quote
  #3
Old 01-18-2009, 01:21 AM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,014
fuse info

1982 300D Turbo
Post# 3 in the following thread link.

Can you help me out with fuse info?
Can you help me out with fuse info?

Last edited by whunter; 10-21-2012 at 10:18 PM.
Reply With Quote
  #4
Old 01-18-2009, 01:26 AM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,014
1999 ML320 fuse chart

1999 ML320 fuse chart
Post# 3 in the following thread link.
http://www.whnet.com/4x4/shoptalk.html
Reply With Quote
  #5
Old 01-18-2009, 01:28 AM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,014
1982 240D fuse chart

http://www.peachparts.com/shopforum/attachments/diesel-discussion/52646d1203856222-fuse-chart-needed-240d-fuse.jpg
Reply With Quote
  #6
Old 01-18-2009, 01:39 AM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,014
Fuse chart application W124_026, 030, 090, 133, 193,

Fuse chart application W124_026, 030, 090, 133, 193,

http://www.peachparts.com/shopforum/attachments/tech-help/14570d1073254985-300e-fuse-box-designation-chart-300e-fuse-legend-large-medium-.jpg
Reply With Quote
  #7
Old 01-18-2009, 01:49 AM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,014
W116 Fuse chart

W116 Fuse chart

http://www.peachparts.com/shopforum/attachments/general-information/38659d1164865649-fuse-cover-fuse-position-list-w116_fuse_box_lid_iusdhfuiivuui654.jpg
Reply With Quote
  #8
Old 01-18-2009, 02:00 AM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,014
1987 560 sel w126

this out of a Euro 1987 560 SEL last summer.
Pictures are of front and back.

USA
http://www.peachparts.com/shopforum/attachments/general-information/57715d1217637139-fuse-panel-layout-86-w126-mercedes-618.jpg

EURO
http://www.peachparts.com/shopforum/attachments/general-information/57716d1217637158-fuse-panel-layout-86-w126-mercedes-619.jpg
Reply With Quote
  #10
Old 01-19-2009, 02:07 PM
Texholdem

Join Date: Mar 2007
Location: Dallas
Posts: 756
1996 e320 w210

Under the hood




Under the seat, near the battery:






Attached Thumbnails
Fuse box chart, what fuse goes where-fuse_box.jpg   Fuse box chart, what fuse goes where-rearfusebox.jpg
__________________
1996 E320 since 1/16/08, 171K miles as of Feb 2011

---------------------------------------------------------
1989 300CE - R.I.P. Dec 29 2007
Other MBs (sold): 1992 300E-24 - 1979 350SLC - 1984 230E - 1990 300CE

Last edited by whunter; 01-22-2009 at 02:33 PM.
Reply With Quote
  #11
Old 01-19-2009, 05:00 PM
Jeremy5848's Avatar
Registered Biodiesel User

Join Date: Mar 2006
Location: Sonoma Wine Country
Posts: 7,844

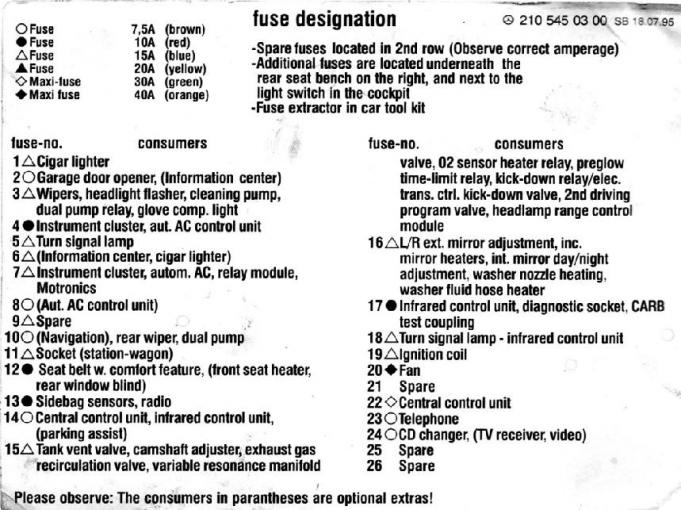

W210 Fuse Cards (1996 E300D)

Under the hood:




Behind a trim panel, left side of dash:




Under the rear seat:

Attached Thumbnails
Fuse box chart, what fuse goes where-w210hood.jpg   Fuse box chart, what fuse goes where-w210dash.jpg   Fuse box chart, what fuse goes where-w210seat.jpg
__________________

"Buster" in the '95

Our all-biodiesel family
1995 E300D (W124) . 217,000 miles My car
1996 E300D (W210) . 296,000 miles Wife's car
Santa Rosa population 170,685 (2012)
Total. . . . . . . . . . . . 678,685

"Oh lord won't you buy me a Mercedes Benz."
-- Janis Joplin, October 1, 1970

Last edited by whunter; 01-22-2009 at 02:41 PM. Reason: attached pictures
Reply With Quote
  #12
Old 01-19-2009, 05:19 PM
Jeremy5848's Avatar
Registered Biodiesel User

Join Date: Mar 2006
Location: Sonoma Wine Country
Posts: 7,844
W123 Fuse Card (1985 300D-T California)

Under the hood, driver's side, firewall:

Attached Thumbnails
Fuse box chart, what fuse goes where-w123fuse.jpg
__________________

"Buster" in the '95

Our all-biodiesel family
1995 E300D (W124) . 217,000 miles My car
1996 E300D (W210) . 296,000 miles Wife's car
Santa Rosa population 170,685 (2012)
Total. . . . . . . . . . . . 678,685

"Oh lord won't you buy me a Mercedes Benz."
-- Janis Joplin, October 1, 1970

Last edited by whunter; 01-22-2009 at 02:43 PM. Reason: attached picture
Reply With Quote
  #13
Old 01-19-2009, 05:29 PM
Jeremy5848's Avatar
Registered Biodiesel User

Join Date: Mar 2006
Location: Sonoma Wine Country
Posts: 7,844
W124 Fuse Card (1987 300D Turbo)

Under the hood, driver's side, near the power brake booster.

Attached Thumbnails
Fuse box chart, what fuse goes where-w124fuse.jpg
__________________

"Buster" in the '95

Our all-biodiesel family
1995 E300D (W124) . 217,000 miles My car
1996 E300D (W210) . 296,000 miles Wife's car
Santa Rosa population 170,685 (2012)
Total. . . . . . . . . . . . 678,685

"Oh lord won't you buy me a Mercedes Benz."
-- Janis Joplin, October 1, 1970

Last edited by whunter; 01-24-2009 at 11:35 PM. Reason: attached picture
Reply With Quote
  #14
Old 01-22-2009, 02:27 PM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,014
1998 sl320 r129.063

1998 sl320 r129.063
Attached Thumbnails
Fuse box chart, what fuse goes where-sl320-r129-.063-code-1998.jpg

Last edited by whunter; 01-24-2009 at 11:36 PM.
Reply With Quote
  #15
Old 01-22-2009, 07:34 PM
Registered User

Join Date: Mar 2003
Posts: 379
Fuses of various w110,108,112 models:
Attached Thumbnails
Fuse box chart, what fuse goes where-fuse-box-190c.jpg   Fuse box chart, what fuse goes where-fuse-box-190dc.jpg   Fuse box chart, what fuse goes where-fuse-box-220-seb-coupe-b.jpg   Fuse box chart, what fuse goes where-fuse-box-220-seb-sedan.jpg   Fuse box chart, what fuse goes where-fuse-box-220b-220sb.jpg

Reply With Quote
Old 01-22-2009, 07:34 PM
Reply

Bookmarks

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On



All times are GMT -4. The time now is 06:29 AM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2014, vBulletin Solutions, Inc.
Search Engine Optimization by vBSEO 3.6.0
