#33
06-21-2012, 08:21 PM
|
||||
|
||||
|
W140 fuse charts
1997 front and rear fuse box charts
http://i21.photobucket.com/albums/b272/whunter/1997FrontFuse.jpg http://i21.photobucket.com/albums/b272/whunter/1997RearFuse.jpg 1992 front and rear fuse box charts http://i21.photobucket.com/albums/b272/whunter/1992FrontFuse.jpg http://i21.photobucket.com/albums/b272/whunter/1992RearFuse.jpg .
|
|
#35
07-02-2012, 04:36 PM
|
||||
|
||||
|
1999 C280
    .
|
|
#36
11-14-2012, 03:26 PM
|
||||
|
||||
|

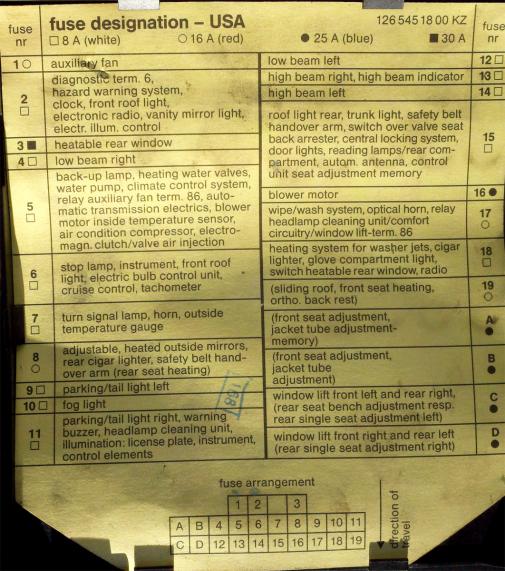

1986 300SDL
1986 300SDL
__________________
Chad 2013 Jeep Unlimited Rubicon OBK#44 "Pleasure in the job puts perfection in the work." - Aristotle (384-322 B.C.) SOLD 1985 300TD - Red Dragon 1986 300SDL - Coda 1991 - 300TE 1995 - E320 1985 300CD - Gladys 2006 Nissan Pathfinder LE 1998 Acura 3.0 CL Last edited by whunter; 11-15-2012 at 01:26 PM. Reason: added year and model to this copy
|
|
#37
11-14-2012, 04:34 PM
|
||||
|
||||
|
The Back
1986 300SDL
__________________
Chad 2013 Jeep Unlimited Rubicon OBK#44 "Pleasure in the job puts perfection in the work." - Aristotle (384-322 B.C.) SOLD 1985 300TD - Red Dragon 1986 300SDL - Coda 1991 - 300TE 1995 - E320 1985 300CD - Gladys 2006 Nissan Pathfinder LE 1998 Acura 3.0 CL Last edited by whunter; 11-15-2012 at 01:25 PM. Reason: added year and model
|
|
#38
11-15-2012, 01:25 PM
|
||||
|
||||
|
1986 300SDL
  .
|
|
#39
03-01-2013, 12:14 AM
|
|||
|
|||
|
My daughter has a 1978 280SE.Anyone have the fuse list for her car? we are having starting problems.I just replaced 2 relays trying to make sure there is fuel pressure. It would start momentarily with starting fulid so I figured it was a fuel problem.well after replacing the 2 relays now it won't start w/starting fulid.i use it sparingly..thanks for any advice.. Todd
|
|
#40
03-01-2013, 09:40 AM
|
||||
|
||||
|
Answer
Quote:
There are two possible MB part numbers for this fuse chart, each is $4.00 at the dealer. MB# 1165450700 MB# 1165450900 My best guess is you are wrestling with at least two issues now: #1. Corrosion on the female and/or male relay pins that you disturbed = sand paper is your friend.  #2. Fuel pump cut-off relay bad or corrosion refer to #1. The Fuel pump cut-off relay has been superseded to MB# 0015450705 .
__________________
ASE Master Mechanic https://whunter.carrd.co/ Prototype R&D/testing: Thermal & Aerodynamic System Engineering (TASE) Senior vehicle instrumentation technician. Noise Vibration and Harshness (NVH). Dynamometer. Heat exchanger durability. HV-A/C Climate Control. Vehicle build. Fleet Durability Technical Quality Auditor. Automotive Technical Writer 1985 300SD 1983 300D 2003 Volvo V70 https://www.boldegoist.com/
|
|
#41
03-01-2013, 12:38 PM
|
|||
|
|||
|
Thank you Whunter,I too am a Red/green fan.... So, where is the fuel pump cut off relay? The relays I replaced were in two different spots.one was in the fuse box and the other was under the dash above the brake pedal. I will do the sandpaper trick and see what happens.i'm having a friend over this weekend and I hope to "Chase some wires"and see if we can figure this out.Its a great car..as long as its running haha..Thank you,Todd
|
|
#42
03-01-2013, 01:24 PM
|
||||
|
||||
|
280SE Fuse Chart MB# 1165450800
|
|
#43
03-02-2013, 02:13 PM
|
|||
|
|||
|
Thank you again, When I checked the fuse box with a test light(key on)the #1 was empty,5,7,9,11,13,12and 14 had no power.I was hoping that one of them might have to do with fuel, But alas no....Couldn't get my helper up here so i will have to wait.I will try the sandpaper trick though.Being a inventor of sorts ...why hasn't someone come up with a wire brush built like a pipe cleaner?? would be perfect to clean out the female part of the relays.... so thanks for all the info Whunter.Happy Trails,Todd
|
|
#44
05-20-2013, 06:08 PM
|
|||
|
|||
|
1991 350 SD
Does anyone has the fuse diagram of 1991 350 SD? Thanks.
|
|
#45
05-20-2013, 10:40 PM
|
||||
|
||||
|
Answer
Quote:
 .
__________________
ASE Master Mechanic https://whunter.carrd.co/ Prototype R&D/testing: Thermal & Aerodynamic System Engineering (TASE) Senior vehicle instrumentation technician. Noise Vibration and Harshness (NVH). Dynamometer. Heat exchanger durability. HV-A/C Climate Control. Vehicle build. Fleet Durability Technical Quality Auditor. Automotive Technical Writer 1985 300SD 1983 300D 2003 Volvo V70 https://www.boldegoist.com/
|
 |
