Child Seat LATCH System Retrofit 1991 E300

My wife and I are expecting our first in a few weeks. I would like to know what is necessary for me to do to retrofit a LATCH anchoring system (top strap anchor and/or side anchors) into a 1991 E300 (W124). I've done some research and there is apparently a nut already welded for the top anchor, but I must locate some form of bolt extension kit. Does PeachParts carry this item?

Thanks
Reply With Quote
  #2
Old 03-22-2010, 01:50 PM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,357
Thumbs up Answer

Call with your VIN#, and we can answer your part questions..
__________________
ASE Master Mechanic
asemastermechanic@juno.com

Prototype R&D/testing:
Thermal & Aerodynamic System Engineering (TASE) Senior vehicle instrumentation technician.
Noise Vibration and Harshness (NVH).
Dynamometer.
Heat exchanger durability.
HV-A/C Climate Control.
Prototype Vehicle build.
Prototype Fleet Durability
Prototype vehicle instrumentation.
Technical Quality Auditor.
Automotive Technical Writer

1973 300D
1973 309D - stolen
1978 280SE
1980 240D
1983 300D
1984 190D

Last edited by whunter; 09-27-2010 at 10:55 PM.
Reply With Quote
  #3
Old 03-22-2010, 03:20 PM
Registered User

Join Date: Mar 2010
Posts: 7
Thanks a lot. Unfortunately, this appears to be a dealer only thing due to liability.
Reply With Quote
  #4
Old 03-22-2010, 04:14 PM
remotemark's Avatar
Geplatzt

Join Date: Aug 2007
Location: Philadelphia
Posts: 1,018
Quote:
Originally Posted by CaptFoo View Post
Thanks a lot. Unfortunately, this appears to be a dealer only thing due to liability.
I don't think Phil will hold you liable.
__________________
I never go far without a little Big Star

1994 E500 199/Gray 82k
84 300D (Salty) Orient Red/Palomino 141k
88 300CE (Ersatzhammer) 904/Java 163k -- Turbo Technics twin turbo kit, AMG Gen I body kit, Sportline steering box and steering wheel, Sportline/Eibach /Bilstein Sport/500E suspension, Quaife LSD in 210 mm diff case, Silver Arrow brakes.
88 300CE Brabus 3.6 199 on Black 44k
Reply With Quote
  #5
Old 03-22-2010, 04:19 PM
Registered User

Join Date: Mar 2010
Posts: 7
Based on my talk with Phil, I talked to the dealership near me. I gave him the make and model, then later the VIN. Apparently Mercedes never made an option kit available for this model and year. So, the best and only approach will be through seatbelt securing of the child seat.

Thanks for the help!

More peculiar questions coming soon!
Reply With Quote
  #6
Old 03-22-2010, 04:31 PM
remotemark's Avatar
Geplatzt

Join Date: Aug 2007
Location: Philadelphia
Posts: 1,018
Seatbelt securing works very well. There's a blue plastic and steel winch like device we use to secure the babyseats in our cars. You can get it at Babies R Us. In my (former) 94 E500, we were hit head on by an out of control Toyota Sequoia. My (then 3 year old) son's seat didn't budge.
__________________
I never go far without a little Big Star

1994 E500 199/Gray 82k
84 300D (Salty) Orient Red/Palomino 141k
88 300CE (Ersatzhammer) 904/Java 163k -- Turbo Technics twin turbo kit, AMG Gen I body kit, Sportline steering box and steering wheel, Sportline/Eibach /Bilstein Sport/500E suspension, Quaife LSD in 210 mm diff case, Silver Arrow brakes.
88 300CE Brabus 3.6 199 on Black 44k
Reply With Quote
  #7
Old 03-24-2010, 04:25 PM
DeliveryValve's Avatar
Chairman of my Benz

Join Date: Jun 2006
Location: Central California
Posts: 4,117
LATCH systems should never be retro fitted to an older car, unless the car's manufacturer has an approved LATCH kit for sale. As noted above seat belts, when properly used on the car seat, do a better job of securing the seat then the latch system. It's just missing the convenience factor.


The following link is definitely a procedure that should not be followed.

http://www.instructables.com/id/DIY-LATCH-system-retrofit/


Excerpt from the site... Again this should not be followed. In the case of this fellow, If the car has no seat belts, have seat belts installed professionally.

Quote:
Cars made after 2002 have a LATCH (Lower Anchors and Tethers for CHildren) system in place from the factory, but there aren't any kits available to retrofit older cars. My car, a 1960 Ford Fairlane 500, didn't even come with seat belts, so I decided to custom fabricate a LATCH system of my own to enable the safe transport of my daughter while avoiding the expense and hassle of getting seatbelts put in.







And this is definitely a no no!
Quote:






.
Attached Thumbnails

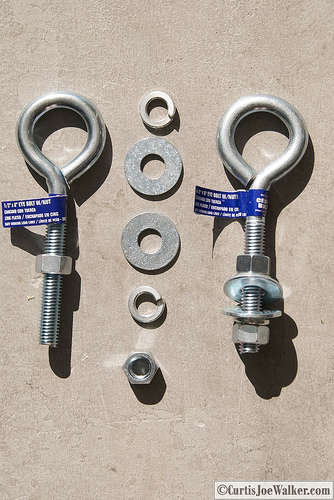

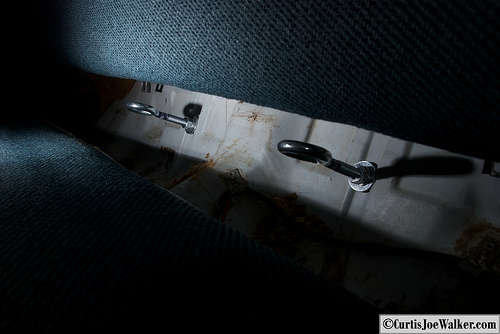

Child Seat LATCH System Retrofit 1991 E300-diy-latch-system-retrofit.jpg   Child Seat LATCH System Retrofit 1991 E300-buy-hardware.jpg   Child Seat LATCH System Retrofit 1991 E300-secure-bolts.jpg   Child Seat LATCH System Retrofit 1991 E300-modifying-car-seat-latch-belt.jpg   Child Seat LATCH System Retrofit 1991 E300-install-car-seat.jpg

__________________
1983 123.133 California
- GreaseCar Veg System


Reply With Quote
  #8
Old 03-26-2010, 12:21 PM
vwkess's Avatar
never enough time...

Join Date: Sep 2004
Location: NW Arkansas
Posts: 185
"...so I decided to custom fabricate a LATCH system of my own to enable the safe transport of my daughter while avoiding the expense and hassle of getting seatbelts put in."


ACK!!

Poor kid... hope no accidents there. Man he could of at least used bigger washers! When it comes to kids, the expense and hassle is well worth it!
__________________
Reply With Quote
  #9
Old 11-20-2010, 09:29 PM
Renntag's Avatar
User Especial

Join Date: Jul 2008
Location: Kona, Hi
Posts: 1,396
This is very interesting. I am planning to do this very same upgrade for transporting my daughter in our older Mercedes. No matter how much I crush the baby seat into the factory seat and pull the belts tight, by the time we reach our destination, her seat is loose.

i like the idea that the gentlemen used in the link above, I dont know that the eye bolts are strong enough, I plan to use a "U" bolt. I am not crazy about the small washers in that example either. The "U" bolt option requires 2 holes drilled so I feel it best to use a plate to back it up. That should be plenty strong.

No comment on the top mount. I will later share what I do for that. In our 300SDL and E300, I would use the same method as the bottom, through the steel of the hat shelf. In the 300TDT, I have to see what possibilities exist.

Why would someone put effort into adding seat belts when direct clip is the best option?
__________________
83 300TD (need rear wiper assembly dead or alive)
84 300SD Daily driver
85 300TD almost 400k miles and driven daily.
98 E300D *sold
86 300SDL *sold and made flawless 10 hour journey to new home.
Reply With Quote
  #10
Old 11-30-2010, 10:07 AM
remotemark's Avatar
Geplatzt

Join Date: Aug 2007
Location: Philadelphia
Posts: 1,018
Seat belts are safer than LATCH systems. The only thing you need is this device called the Mighty Tite which will help you tighten the belt as far as possible and keep it from getting loose. As I said in an earlier post, we were in a head on collision with a Toyota Sequoia in my 124 and my kid's seat, which was fastened by the stock seatbelt, tightened by one of these, did not move an inch.http://www.topoftheline.com/car-seat-belt-tightener.html
__________________
I never go far without a little Big Star

1994 E500 199/Gray 82k
84 300D (Salty) Orient Red/Palomino 141k
88 300CE (Ersatzhammer) 904/Java 163k -- Turbo Technics twin turbo kit, AMG Gen I body kit, Sportline steering box and steering wheel, Sportline/Eibach /Bilstein Sport/500E suspension, Quaife LSD in 210 mm diff case, Silver Arrow brakes.
88 300CE Brabus 3.6 199 on Black 44k
Reply With Quote
  #11
Old 07-28-2012, 03:05 PM
Grok this

Join Date: Oct 2007
Location: Texas
Posts: 232
I don't like his eye-bolts* either, nor do I like his caribiners; but, I understand why he would want something better than those crappy latches that come on the LATCH safety seats. Those latches suck! And they barely open up wide enough to fit on LATCH points in new cars. As far as the strength of the eye-bolts? I'd bet they are stronger than the plastic child-seat, stronger than the force needed to do tragic damage to baby, and hence, strong enough fit the intended purpose.

* Doubtless, those stickers have an anti-liability notice on them. I can't read it, but let me paraphrase what I'd expect it to read "For decoration only"
__________________
Remember, Safety Third!
'99 E300 Turbodiesel, '82 300TD, 1996 12V Cummins Turbo, '94 Neoplan - Detroit 6V92TA
