  #1
Old 09-07-2011, 07:14 AM
Registered User

Join Date: Apr 2011
Location: south africa
Posts: 250
exhaust manifold polishing

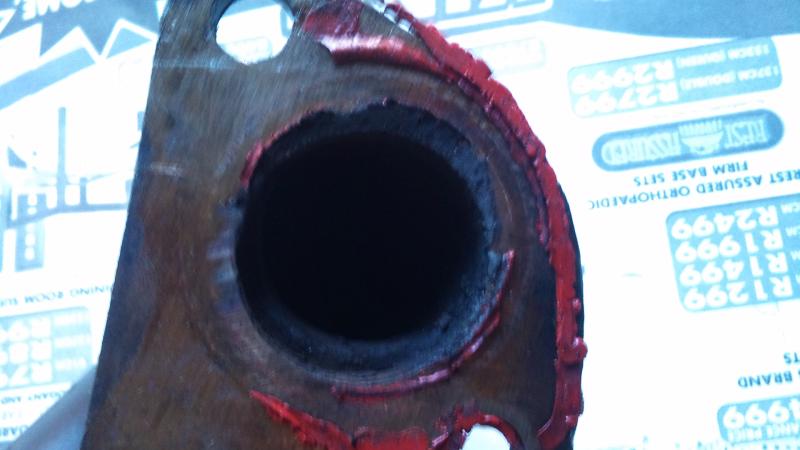

a while ago i did a 4 into one header. the smaller diameter pipes gave me good low end torque and the 4 into one design made good top end capability too. i took them off this weekend and had a look at the design. here is what i found. the welds were good on the outside but inside there was a step. this was causing a rough idle and power loss from exhaust gas reversion. i also noticed that the exhaust ports were wider than the holes in the manifold

Attached Thumbnails
exhaust manifold polishing-dsc00427.jpg   exhaust manifold polishing-dsc00426.jpg
Reply With Quote
  #2
Old 09-07-2011, 07:17 AM
Registered User

Join Date: Apr 2011
Location: south africa
Posts: 250
so i decided to polish them smooth and widen the holes with my pencil grinder
Attached Thumbnails
exhaust manifold polishing-dsc00428.jpg   exhaust manifold polishing-dsc00429.jpg   exhaust manifold polishing-dsc00430.jpg
Reply With Quote
  #3
Old 09-07-2011, 07:20 AM
Registered User

Join Date: Apr 2011
Location: south africa
Posts: 250
finished job, after spraying with high heat ceramic spray from duplicolor
Attached Thumbnails
exhaust manifold polishing-dsc00431.jpg   exhaust manifold polishing-dsc00432.jpg
Reply With Quote
  #4
Old 09-07-2011, 07:28 AM
Registered User

Join Date: Apr 2011
Location: south africa
Posts: 250
i also changed the bolts from the double screw ended type to the hex bolt type. to make it more accessible in future.
Attached Images
File Type: bmp bolt.bmp (27.6 KB, 75 views)
Reply With Quote
  #5
Old 09-07-2011, 07:30 AM
Registered User

Join Date: Apr 2011
Location: south africa
Posts: 250
i guess i only gained about 2-3 hp after i tuned in the fuel. it needed a 1/8 turn on the fuel dist after that. but i had fun and it kept me out of mischief on the weekend. hehehe
Reply With Quote
  #6
Old 10-01-2011, 02:29 AM
PanzerSD's Avatar
Schießenstern

Join Date: Jan 2006
Location: Saskatchewan Canada
Posts: 2,351
What type of vehicle is this on? Where did you get those headers?!
__________________
RIP: 80 300SD
RIP: 79 450SEL
2002 E430 4matic (212,000km)
2002 ML500 'sport'

____________________________
FACEBOOK:
PANZER450
Reply With Quote
  #7
Old 10-01-2011, 03:23 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Is this on your new 280?
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #8
Old 10-03-2011, 08:04 AM
Registered User

Join Date: Apr 2011
Location: south africa
Posts: 250
it was on my 190e 2.0. i have since sold the car. i had an exhaust shop cutom make it up for me.

if you thinking of modding the 280e exhaust, im not sure how much you will gain. the stock exhaust does a fantastic job. im talking about the euro version. the us version could do with a swop to the euro exhaust.

try germanstar.com they have the euro exhaust
