1269142215 W123 & W126 Front seat foam support inserts

NOTE:
You need to order two per seat = four per car.

MB# 1269142215
Description: Front seat foam support inserts... (AF91.10-U3101A)... application - all W123 and W126... These foam supports are inserted vertically into the front seat base coil springs to stiffen seat frame, reduce sagging and owner perceived cornering roll...
http://www.pelicanparts.com/cgi-bin/ksearch/pel_search.cgi?SUPERCAT_FLAG=Y&make=&please_wait=N&forumid=&threadid=&command=DWsearch&description=1 269142215&I1.x=8&I1.y=9



.
Attached Thumbnails
1269142215 W123 & W126 Front seat foam support inserts-seat-support.jpg
__________________
ASE Master Mechanic
asemastermechanic@juno.com

Prototype R&D/testing:
Thermal & Aerodynamic System Engineering (TASE) Senior vehicle instrumentation technician.
Noise Vibration and Harshness (NVH).
Dynamometer.
Heat exchanger durability.
HV-A/C Climate Control.
Prototype Vehicle build.
Prototype Fleet Durability
Prototype vehicle instrumentation.
Technical Quality Auditor.
Automotive Technical Writer

1973 300D
1973 309D - stolen
1978 280SE
1980 240D
1983 300D
1984 190D

Last edited by whunter; 09-21-2012 at 06:49 PM.
Reply With Quote
  #2
Old 12-07-2007, 05:06 PM
Registered User

Join Date: Jun 2006
Location: NoVA
Posts: 465
Do they make something similar for W114 seats? Thanks,
__________________
Nathan
'74 280C - gone to a new home for the finishing it deserves.
'64 356SC
'74 914 2.0
Reply With Quote
  #3
Old 12-07-2007, 08:02 PM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,357
Sorry, none found.

Sorry, none found.

Up to Chassis: 073 101422
Spring Core
MB# 1089100040 superseded by MB# 1149101022
This part is NLA

Up to Chassis: 023 008714
Spring Core
MB# 1169100040 superseded by MB# 1149101022
This part is NLA

From Chassis: 023 008715
Spring Core
MB# 1169100040 superseded by MB# 1169140314
This part is NLA

You should be able to cut down pool noodles to fit inside weak springs.
Reply With Quote
  #4
Old 01-08-2008, 04:12 PM
Registered User

Join Date: Nov 2007
Location: Lutz (Just north of Tampa) FL, USA
Posts: 327
One or a pair?

Is that part number for a pair of inserts or do I need to order two of these for one seat?
Reply With Quote
  #5
Old 01-09-2008, 11:04 AM
Fold on dotted line

Join Date: Aug 2007
Location: SE Mich
Posts: 3,086
You should be able to cut down pool noodles to fit inside weak springs.[/quote]

These do work great, many people use them
Reply With Quote
  #6
Old 01-09-2008, 11:15 AM
TheDon's Avatar
Open Discussion Moderator

Join Date: Oct 2005
Posts: 13,212
these work in a different manner.. the pool noodle fix fixes breaks in the square springs whereas this "noodle" restores the front springs and brings it back up to the proper height..

the black noodles are also of closed cell construction and will not degrade as fast as pool noodles which are open cell construction... I have seen a set go on ebay for $25.. but I think a set on ebay is 4 pieces.. I'll look into it later
Reply With Quote
  #7
Old 01-09-2008, 01:54 PM
Registered User

Join Date: Jun 2006
Location: NoVA
Posts: 465
Alas, due to none of the closed-call inserts available for my W114, I may be stuck performing the noodle trick.
I assume you have to take the seat cover off to insert...
__________________
Nathan
'74 280C - gone to a new home for the finishing it deserves.
'64 356SC
'74 914 2.0
Reply With Quote
  #8
Old 05-23-2008, 11:48 AM
Dee8go's Avatar
Senor User

Join Date: Apr 2006
Location: Arlington, VA
Posts: 7,190
Quote:
Originally Posted by fdanielson View Post
Is that part number for a pair of inserts or do I need to order two of these for one seat?
I didn't see an answer to this question, so I'll bump it up. My 300TDs's front seats feel like they may need some of these foam pieces.
__________________
" The market, like the Lord, helps those who help themselves. But, unlike the Lord, the market does not forgive those who know not what they do."- Warren Buffett

OBK #55

1998 Lincoln Continental - Sold
Max 1984 300TD 285,000 miles - Sold
The Dee8gonator 1987 560SEC 196,000 miles - Sold
Orgasmatron - 2006 CLS500 25,000 miles
2002 C320 Wagon 113,000 miles
Reply With Quote
  #9
Old 05-23-2008, 11:49 AM
Dee8go's Avatar
Senor User

Join Date: Apr 2006
Location: Arlington, VA
Posts: 7,190
Oh, I also wanted to know how hard they are to put in?
__________________
" The market, like the Lord, helps those who help themselves. But, unlike the Lord, the market does not forgive those who know not what they do."- Warren Buffett

OBK #55

1998 Lincoln Continental - Sold
Max 1984 300TD 285,000 miles - Sold
The Dee8gonator 1987 560SEC 196,000 miles - Sold
Orgasmatron - 2006 CLS500 25,000 miles
2002 C320 Wagon 113,000 miles
Reply With Quote
  #10
Old 05-24-2008, 12:49 AM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,357
Answer

Quote:
Originally Posted by Dee8go View Post
I didn't see an answer to this question, so I'll bump it up. My 300TDs's front seats feel like they may need some of these foam pieces.
NOTE:
You need to order two per seat = four per car.

It is an easy DIY.
Reply With Quote
  #11
Old 03-13-2009, 10:42 AM
Dee8go's Avatar
Senor User

Join Date: Apr 2006
Location: Arlington, VA
Posts: 7,190
Quote:
Originally Posted by whunter View Post
NOTE:
You need to order two per seat = four per car.

It is an easy DIY.
Easy. That sounds good to me. That's about my skill level . . . .
__________________
" The market, like the Lord, helps those who help themselves. But, unlike the Lord, the market does not forgive those who know not what they do."- Warren Buffett

OBK #55

1998 Lincoln Continental - Sold
Max 1984 300TD 285,000 miles - Sold
The Dee8gonator 1987 560SEC 196,000 miles - Sold
Orgasmatron - 2006 CLS500 25,000 miles
2002 C320 Wagon 113,000 miles
Reply With Quote
  #12
Old 03-13-2009, 10:50 AM
TX76513's Avatar
Platinum Member

Join Date: Apr 2003
Location: Brandon, Mississippi
Posts: 5,203
Quote:
Originally Posted by Dee8go View Post
Easy. That sounds good to me. That's about my skill level . . . .
You really don't have to pull the seat to take the bottom cover off. Pretty simple process.
__________________
BENZ THERE DONE THAThttp://www.peachparts.com/shopforum/...c/progress.gif
15 VW Passat TDI
00 E420
98 E300 DT
97 E420 Donor Car - NEED PARTS? PM ME!
97 S500
97 E300D
86 Holden Jackaroo Turbo D
86 300SDL
(o\|/o)
Reply With Quote
  #13
Old 03-13-2009, 10:54 AM
Dee8go's Avatar
Senor User

Join Date: Apr 2006
Location: Arlington, VA
Posts: 7,190
I'll put it on my Spring (pardon the pun) To Do list.
__________________
" The market, like the Lord, helps those who help themselves. But, unlike the Lord, the market does not forgive those who know not what they do."- Warren Buffett

OBK #55

1998 Lincoln Continental - Sold
Max 1984 300TD 285,000 miles - Sold
The Dee8gonator 1987 560SEC 196,000 miles - Sold
Orgasmatron - 2006 CLS500 25,000 miles
2002 C320 Wagon 113,000 miles
Reply With Quote
  #14
Old 11-23-2010, 05:39 PM
Chad300tdt's Avatar
Benzless Scoutmaster

Join Date: May 2007
Location: North Wales, PA
Posts: 4,001

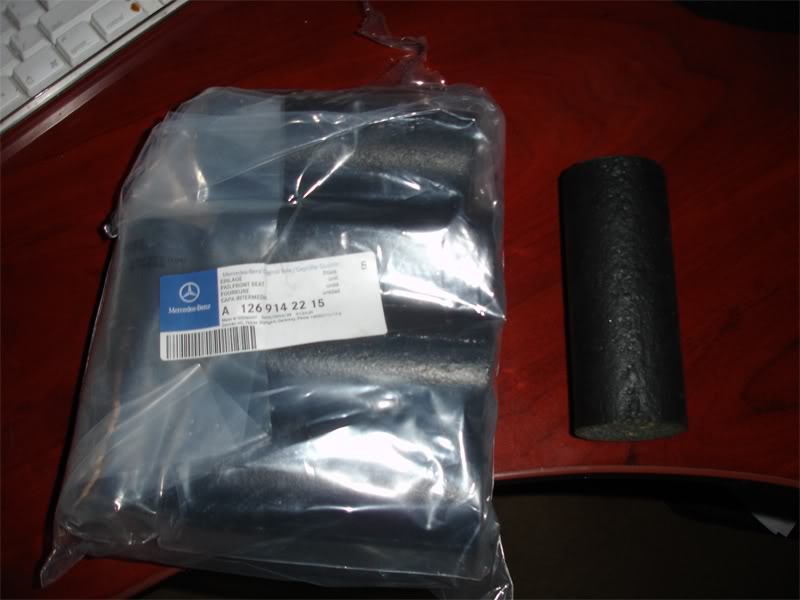

I purchased these bolsters to fix the seat sag in my 1985 300TD.


You don't need to remove the seat, just compress the seat bottom and slip the seat skin edge band out of the retaining lip. Then pull the skin up and over the seat for access to the springs.


Here you can see how the bolsters fit inside the springs.

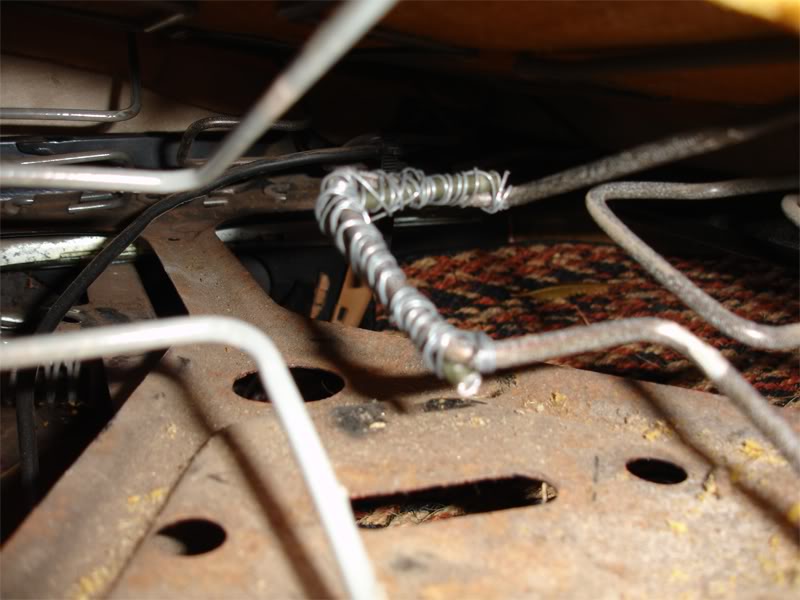

I also noticed a broken spring so I took a piece of old hydraulic line and put a piece of metal hanger inside it to make it stronger. Then I bent it 90˚ and wrapped it with bailing wire along the broken area of the spring.


After that I pulled the seat skin down and compressed the seat bottom so I could put the edge band back into the retaining lip.


I did both front seats and they feel like new seats again!! Both seats took me less than an hour.
Attached Thumbnails
1269142215 W123 & W126 Front seat foam support inserts-dsc09510.jpg   1269142215 W123 & W126 Front seat foam support inserts-dsc09511.jpg   1269142215 W123 & W126 Front seat foam support inserts-dsc09514.jpg   1269142215 W123 & W126 Front seat foam support inserts-dsc09516.jpg   1269142215 W123 & W126 Front seat foam support inserts-dsc09517.jpg

__________________
Chad
2006 Nissan Pathfinder LE
1998 Acura 3.0 CL
OBK#44
"Pleasure in the job puts perfection in the work." - Aristotle (384-322 B.C.)

SOLD
1985 300TD - Red Dragon
1986 300SDL - Coda
1991 - 300TE
1995 - E320
1985 300CD - Gladys

Last edited by whunter; 06-27-2011 at 07:51 PM. Reason: attached pictures
Reply With Quote
  #15
Old 06-27-2011, 07:32 PM
Jangalls's Avatar
Registered User

Join Date: Jun 2011
Location: WNC
Posts: 9
^^^^^Thanks for posting pictures and a nice little how to. I'll be doing this ASAP. My drivers seat causes me to have a pretty serious lean going on if I dont have a pillow!
