Help replacing '86 300E distributor cap - where does the O-ring go???
I bought some maintenance items for my wife's 86 300E, including a new set of wires, distributor rotor, distributor cap, and distributor cap O-ring seal.
When I removed the old cap last night, there was no O-ring anywhere. The new O-ring I bought appears to be sized so as to fit in the bottom of deep circular groove on the mating face of the new cap. Is that where it goes? I'm concerned that in that location, it won't allow the cap to sit down all the way on the backing plate... does this matter? As you can see, I'm a newbie at this. Any help would be appreciated. Thanks! Mika |
#2
|
|||
|
|||
it goes in that groove.
__________________
2005 Mercedes C230k sport sedan, 6 speed 1987 Porsche 924S - 968-engined track car |
#3
|
||||
|
||||
M103 Oil leak or burning?

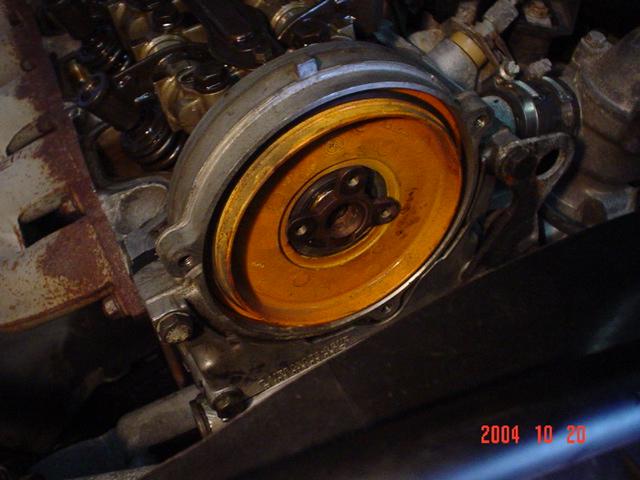

Pic 19 about 1/2 way down the page shows the O-ring on the phenolic cover behind the rotor.
__________________
Regards Warren Currently 1965 220Sb, 2002 FORD Crown Vic Police Interceptor Had 1965 220SEb, 1967 230S, 280SE 4.5, 300SE (W126), 420SEL ENTER > = (HP RPN) Not part of the in-crowd since 1952. |
#4
|
|||
|
|||
I'm not sure I see pic 19... can you help me find it? I don't see it in the thread you mention...
Thanks! Mika |
#5
|
|||
|
|||
I think this is it.
__________________
-Marty 1986 300E 220,000 miles+ transmission impossible (Now waiting under a bridge in order to become one) Reading your M103 duty cycle: http://www.peachparts.com/shopforum/831799-post13.html http://www.peachparts.com/shopforum/831807-post14.html |
#6
|
|||
|
|||
Thanks... but where's the O-ring? I don't see one in that pic...
Mika |
#7
|
||||
|
||||
The O-ring is around the outside of the outer extended ring and is visible in the pic as a black ring. It's used to keep dust and moisture from getting into the distributor cap and causing shorts. Look carefully at the pic.
