#1
|
|||
|
|||
barnyard find....help identify seats
hello all, RickM recommended this bbs for the info i need.

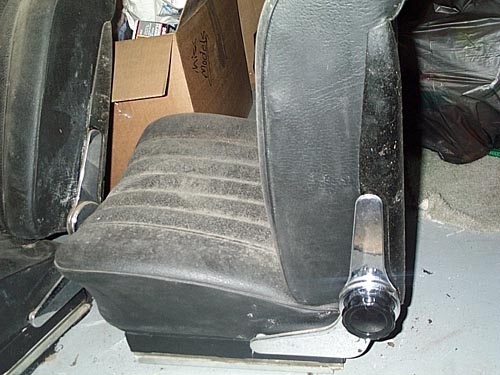

i have aquired a front set of seats from an early MB. i don't really have a use for these as i have a slight porsche and mid 80's turbo dodge addiction. these seats were in storage in an attic since 1975 at the latest.......30 years...nice they are covered in dust and such but are cleaning up VERY nicely, they should be totally "refurbished" by this weekend.....but things are looking very good. does MB put part numbers on seats? and if so where will i find them? here are a couple dirty pics.....just like i found them (after i got them home) thanks in advance, i'll offer them to this board before they hit ebay "for the help" |
#2
|
||||
|
||||
Hard to tell but they look mighty similar to the seats in my W108.
__________________
Mike Tangas '73 280SEL 4.5 (9/72)- RIP Only 8,173 units built from 5/71 thru 11/72 '02 CLK320 Cabriolet - wifey's mid-life crisis 2012 VW Jetta Sportwagon TDI...at least its a diesel Non illegitemae carborundum. |
#3
|
||||
|
||||
They also look alot like 114 seats. Any possibility they might be 107's?
__________________
It is a truism that almost any sect, cult, or religion will legislate its creed into law if it acquires the political power to do so. Robert A. Heinlein 09 Jetta TDI 1985 300D |
#4
|
|||
|
|||
They look similar to the 107 seats but without an armrest. There must be a way to identify.
Perhaps a business that sells reupholstery/seat covers might know. Any suggestions?
__________________
Rick '85 380 SL (sold) '85 Carrera Flatnose '71 280 SL Signal Red/Cognac |
#5
|
||||
|
||||
Seats
i'm pretty sure they are 107's.
set them up with the chrome facing out. on the driver's seat on it's right side push in and see if you can feel the nut that is used for the arm rest. only question i would have about being a 107 did the sedans have this type in 70 to say 74. i don't know if the seat were interchangeable.
__________________
Thanks Much! Craig 1972 350sl Red/Blk 117k 1988 420sel charcoal/Blk 140k 1987 420sel gold/tan 128k See My Cars at:http://mysite.verizon.net/res0aytj/index.html Pound it to fit then Paint it to match! There is only First Place and Varying degrees of last! Old age and deceit will overcome Youth and Enthusiasm every time! Putting the square peg in the round hole is not hard... IF you do it fast enough! Old enough to know better but stupid enough to do it anyway! |
#6
|
||||
|
||||
I think a shot of the seat backs would help. I don't think the 107's had the cargo netting. Also, both seat shots are showing the inboard side of the seat. On my 108 the outside edge has a knob for adjusting the recline, I imagine they all did though.
__________________
Mike Tangas '73 280SEL 4.5 (9/72)- RIP Only 8,173 units built from 5/71 thru 11/72 '02 CLK320 Cabriolet - wifey's mid-life crisis 2012 VW Jetta Sportwagon TDI...at least its a diesel Non illegitemae carborundum. |
#7
|
|||
|
|||
"does MB put part numbers on seats? and if so where will i find them?"
Look underneath the seat bottom, between the horsehair pad and the spring. There should be a tag with some codes on it, like the color, the manufacturer's logo/name if outsourced by MB, and possibly a part number.
__________________
1986 560SL 2002 Toyota Camry 1993 Lexus |
#8
|
|||
|
|||
seats
They look like 190 SL seats
|
#9
|
|||
|
|||
thanks for the replys guys, i appreciate it.

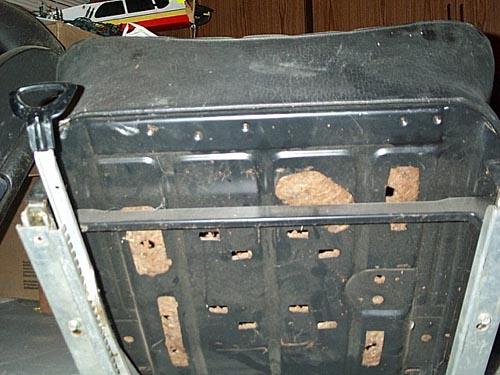

here are more pics, all of the same seat. |
#10
|
|||
|
|||
that's the stuff donbryce, here's the info off the tag of what i could make out .
f s fehrer robhaarspinnerer gimmihaar und schaun...... 10-dec-1968 faHRERKISSEN 115 914 10 08 |
#11
|
|||
|
|||
I just looked at my '85 SL (107 chassis) seats and while they look similar they are different. I don't have the double seam on the headrest and I have six ribs of perforated leather in the center as opposed to five.
Add: I just Emailed World Upholsery. Perhaps they'll chime in with their expertise.
__________________
Rick '85 380 SL (sold) '85 Carrera Flatnose '71 280 SL Signal Red/Cognac Last edited by RickM; 03-03-2005 at 10:22 AM. |
#12
|
|||
|
|||
I would say they are from the late '60's and early '70's W114/115 chassis, such as the 220D, and confirmed by the part number. They look identical, except for the headrest, to the seats used in the last W110 models (200, 200D), and I have seen seats like this used in the early 1970's cars.
|
#13
|
||||
|
||||
OK the obvious, where is the car they came from?
__________________
Ron 2015 Porsche Cayman - Elizabeth 2011 Porsche Cayman - Bond,James Bond Sadly MERCEDESLESS - ALways LOOKING ! 99 E320 THE Queen Mary - SOLD 62 220b - Dolly - Finally my Finny! Sadly SOLD 72 450SL, Pearl-SOLD 16 F350 6.7 Diesel -THOR 19 BMW X5 - Heaven on Wheels 14 38HP John Deere 3038E Tractor -Mean Green 84 300SD, Benjamin -SOLD 71 220 - W115-Libby ( my first love) -SOLD 73 280 - W114 "Organspende" Rest in Peace 81 380 SL - Rest in Peace |
#14
|
|||
|
|||
seats
they look just like my buddy's 1956 SL190 without the headrest
|
#15
|
|||
|
|||
no idea what they came out of or where that car may be.....the build tag says 10-dec-1968, so i'm guessing they're from a 69.
what are these seats worth? providing they're in "perfect" shape, all the mechanicals are perfect including the seatback adjuster, still working on cleaning up the dust but so far perfect. |
