fuel system part ID ?????

Hey Everyone,

So after smelling fuel in the garage for the last week, i finally find the source,
there are 2 pods attached to the fuel distributor, with fuel lines running in and out of them, on my 83, 380SEC. Are these the accumulators?? they both have the same bosch #'s 0280161012, and both appear to be seeping fuel past the diaphagram and into the vent line and then into my crankcase, with some seeping out where the vent lines meet each other. The pictures i have found of accumulators do not look like mine, and the local parts house says the car only has 1 accumulator. Cant check with the dealer till monday. Any ideas out there????

Thanks in advance, R.

Reply With Quote
  #2
Old 05-14-2005, 07:30 PM
Ta ra ra boom de ay

Join Date: Jun 2004
Location: Pittsburgh
Posts: 1,915
Is this it?
http://catalog.eautopartscatalog.com/mercedesshop/sophio/quote.jsp?header=header.jsp&footer=&product=0280161012&partner=mercedesshop&baseurl=http://catalog.peachparts.com/&clientid=catalog.mercedesshop&cookieid=1FX0MB1RS1IP15QKXS
__________________
-Marty

1986 300E 220,000 miles+ transmission impossible
(Now waiting under a bridge in order to become one)

Reading your M103 duty cycle:
http://www.peachparts.com/shopforum/831799-post13.html
http://www.peachparts.com/shopforum/831807-post14.html
Reply With Quote
  #3
Old 05-14-2005, 07:34 PM
carson356
Guest

Posts: n/a
pressure regulators

those are not accumulators, but rather fuel pressure regulators, they are mb# 000-078-06-92 fast lane has them for about $102.00 see attached pictures

Last edited by carson356; 02-05-2006 at 02:33 PM.
Reply With Quote
  #4
Old 05-14-2005, 07:37 PM
Registered User

Join Date: May 2004
Location: nevada
Posts: 33
Thats is thanks for the help

R.
Reply With Quote
  #5
Old 05-14-2005, 07:42 PM
Registered User

Join Date: May 2005
Posts: 5
Here you go, 68 each:
Pressure regulators
Reply With Quote
  #6
Old 05-14-2005, 07:55 PM
carson356
Guest

Posts: n/a
fastlane

Quote:
Originally Posted by Corbin Dallas
Here you go, 68 each:
Pressure regulators

we should try to direct parts buyers to fastlane, that is what helps keep this great site alive
Reply With Quote
  #7
Old 05-14-2005, 08:02 PM
Moderator

Join Date: Mar 2000
Location: Gainesville FL
Posts: 6,844
The fuel pressure regulator on a K-jet w/lambda system is inside the fuel distributor. The devices shown in the system part picture are dampeners. They look like fuel pressure regulators used on electronic fuel systems but they are NOT.
__________________
Steve Brotherton
Continental Imports
Gainesville FL
Bosch Master, ASE Master, L1
33 years MB technician
Reply With Quote
  #8
Old 05-14-2005, 08:34 PM
carson356
Guest

Posts: n/a
pressure regulators

Quote:
Originally Posted by stevebfl
The fuel pressure regulator on a K-jet w/lambda system is inside the fuel distributor. The devices shown in the system part picture are dampeners. They look like fuel pressure regulators used on electronic fuel systems but they are NOT.
Seve
mercedes refers to them as pressure regulators, the item you mention is the supply pressure regulator or also known as the primary circuit pressure regulator, what we are discussing here is the system working pressure regulators. See Pictures.
what you refer to is the part number in picture #3 thanks for your input

Last edited by carson356; 02-05-2006 at 02:33 PM.
Reply With Quote
  #9
Old 05-14-2005, 08:52 PM
Moderator

Join Date: Mar 2000
Location: Gainesville FL
Posts: 6,844
Its just too bad there are so many poor translations in the parts book. You will be better off knowing how it works than reading parts books. If you surmise that it is a fuel pressure regulator, just what pressure would you have it regulate. Look at the diagram. It is in the fuel return after the frequency valve. About all it can do there is be a diaphram that acts as a regulator of pressure pulse noise. So, yes it is a diaphram and it is a regulator but the translator just wasn't a tech. It regulates pulses that cause noise.
__________________
Steve Brotherton
Continental Imports
Gainesville FL
Bosch Master, ASE Master, L1
33 years MB technician
Reply With Quote
  #10
Old 05-14-2005, 09:15 PM
carson356
Guest

Posts: n/a
not a tech??

Quote:
Originally Posted by stevebfl
Its just too bad there are so many poor translations in the parts book. You will be better off knowing how it works than reading parts books. If you surmise that it is a fuel pressure regulator, just what pressure would you have it regulate. Look at the diagram. It is in the fuel return after the frequency valve. About all it can do there is be a diaphram that acts as a regulator of pressure pulse noise. So, yes it is a diaphram and it is a regulator but the translator just wasn't a tech. It regulates pulses that cause noise.
steve i don't want to turn this in to a pissing contest, but i have been exclusively repairing mercedes cars for the past 15 years, i know the functions of the units, if i have offended you i appologize, i would believe that mercedes know what to call there own parts, they do sometimes give them som odd names. most pressure regulators are in the fuel return system, look at the 104 ME engine as an example, is the pressure regulator in the return or supply?
Reply With Quote
  #11
Old 05-14-2005, 10:10 PM
Moderator

Join Date: Mar 2000
Location: Gainesville FL
Posts: 6,844
There is no offense, you are just wrong. I love a good technical arguement. You know how it works, tell me what pressure they regulate and the effect on the system. I told you what I think. I hope your excuse for not knowing how it works is that they had already thrown that system away before you started working on MBs. you see I was working for MB when they brought out the first K-jet and I have been in constant touch every day since they did.

But it doesn't matter who did what. They are what they are and I have expalined their function as I understand the system. So it is your turn to explain to me what your concept of their purpose is. Pay close attention to their location in the system its a hint that it is in the fuel return where pressure plays no part of the system. If you have a good arguement you can teach me something, but just reading a poor translation from a parts book don't get it for me. I'm more interested in what the service manual says they do.
__________________
Steve Brotherton
Continental Imports
Gainesville FL
Bosch Master, ASE Master, L1
33 years MB technician
Reply With Quote
  #12
Old 05-14-2005, 10:35 PM
Moderator

Join Date: Mar 2000
Location: Gainesville FL
Posts: 6,844

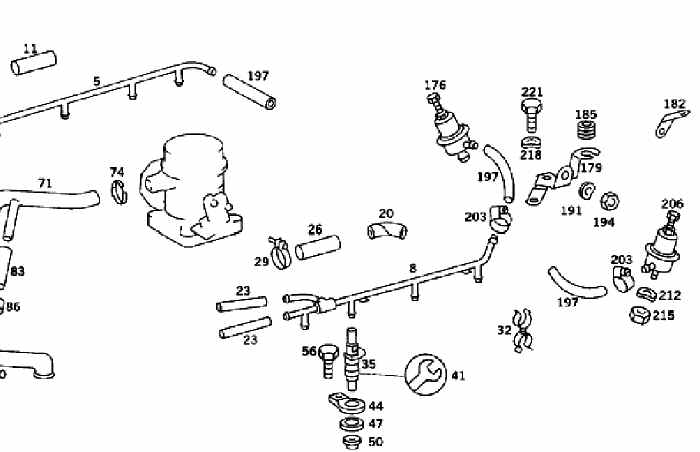

OK, follow this. See what you make of the two parts in this system D-jet. Part 176 and part 206. If you know that system, hopefully you know that one is a pressure regulator and the other is a dampener (diaphram). Now if you know your MB part numbering system you will notice that the diaphram (not the regulator) is a similar number (000 078 xx 92) to the parts you wish to call regulators.
Attached Thumbnails
fuel system part ID ?????-aapict1.jpg   fuel system part ID ?????-aapict.jpg
__________________
Steve Brotherton
Continental Imports
Gainesville FL
Bosch Master, ASE Master, L1
33 years MB technician

Last edited by stevebfl; 05-14-2005 at 10:46 PM.
Reply With Quote
  #13
Old 05-15-2005, 02:58 AM
carson356
Guest

Posts: n/a
return

it controls fuel pressure by controlling the amount that returns to the tank, even the D-jet is in the return side of the fuel rail. the d-jet is adjustable where the cis is not
Reply With Quote
  #14
Old 05-15-2005, 09:53 AM
Moderator

Join Date: Mar 2000
Location: Gainesville FL
Posts: 6,844
Fuel pressure regulators are of course attached to the return, but they start in the pressure side. This is basic *****. They control pressure by dumping to the return. Just what purpose can a regulator accomplish with both sides hooked to the fuel return.

If we are to have a technical discussion you will have to state a technical theory of operation that fits your stated concept. I have stated that the fuel from the frequency valve is dumped through the diaphram into the return line. There is no significant pressure there. The frequency valve IS a pressure regulator. It regulates the lower chamber pressure by dumping it. By lowering the pressure the mixture is richened.

There are two other pressure regulators in that K-jet w/Lambda system. The first IS the true system pressure regulator. It is internal to the fuel distributor and regulates by dumping the excess into the return. The system pressure flows through a restricting oriface to the top of the metering piston and is re-regulated to a lower control/warm-up pressure. This pressure opposes the piston and leans out the mixture by resisting movement of the piston. It also regulates pressure by dumping the excess to the return. All of this dumping could buzz the steel lines since it would be pulses of fuel at velocity. Thus they have installed dampeners to keep the vibrations down.

The above is a simple theoretical description of the pieces you wish to call pressure regulators and the real regulators that DO exist in the system. I've worked on this system designed that way and taught that way by MB and Bosch since it came out in Volvos in 1979 and MB in 1980.

I await such a theoretical description as you see it using pressure regulators in the return side of the system. The only way they could regulate any pressure would be to defeat the operation of the real regulators that are before them in the system. Since the frequency valve regulates pressure just what do you suppose takes place between it and what you wish to call a regulator.

What do you say about the obvious part number relationship to the diahram dampener (not the regulator) I stated above in the D-jet system? Or do you claim that both parts 176 and 206 are pressure regulators. Your part book translation don't work there. You have been mislead by a poor translation in a parts book. The answer is in the actual design. Propose to us the system as you see it using two more pressure regulators, besides the system, control, and lower chamber pressures.
__________________
Steve Brotherton
Continental Imports
Gainesville FL
Bosch Master, ASE Master, L1
33 years MB technician
Reply With Quote
  #15
Old 05-15-2005, 10:49 AM
carson356
Guest

Posts: n/a
pressure regulators

Quote:
Originally Posted by stevebfl
Its just too bad there are so many poor translations in the parts book. You will be better off knowing how it works than reading parts books. If you surmise that it is a fuel pressure regulator, just what pressure would you have it regulate. Look at the diagram. It is in the fuel return after the frequency valve. About all it can do there is be a diaphram that acts as a regulator of pressure pulse noise. So, yes it is a diaphram and it is a regulator but the translator just wasn't a tech. It regulates pulses that cause noise.
so if all they do is dampen fuel pressure noises as you said in an ealier post then he could remove them and bypass the lines and would suffer no performance or driveability issues and save a few hundred dollars?

Reply With Quote
