#1
|
||||
|
||||
What's the name of this part?
Hi everyone
I've a Mercedes E220, European, Model 1993. There's a part that the mechanic said I need to change since the engine turns off if I don't keep pressing on the fuel paddle. Honestly, I always prefer to check with this Forum before listening to any mechanic since there're really professional people here. I've attached pictures for this part. I've in fact 3 questions: 1) Does this part cause the above symptom? 2) What is the name of this part? 3) Does anyone know an estimate for such part? 4) Does anyone know a website that sells this part? I would appreciate any feedback The chase number of my car is WBD123021B939455 |
#2
|
|||
|
|||

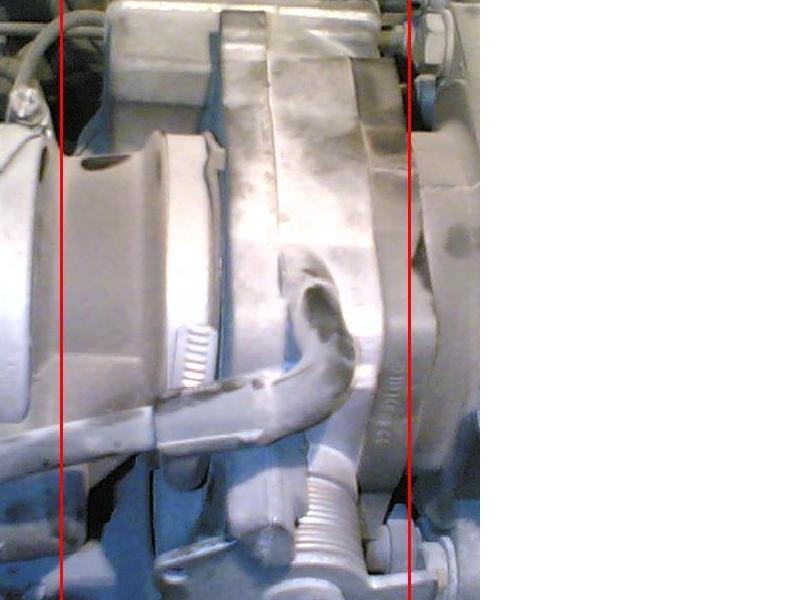

that is the throttle actuator, i was going to look up some information for you, but it appears you have provided an incorrect chassis number, the E220 is not a 123 chassis, but rather a 124 or 210.
Last edited by carson356; 02-21-2006 at 05:05 PM. |
#3
|
||||
|
||||
Dear Carson
You are right . It's 124 and not 123. This is what's written in my car registration Maybe there's difference between US cars and European cars? |
#4
|
|||
|
|||
Quote:
|
#5
|
||||
|
||||
Hi Carson
I've attached the 2 pictures for my car along with picture of the engine. I hope this will give you better idea. Note: Someone told me that I should not wash my car engine. So, is this true? And if there's a way to wash car engine, what is it? |
#6
|
||||
|
||||
Here is a pretty good resource on engine detailing:
http://www.peachparts.com/diy/detailing/detailing.php?location=25 As long as you don't spray water directly at the electronics you should be fine. The m111 (like the m104) doesn't have a distributor to worry about so that helps.
__________________
Daily Driver: 02 E430 4MATIC In the family: '03 E500 // '04 ML500 // 64 220SE |
#7
|
|||
|
|||
Quote:
it is a 124.062 |
#8
|
||||
|
||||
Thanks for everyone's feedback on this problem
While I was doing research, I learned that early 1990 models especially engine 124 had problems with Throttle actuator as well as harness wiring http://mbca.cartama.net/showthread.php?p=37810 So, I was wondering how can I check if harness wire is aging or about to fail? Many thanks to you all |
#9
|
|||
|
|||
Quote:
|
#10
|
||||
|
||||
Thanks Carson
Execuse me ignorance in these car issues , but what should I expect to see when I cut into the harness? Any pictures available? |
#11
|
|||
|
|||
the wire insulation will be broken, and metal wires exposed
|
#12
|
|||
|
|||
yjamous, here's a link that has a picture (Photo 2) of the brittle wiring insulation. The wiring in my car looked the same before replacement.
__________________
95 E320 Cabriolet, 159K |
#13
|
|||
|
|||
yjamous said: 4) Does anyone know a website that sells this part?
_________________________________________________________________ Click on the "Buy Parts" heading at the top of this page.....you should find what you need right there.
__________________
1986 560 SEL (159K miles) |
