Hi everybody.
Now it is my turn to change the evaporator of my 1992 300TE.
Recent success posted here has encouraged to do the job myself (thank you!).
I have all the parts ready but have just reallized that on my Nylog bottle it writes "HFC compatible". However, my system contains R12. I have learned from ackits.com that there is a R12-specific Nylog version as well.
My question: Does this difference matter? Do I need to re-order a R12-specific Nylog?
Second question: Is mineral compressor oil stil the way to go with R12 or is there some synthetic upgrade that can be recommended?
Please feel welcome to add your experience and advice.
Thanks, Bruno

__________________
_
1992 300TE 160 kmiles

That's the red cap Nylog, correct? I've used it on R-134a, R-12, and some blends I won't mention. Never experienced a problem. I say go for it.

There are synthetic a/c oils for R-12. Don't know that they offer any kind of improvement over good old mineral oil. The main advantage is they are compatible with both R-12 and R-134a, which permits a/c shops to stock only one oil.

From the DIY perspective you can run the system with R-134a for a couple of weeks/months to insure there are no slow leaks before risking $75 or more of R-12.

My $.02,

- JimY

JimY
Thank you. I'll go ahead and use that Nylog I have (it has a blue label).
Also I will stay with mineral oil. And before the final R12 charge, I might use the "blends I won't mention here" to check for slow leaks.
Bruno

__________________
_
1992 300TE 160 kmiles

Hi

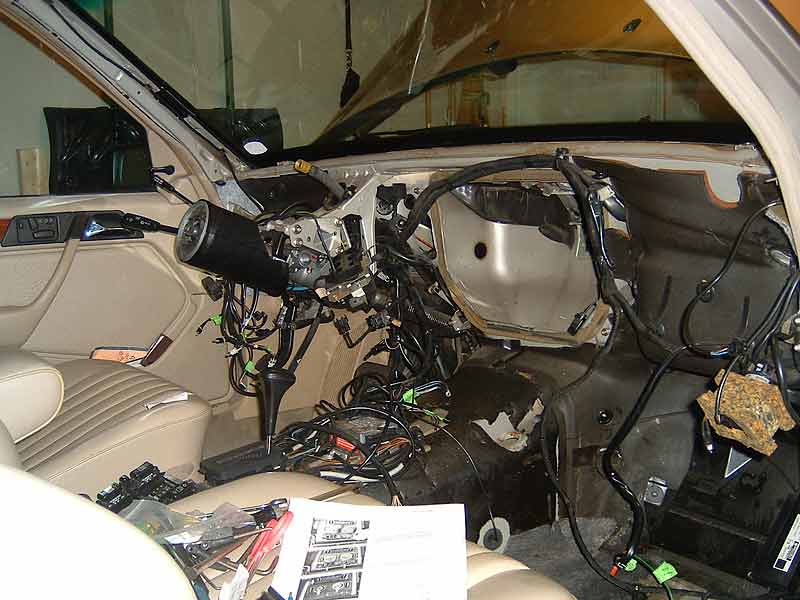

It took me two full days to do the evaporator job. The old evaporator was definiately leaking (see also pic). Also, quite a few vacuum elements had ruptured membranes. I replaced all of them. All the insulation foam was degraded. I put some new one that I got from Home Depot. The system holds vacuum and charge fine, cooling efficiency is much better.
Thanks, Bruno

Attached Thumbnails



__________________
_
1992 300TE 160 kmiles

How did you know your evaporator was bad? I've got my dash apart to replace vacuum pods & am now wondering should I tackle evap too.

R

The A/C lost refrigerant, a full charge did last about 4 months. I added dye and could later find it in the condensate that came from the evaporator. Also, I could smell refrigerant in the cabin.
Bruno

__________________
_
1992 300TE 160 kmiles

You picture confirms that the orginal evaporator is aluminum. I saw a picture of a replacement evaporator for a w124 that was copper. Was your replacement copper or aluminum?

I know this is bad enough as it is but wouldn't it be worth taking the front seats out to get more room to lay as you work ?

__________________
JD

The replacement was made entirely of aluminum. Brand is ACM, made in Germany.
I am not sure about the seats - my guess is that it is more comfortable for most of the job to sit on the seats instead of laying on the floor.
Bruno
