Exclamation 1995 E300d evaporator core, reattaching issue

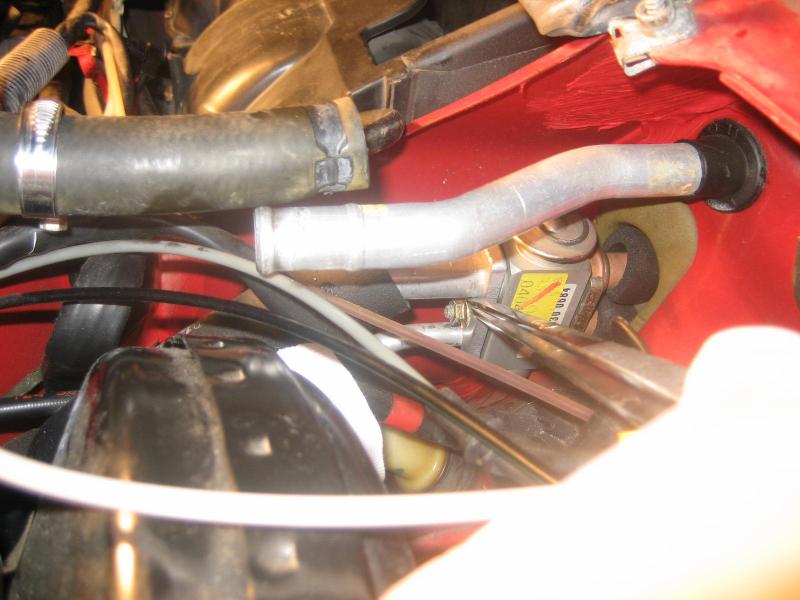

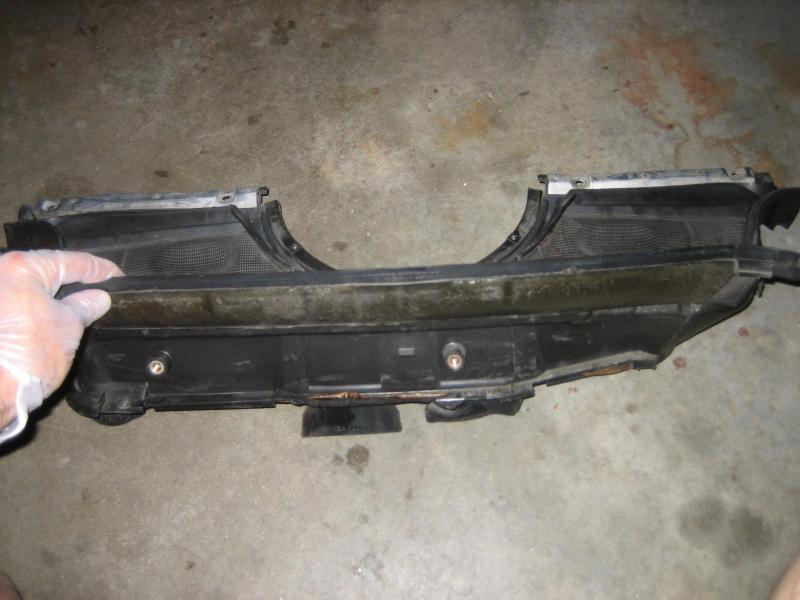

I have worked on my 300d and replace the evaportaor core ALL day long. I put the core back in and the dash is up... I can not figure out how to re-attach the evaporator core tubes that go through the firewall and attach back in the engine area. It takes all I have to just reach the 2 conecting points and stick them up to the tubes (using a screw driver and pliers) coming into the engine area from the core. Then some how in the minature area I am suposed to screw it together. I can't see any possible way to get a screw driver in that space? Any ideas? Do I need to take some of the engine apart in order put one screw in? I am about to go crazy!

Thanks for any ideas.

Reply With Quote
Old 02-12-2012, 06:02 PM
Registered User
Join Date: May 2006
Posts: 590

Are you talking about attaching the evaporator to the expansion valve??
Reply With Quote
Old 02-12-2012, 10:09 PM
New mercedes E300d owner
Join Date: Feb 2012
Posts: 4
I had a friend come over

I have another friend mechanic with small hands come over and he reached down and attache the 2 pipes coming thru into the engine area.

We were able to put the whole car back together!!! 18+ hours. What a crazy job. Funny thing is this is the first repair I have ever done to a car. I truly know nothing about cars. My friend was amazing to give up his entire weekend to help me.

Thanks for the author of this blog, the meticulous descriptions and pictures were invaluable! What a great job you did! I owe you

Reply With Quote
Old 02-12-2012, 10:14 PM
New mercedes E300d owner
Join Date: Feb 2012
Posts: 4
The only thing couldn't re-attach was the allen bolt that opens the air flow to the center vent. I guess I was supposed to attach that before dash and counsel was put back together. The bolt won't reach the connection... Oh well. I do have an amazing appreciation for how well made these Mercedes cars are made - so many tricky little bolts and clips.

Only time will tell if everything is sealed with no leaks! I pray it is!
Reply With Quote
Old 02-13-2012, 09:41 AM
Registered User
Join Date: Jan 2004
Location: Jacksonville, FL
Posts: 474
The bolt won't reach the connection...
You need to use a hook tool to bring the "connection" (female threaded receptacle) to the allen headed bolt and, while holding the connection with the hook tool, start threading the bolt in the connection by turning the bolt with your allen wrench. It may take a couple of times but I assure you it can be done with the dash in place. Mark
Reply With Quote
Old 02-13-2012, 10:33 AM
Registered User
Join Date: Mar 2010
Location: Los Angeles, CA
Posts: 189
great job!
Reply With Quote
Old 02-13-2012, 02:17 PM
Unofficial wormcan opener
Join Date: Dec 2005
Location: Ashland, MA
Posts: 2,602
I'm trying to find the part number for the fog light indicator bulb. In post number 1 he lists 2 numbers. I can't get either of these to work. The EPCnet number is 14 digits long, typically the epc numbers are 10 digits long and in this sequence 124 xxx xx xx. Can anyone help decipher these number?

___N. lights
______1. Nozzle lights and light for illumination of headlight control N000000001061 x 4 (EPCNet 124.290 54 395 158. Also A0008250094) “air nozzle lighting and rotary switch lighting”
______2. Foglamp indicator bulb: A0025440194 (EPCNet 124.290 54 640 11)

The one for the fog light indicator is in the center of the switch shaft, you pull off the knob and it should be right there in the middle behind the orange "dot" in the knob. EPC 124.128, group 54, subgroup 640, callout 11, part # 002-544-01-94.

Thanks Dave
1987 300TD 309, xxx 2.8.2014 10,000 mile OCI

Be careful of the toes you step on today, as they may be connected to the ass you have to kiss tomorrow. anonymous

“Be who you are and say what you feel, because those who mind don’t matter, and those who matter won’t mind.” Dr. Seuss

Last edited by Bio300TDTdriver; 02-29-2012 at 04:27 PM.
Reply With Quote
Old 02-17-2012, 03:59 PM
New mercedes E300d owner
Join Date: Feb 2012
Posts: 4
1995 300D dash lights

I just replaced my evaporator core. I did finally get the extension valve reconnected - ah!

The problem I just found out is that none of my dash lights work at all? I have know idea why... I have No lights to any of my dash, or even the gear shifter (automatic). Anyone know where I should look to see what I need to plug in? I don't want to have to take the whole dash and counsel back out unless there is absolutely no other opption. Any ideas?



ps. AC works great!
