How do I know whether 85 300D Injection Pump has Locking Screw Feature?

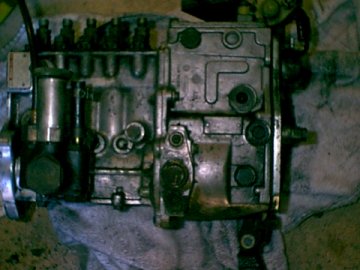

Please see the attached picture. Can anyone tell me whether this fuel pump has the locking screw feature?

I am confused and in the middle of engine refurbishment, parts all over the place , and grease all over the furniture keyboard and PC.
Attached Thumbnails
How do I know whether 85 300D Injection Pump has Locking Screw Feature?-fuelpump1.jpg
Reply With Quote
  #2
Old 09-06-2001, 01:19 PM
Coming back from burnout

Join Date: Jun 1999
Location: in the Pacific Northwest
Posts: 2,274
here is another picture
Attached Thumbnails
How do I know whether 85 300D Injection Pump has Locking Screw Feature?-fuelpump.jpg
Reply With Quote
  #3
Old 09-06-2001, 06:47 PM
Moderator

Join Date: Mar 1999
Location: Tucker, Ga USA
Posts: 12,153
The large plug is where the locking pin goes!! YES you can lock pump & set timing at 15degATDC on this pump. Tool part number 601-589-05-21-00.
__________________
MERCEDES Benz Master Guild Technician (6 TIMES)
ASE Master Technician
Mercedes Benz Star Technician (2 times)
44 years foreign automotive repair
27 Years M.B. Shop foreman (dealer)
MB technical information Specialist (15 years)
190E 2.3 16V ITS SCCA race car (sold)
1986 190E 2.3 16V 2.5 (sold)
Retired Moderator
Reply With Quote
  #4
Old 09-06-2001, 11:05 PM
Senior Member

Join Date: Apr 2001
Location: Beech Island, S.C.
Posts: 468
I believe the 85 models use 24 degrees after TDC.
Reply With Quote
  #5
Old 09-07-2001, 08:28 AM
WDurrance
Guest

Posts: n/a
Quote:
Originally posted by Stan Pittman
I believe the 85 models use 24 degrees after TDC.
It all depends on what method of "timing" you choose. The 15 degree figure is correct for the "lock screw" method and 24 degrees is correct for the other (drip-time, or high-pressure fuel flow) method of timing the pump.
Regards,
Randy D.
