1996 E320 AC Vents dont seem to respond well, airflow weak despite change in fan spd

Hi,
I am kind of stuck on trying to figure out this problem and welcome any ideas.
I have a 1996 E320 Mercedes. On the ac control panel, when I adjust the fan speed to blow more air, the airflow doesnt seem to change very much even though you can hear the fan going faster. Also there is a button with 3 arrows I think, the up arrow I think means for air to blow up, the side arrow is for air to blow in the car and the bottom arrow for the airflow to be directed downwards. Changing the settings on this button seems to have little to no effect on the air coming into the car, especially with the vents that blow horizontally into the cab. I was wondering, what coud be causing this? Are there damplers controlled by acutators that control the airflow? Are they powered by vacuum and could there be a vacuum leak that is causing this problem? I do not notice any hissing sound when it runs.
Thanks in advance, I look forward to hearing any thoughts about his.

__________________
1996 E320
2000 C230 Kompressor
1988 190e 2.3 - 225K miles, owned for 7 years. I cannot say enough good things about this car. Very well built, even at 225 it ran like new.
Reply With Quote
  #2
Old 01-17-2010, 12:08 PM
Cal Learner's Avatar
Registered User

Join Date: Aug 2006
Location: Marysville, CA
Posts: 781
If the fans in the "squirrel cage" are installed backwards, it'll do what you're describing: lots of fan noise but very little airflow. Has the blower fan been worked on or replaced recently? If so, it's worth a shot to find out if the cages were reinstalled correctly.
__________________
1988 California version 260E (W124)
Anthracite Grey/Palomino
Owned since new and still going strong and smooth
MBCA member

Past Mercedes-Benz:
1986 190E Baby Benz
1967 230 Inherited from mom when she downsized
1959 220S Introduced me to the joys of keepin' 'em goin'

There are only 10 kinds of people in the world--those who understand binary and those who don't
Reply With Quote
  #3
Old 01-17-2010, 01:48 PM
Registered User

Join Date: Mar 2001
Posts: 223
I had never thought of that, I agree that is what would happen. Is that possible though, given the shape of the fan to put it on backwards?
__________________
1996 E320
2000 C230 Kompressor
1988 190e 2.3 - 225K miles, owned for 7 years. I cannot say enough good things about this car. Very well built, even at 225 it ran like new.
Reply With Quote
  #4
Old 01-17-2010, 02:17 PM
Registered User

Join Date: Sep 2004
Location: Seattle
Posts: 1,971
Have you checked the cabin filter? I am very skeptical about the backwards fan theory...
__________________
1998 C230 330,000 miles (currently dead of second failed EIS, yours will fail too, turning you into the dealer's personal human cash machine)
1988 F150 144,000 miles (leaks all the colors of the rainbow)
Previous stars: 1981 Brava 210,000 miles, 1978 128 150,000 miles, 1977 B200 Van 175,000 miles, 1972 Vega (great, if rusty, car), 1972 Celica, 1986.5 Supra
Reply With Quote
  #5
Old 01-17-2010, 02:34 PM
Registered User

Join Date: Mar 2001
Posts: 223
I got a PM indicating the filters as well, and found some excellent information here:
W210 Dust Filter
__________________
1996 E320
2000 C230 Kompressor
1988 190e 2.3 - 225K miles, owned for 7 years. I cannot say enough good things about this car. Very well built, even at 225 it ran like new.
Reply With Quote
  #6
Old 01-17-2010, 04:25 PM
Registered User

Join Date: Oct 2005
Posts: 4,263
There is a vacuum diverter valve buried in the dash which controls the flaps. That may be bad. But it's expensive enough that you don't want to swap it out to test. If it's good, your climate-control pushbutton unit may be at fault.

Are you sure that your fan is blowing faster when you increase the control past half-way? If not, you could have a bad blower regulator, which is a very common problem on your car.
Reply With Quote
  #7
Old 01-17-2010, 05:10 PM
Registered User

Join Date: Mar 2001
Posts: 223
So far I have ordered the filters here and hope that fixes the problem. The fan speed does seem to change when I adjust the fan speed settings.

I tried to find the part here for a vacuum diverter valve, I hope that is not the problem but it might be. Is this pretty difficult and expensive to replace? Do you know what the part # is so I can price it?
Thanks
__________________
1996 E320
2000 C230 Kompressor
1988 190e 2.3 - 225K miles, owned for 7 years. I cannot say enough good things about this car. Very well built, even at 225 it ran like new.
Reply With Quote
  #8
Old 01-21-2010, 11:11 PM
Registered User

Join Date: Mar 2001
Posts: 223

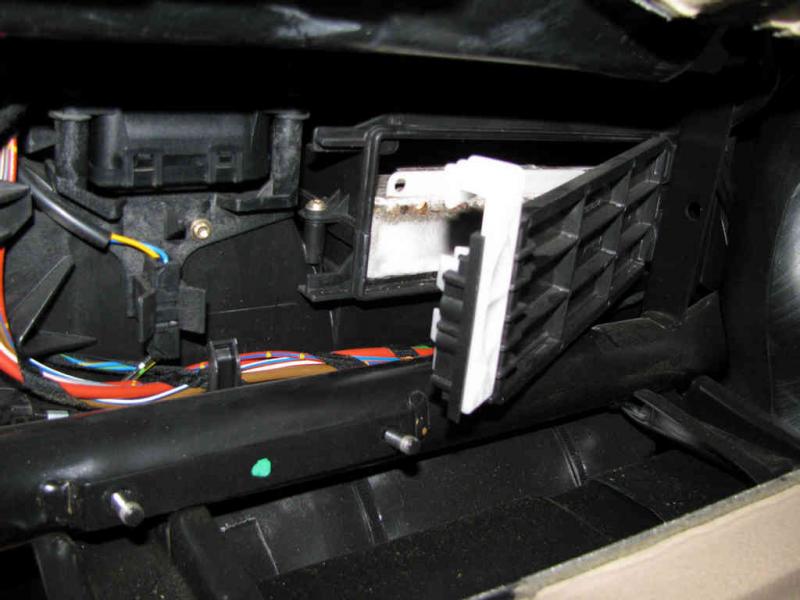

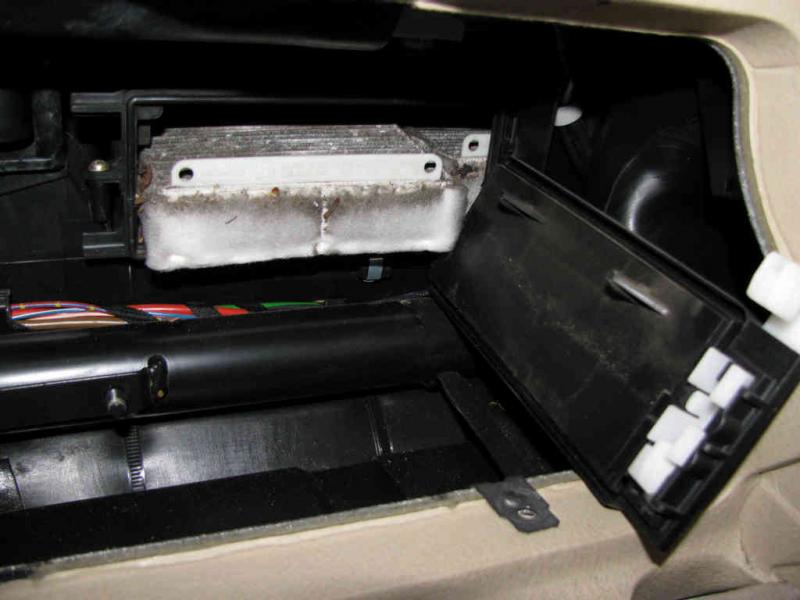

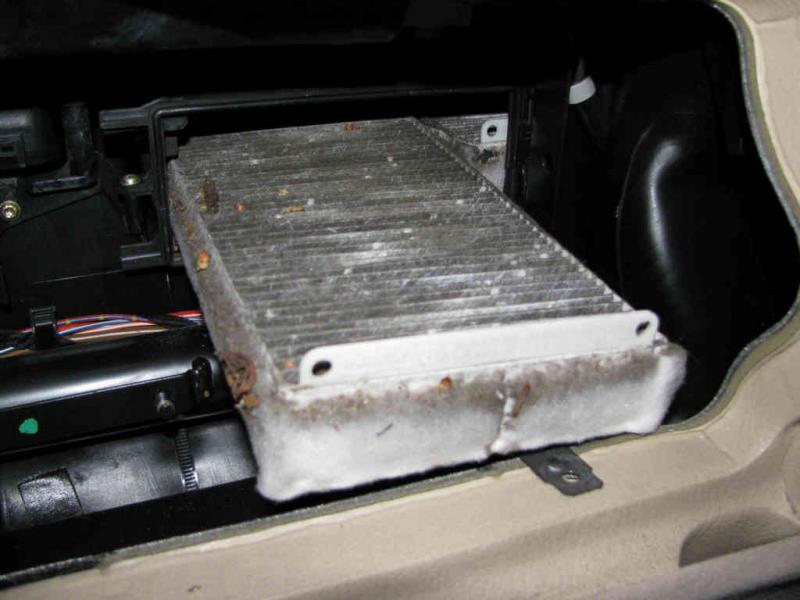

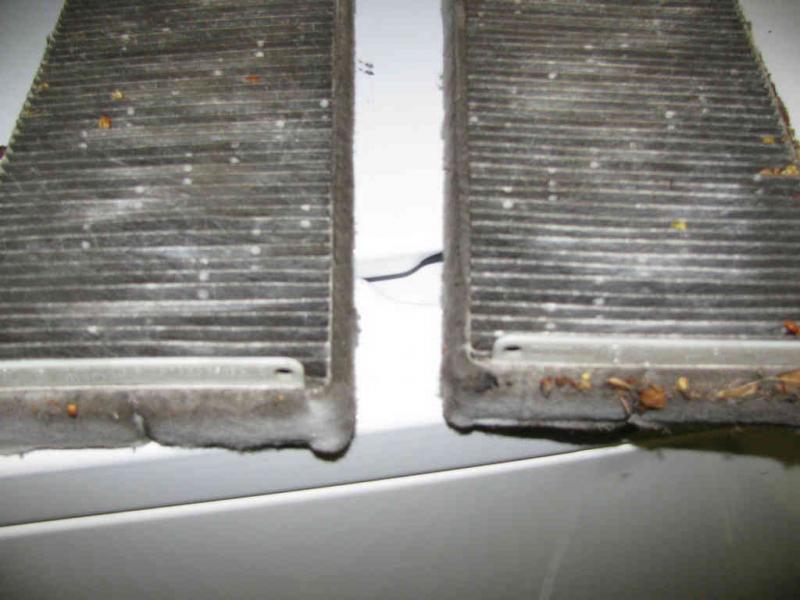

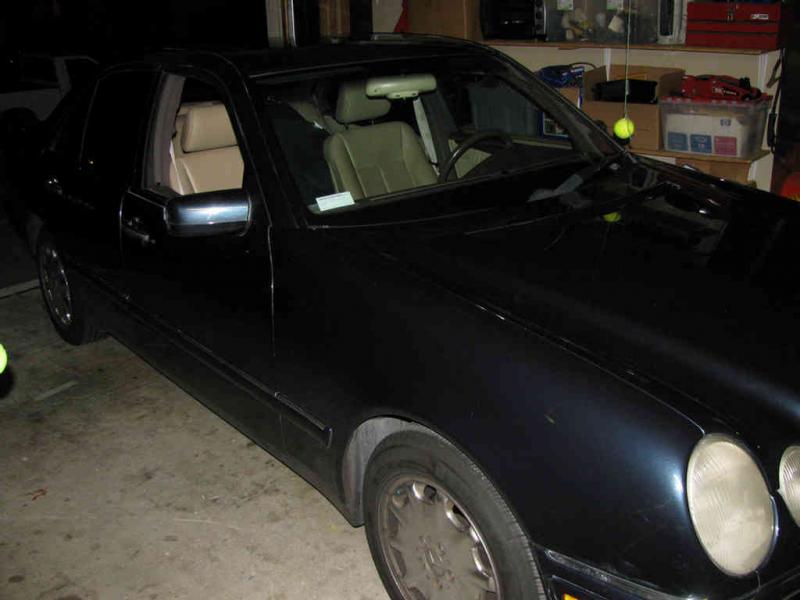

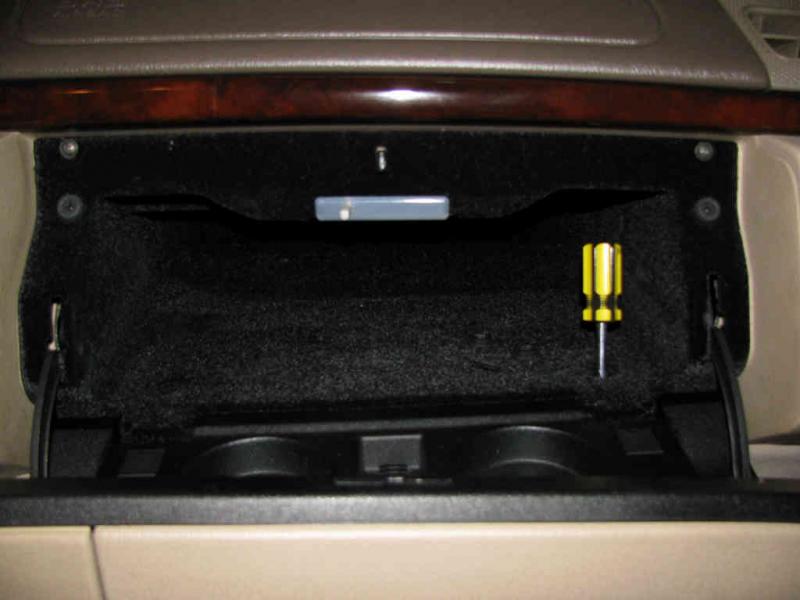

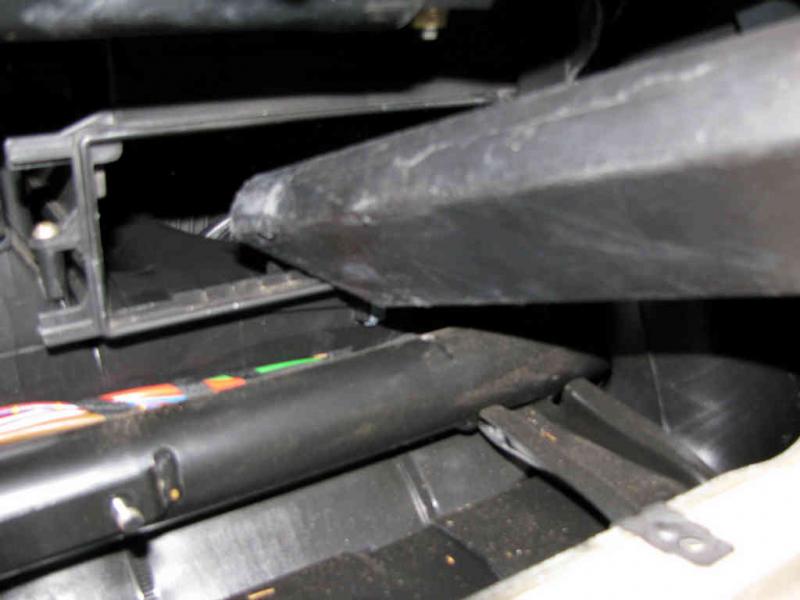

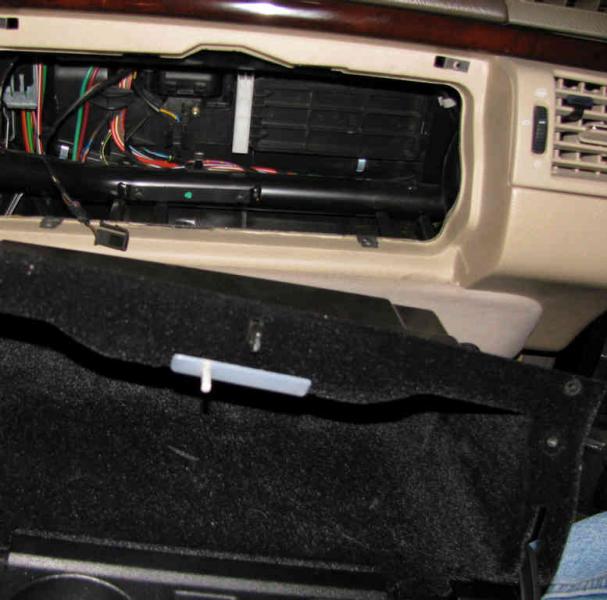

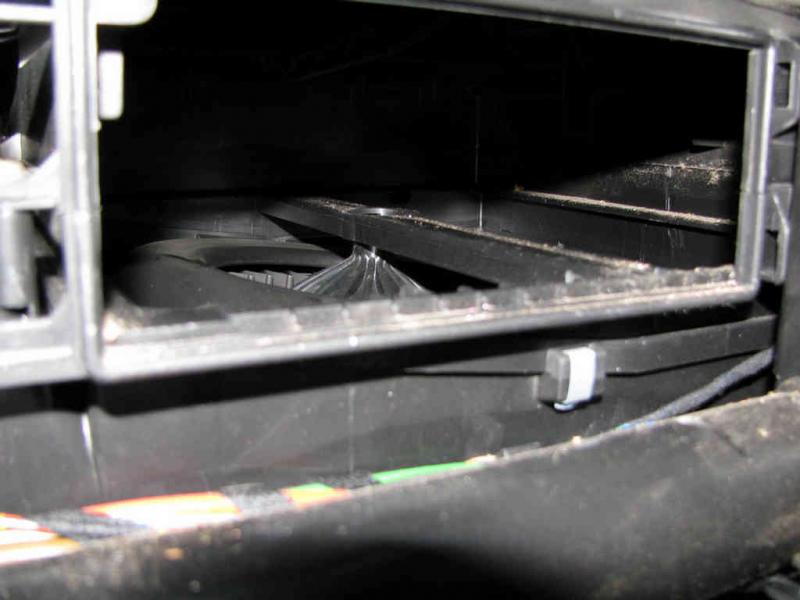

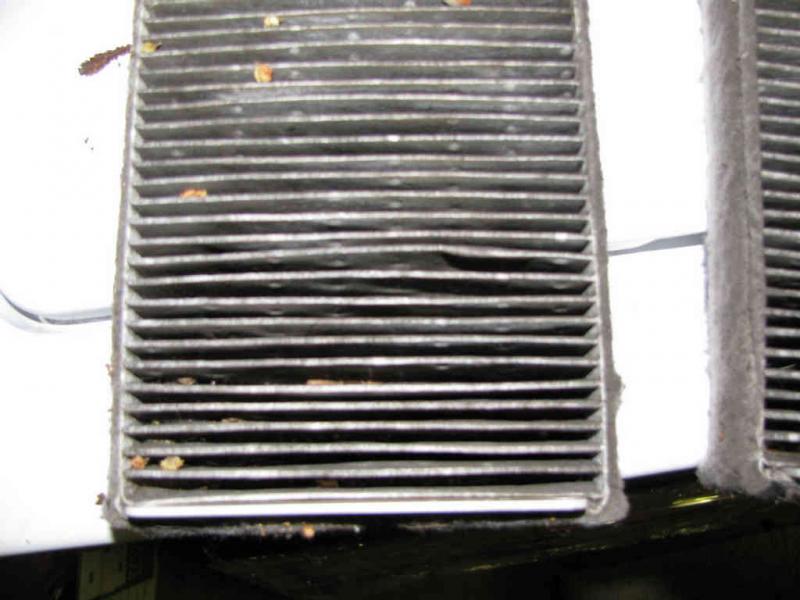

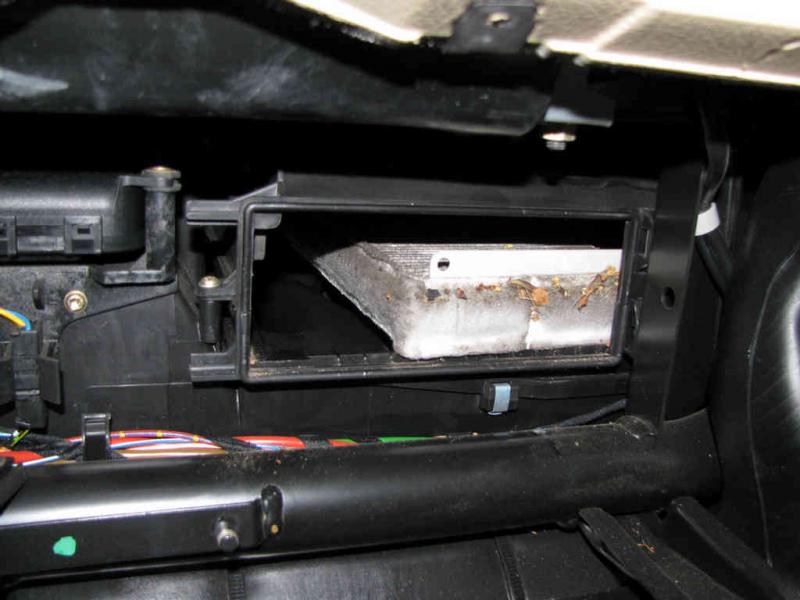

I thought I would post the photos of changing the filters, it was not so bad. I did not have to pull very hard, it kind of clicked out and then clicked back in when I was done. The filters were very dirty. However the problem has not been solved, the airflow is the same. I am going to do another post down further listing some other symptoms the car is having that might be related to the low airflow. Here are the photos of replacing the filters...


















Attached Thumbnails
1996 E320 AC Vents dont seem to respond well, airflow weak despite change in fan spd-img_3364.jpg   1996 E320 AC Vents dont seem to respond well, airflow weak despite change in fan spd-img_3365.jpg   1996 E320 AC Vents dont seem to respond well, airflow weak despite change in fan spd-img_3366.jpg   1996 E320 AC Vents dont seem to respond well, airflow weak despite change in fan spd-img_3368.jpg   1996 E320 AC Vents dont seem to respond well, airflow weak despite change in fan spd-img_3370.jpg

1996 E320 AC Vents dont seem to respond well, airflow weak despite change in fan spd-img_3372.jpg   1996 E320 AC Vents dont seem to respond well, airflow weak despite change in fan spd-img_3373.jpg   1996 E320 AC Vents dont seem to respond well, airflow weak despite change in fan spd-img_3374.jpg   1996 E320 AC Vents dont seem to respond well, airflow weak despite change in fan spd-img_3375.jpg   1996 E320 AC Vents dont seem to respond well, airflow weak despite change in fan spd-img_3377.jpg

1996 E320 AC Vents dont seem to respond well, airflow weak despite change in fan spd-img_3378.jpg   1996 E320 AC Vents dont seem to respond well, airflow weak despite change in fan spd-img_3379.jpg   1996 E320 AC Vents dont seem to respond well, airflow weak despite change in fan spd-img_3381.jpg   1996 E320 AC Vents dont seem to respond well, airflow weak despite change in fan spd-img_3383.jpg   1996 E320 AC Vents dont seem to respond well, airflow weak despite change in fan spd-img_3384.jpg

1996 E320 AC Vents dont seem to respond well, airflow weak despite change in fan spd-img_3387.jpg   1996 E320 AC Vents dont seem to respond well, airflow weak despite change in fan spd-img_3389.jpg   1996 E320 AC Vents dont seem to respond well, airflow weak despite change in fan spd-img_3390.jpg   1996 E320 AC Vents dont seem to respond well, airflow weak despite change in fan spd-img_3391.jpg
__________________
1996 E320
2000 C230 Kompressor
1988 190e 2.3 - 225K miles, owned for 7 years. I cannot say enough good things about this car. Very well built, even at 225 it ran like new.

Last edited by whunter; 01-22-2010 at 12:06 AM. Reason: attached pictures
Reply With Quote
  #9
Old 01-21-2010, 11:20 PM
Registered User

Join Date: Mar 2001
Posts: 223
The car also experiences these symptoms...
The windows roll up very slowly, especially the front passenger window. Occasionally in the morning when the car is first started, the engine will turn over very slowly and sometimes start barely or die. If you turn the key on and off it usually then starts normally. The power antenna does not work. The radio comes on even if the key is off and out but I think that might be normal.

The car runs great overall. I am not even sure if there is even a problem, but the windows going up that slow and the fan being that slow seem odd, like its a low voltage condition, but the car starts ok.

Any ideas that it could be low voltage? The battery is relatively new, but had to be replaced a couple of years ago I think because of that starting thing I mentioned above.

I also plan to look into the vacuum diverter valve someone mentioned above. Any ideas appreciated, thx.
__________________
1996 E320
2000 C230 Kompressor
1988 190e 2.3 - 225K miles, owned for 7 years. I cannot say enough good things about this car. Very well built, even at 225 it ran like new.
Reply With Quote
  #10
Old 01-22-2010, 09:08 AM
Registered User

Join Date: Sep 2004
Location: DFW / Collin County Texas
Posts: 1,882
Maybe I'm stating the obvious. Are you certain the vents are set to "on" on the slide rollers?
__________________
08 W251 R350
97 W210 E320
91 W124 300E
86 W126 560SEL
85 W126 380SE Silver
85 W126 380SE Cranberry
79 W123 250
78 W123 280E
75 W114 280
Reply With Quote
  #11
Old 01-22-2010, 09:09 AM
Registered User

Join Date: Sep 2004
Location: DFW / Collin County Texas
Posts: 1,882
As for the filters, I would have just removed them to rule them out. Cheaper and faster than buying new ones (unless of course you need new ones anyway, which it appears you did).
__________________
08 W251 R350
97 W210 E320
91 W124 300E
86 W126 560SEL
85 W126 380SE Silver
85 W126 380SE Cranberry
79 W123 250
78 W123 280E
75 W114 280
Reply With Quote
  #12
Old 01-22-2010, 10:54 AM
Registered User

Join Date: Mar 2001
Posts: 223
Well I figured the filters were likely to be pretty dirty anyway since they have not been replaced since we have owned the car.

We did try all the sliders, I even shined a flashlight in there to be sure I could see how the dampers were moving as I moved them. Like someone else here said, there are 3 positions, full open, almost closed and fully closed. No luck there.

I was checking out alldatadiy.com last night but the site may have been having a problem because all the fields were blank no matter what type of car I typed in. I would like to find out how much work its going to be to replace some vacuum elements. Maybe get a vacuum tester but I have never used one and at the moment dont see how they are used to actually locate a vacuum leak. Please keep the ideas coming.
__________________
1996 E320
2000 C230 Kompressor
1988 190e 2.3 - 225K miles, owned for 7 years. I cannot say enough good things about this car. Very well built, even at 225 it ran like new.
Reply With Quote
  #13
Old 01-22-2010, 11:03 AM
Registered User

Join Date: Jun 2000
Location: Plano, TX
Posts: 2,558
Slow cranking sounds like a classic battery on the way out symptom. Many auto stores will test the battery and charging system for free. They roll a cart with a load tester out to the car. Note that a battery can have good voltage, ie lights are bright and such, but still be failing. The load tester checks the voltage drop while delivering several hunderd amps of current, simulating what occurs when cranking the engine. That will call out a failing battery.

It's normal to be able to turn on the radio without the key - just push on on/off/volume knob. It's a feature, not a bug.

I have no clue on the low airflow issue...
Reply With Quote
  #14
Old 01-22-2010, 11:28 AM
Registered User

Join Date: Mar 2001
Posts: 223
I hope its not the battery, its around 2 years old, maybe 2 1/2 it should have plenty of life left or there is an electrical problem somewhere although the car seems fine otherwise.
On another note I got alldatadiy.com to work. However so far I cannot find the diagrams that show how to get to and replace the vacuum elements.
__________________
1996 E320
2000 C230 Kompressor
1988 190e 2.3 - 225K miles, owned for 7 years. I cannot say enough good things about this car. Very well built, even at 225 it ran like new.
Reply With Quote
  #15
Old 01-23-2010, 08:52 AM
Registered User

Join Date: Sep 2004
Location: DFW / Collin County Texas
Posts: 1,882
Where are you located? 2.5 to 3 years may be all you get in a warmer climate.

__________________
08 W251 R350
97 W210 E320
91 W124 300E
86 W126 560SEL
85 W126 380SE Silver
85 W126 380SE Cranberry
79 W123 250
78 W123 280E
75 W114 280
