Can anyone see anything wrong with these brake pictures?

I know this may be impossible but can anyone see anything wrong with these brake pictures? 5 in this post and 5 in the following post. Thanks in advance.

Attached Thumbnails
Can anyone see anything wrong with these brake pictures?-driver-side-brake1.jpg   Can anyone see anything wrong with these brake pictures?-driver-side-brake2.jpg   Can anyone see anything wrong with these brake pictures?-driver-side-brake3.jpg   Can anyone see anything wrong with these brake pictures?-driver-side-brake4.jpg   Can anyone see anything wrong with these brake pictures?-pass-brake1.jpg

__________________
1993 Benz-190E-2.6 liter
Reply With Quote
  #2
Old 06-17-2010, 03:43 PM
Registered User

Join Date: Jan 2004
Posts: 247
5 more pics
Attached Thumbnails

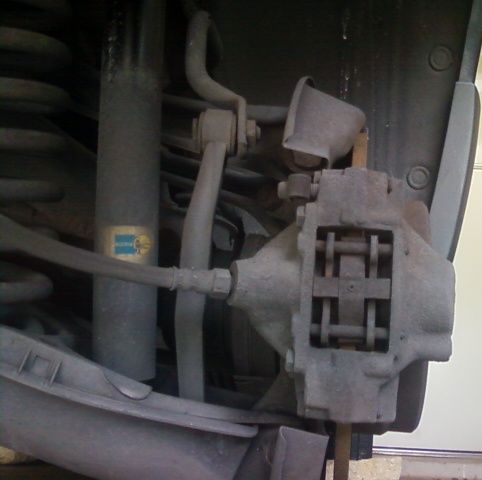

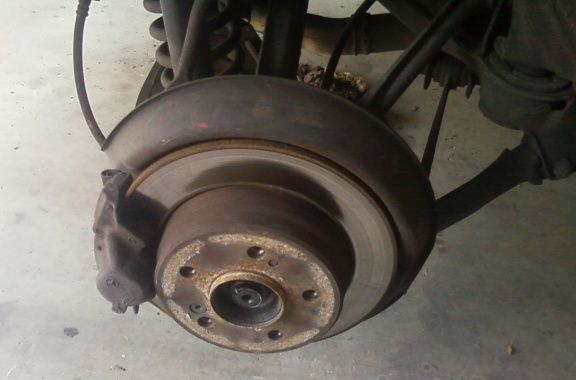

Can anyone see anything wrong with these brake pictures?-pass-brake2.jpg   Can anyone see anything wrong with these brake pictures?-pass-brake3.jpg   Can anyone see anything wrong with these brake pictures?-pass-brake4.jpg   Can anyone see anything wrong with these brake pictures?-pass-brake5.jpg   Can anyone see anything wrong with these brake pictures?-pass-brake6.jpg

__________________
1993 Benz-190E-2.6 liter
Reply With Quote
  #3
Old 06-17-2010, 03:58 PM
Home appliance genius

Join Date: Jul 2009
Location: cleveland
Posts: 1,160
I see two things wrong.

Your brake fluid is low. kidding

It kinda looks like your outside pads are worn more than the inside..

I always thought when your pins froze, the insides were the first to go.

Im confused...
__________________
Eugene

10 E63 AMG
93 300te 4matic
07 BMW X3
14 Ford F-150 Fx2
Reply With Quote
  #4
Old 06-17-2010, 04:01 PM
Registered User

Join Date: Jan 2004
Posts: 247
Quote:
Originally Posted by lorainfurniture View Post
Your brake fluid is low. kidding

It kinda looks like your outside pads are worn more than the inside..

I always thought when your pins froze, the insides were the first to go.

Im confused...
Me too.


Keep in mind some pics are of the passenger side and some are of the drivers side.
__________________
1993 Benz-190E-2.6 liter
Reply With Quote
  #5
Old 06-17-2010, 04:08 PM
Home appliance genius

Join Date: Jul 2009
Location: cleveland
Posts: 1,160
Quote:
Originally Posted by spree17 View Post
Me too.


Keep in mind some pics are of the passenger side and some are of the drivers side.
I did notice.. Thats weird.. can the inner pad be a little stuck or something?

both sides are equally worn....
__________________
Eugene

10 E63 AMG
93 300te 4matic
07 BMW X3
14 Ford F-150 Fx2
Reply With Quote
  #6
Old 06-17-2010, 04:11 PM
Registered User

Join Date: Jan 2004
Posts: 247
I havent worked on brakes before but I suspect I'm about to learn soon. Is there a way to tell if either pad is too worn down. Does anything look bent, warped or worn too far?

While the brake fluid is fine the brakes dont feel very strong
__________________
1993 Benz-190E-2.6 liter
Reply With Quote
  #7
Old 06-17-2010, 04:23 PM
Home appliance genius

Join Date: Jul 2009
Location: cleveland
Posts: 1,160
Take it apart, and put the pads next to each other. They slide on those 2 pins in the back. they might be stuck. I dont really see what else it could be.
__________________
Eugene

10 E63 AMG
93 300te 4matic
07 BMW X3
14 Ford F-150 Fx2
Reply With Quote
  #8
Old 06-17-2010, 04:32 PM
Registered User

Join Date: Dec 2006
Location: beautiful Bucks Co, PA
Posts: 961
Quote:
Originally Posted by lorainfurniture View Post
Your brake fluid is low. kidding

It kinda looks like your outside pads are worn more than the inside..

I always thought when your pins froze, the insides were the first to go.

Im confused...
The pins in this type of caliper don't move. There is uneven brake wear, but it's not excessive.
Spree, why are you asking?
Reply With Quote
  #9
Old 06-17-2010, 04:33 PM
Registered User

Join Date: Jun 2000
Location: Plano, TX
Posts: 2,531
The rotors are worn and very likely need to be replaced. There is quite an impressive lip at the outside edge of the rotor. When new, the surface is completely flat all the way to the edge.

The pad wear does look a little uneven, but I wouldn't much worry about it. Given how long rear brake pads last it's just not worth worrying about.

Just replaced the pads & rotors and bleed the brakes - you'll be good to go for another 100K miles.
Reply With Quote
  #10
Old 06-17-2010, 04:35 PM
Registered User

Join Date: Jan 2004
Posts: 247
Quote:
Originally Posted by Chas H View Post
The pins in this type of caliper don't move. There is uneven brake wear, but it's not excessive.
Spree, why are you asking?
I have an issue on one of my cars where I hear a thunk or brake chatter only when starting from a dead stop like a red light or stop sign after I have been sitting on the brakes. I never hear the noise in reverse or if the car is moving.
__________________
1993 Benz-190E-2.6 liter
Reply With Quote
  #11
Old 06-17-2010, 04:36 PM
Registered User

Join Date: Jan 2004
Posts: 247
Quote:
Originally Posted by jcyuhn View Post
The rotors are worn and very likely need to be replaced. There is quite an impressive lip at the outside edge of the rotor. When new, the surface is completely flat all the way to the edge.

The pad wear does look a little uneven, but I wouldn't much worry about it. Given how long rear brake pads last it's just not worth worrying about.

Just replaced the pads & rotors and bleed the brakes - you'll be good to go for another 100K miles.
Thanks jcyuhn,

Which rotor or both do you see the lip on?
__________________
1993 Benz-190E-2.6 liter
Reply With Quote
  #12
Old 06-17-2010, 05:49 PM
Home appliance genius

Join Date: Jul 2009
Location: cleveland
Posts: 1,160
Quote:
Originally Posted by Chas H View Post
The pins in this type of caliper don't move. There is uneven brake wear, but it's not excessive.
Spree, why are you asking?
Right, i meant to say the pads slide on the pins
__________________
Eugene

10 E63 AMG
93 300te 4matic
07 BMW X3
14 Ford F-150 Fx2
Reply With Quote
  #13
Old 06-17-2010, 06:45 PM
pawoSD's Avatar
Dieselsüchtiger

Join Date: Oct 2004
Location: Grand Rapids, MI
Posts: 15,323
Looks like stuck caliper pin-slides.
__________________
-diesel is not just a fuel, its a way of life-
'15 GLK250 Bluetec 90k - mine - (OC-91,200)
'17 Metris(VITO!) - 18k - wifes (OC-25k)
'01 E320 Wagon - 161k - mine (OC-165,000)
'01 E320 - 180k - dad's (OC-182,500)
'07 E350 Wagon - 134k - dad's (OC-139,500)
'01 SL500 - 56k - dad's (OC-59,000)
'16 E400 4matic Sedan - 81k - Brothers (OC-88,000)
Reply With Quote
  #14
Old 06-17-2010, 06:47 PM
Registered User

Join Date: Jan 2004
Posts: 247
Quote:
Originally Posted by pawoSD View Post
Looks like stuck caliper pin-slides.
Thanks Pawosd. Which side of the car or both?
__________________
1993 Benz-190E-2.6 liter
Reply With Quote
  #15
Old 06-17-2010, 07:19 PM
pawoSD's Avatar
Dieselsüchtiger

Join Date: Oct 2004
Location: Grand Rapids, MI
Posts: 15,323
Quote:
Originally Posted by spree17 View Post
Thanks Pawosd. Which side of the car or both?
Actually, those pictures are of the rear brakes, well, the first pic is. They do not have slide pins. I meant that it has a stuck piston. Looks like the drivers side rear is the worst. Might need to replace the caliper. I had it happen on my 300SD a year ago, and just replaced both rear calipers.
