The P/O tried to fix the A/C

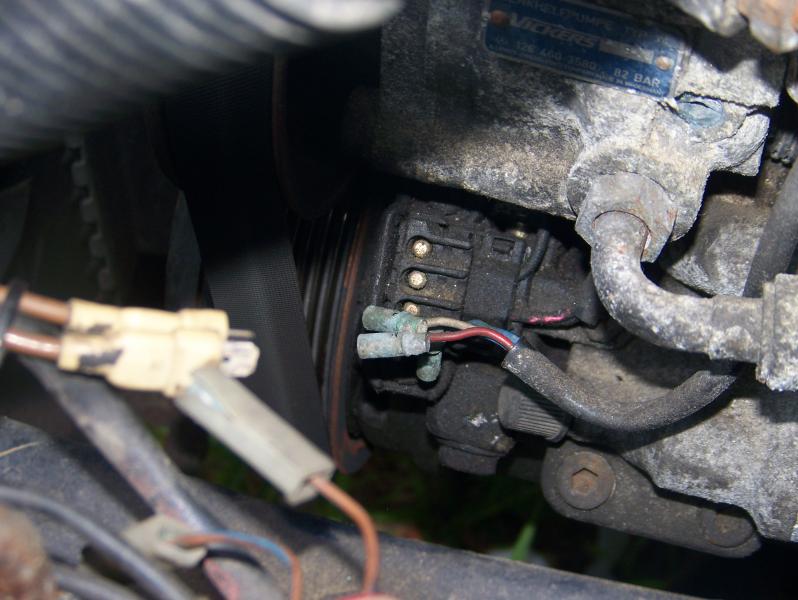

The p/o worked on the A/C. The connector to the compressor has been broken and the wires pulled out from their sockets, does anyone know the order that these go in. 88 300se
Thanks
Dan

Attached Thumbnails
The P/O tried to fix the A/C-100_0873.jpg   The P/O tried to fix the A/C-100_0874.jpg
__________________
1986 300sdl
1984 300sd
1988 300se
1973 vw thing
Reply With Quote
  #2
Old 07-21-2010, 08:38 PM
Jer Jer is offline
Jer

Join Date: Sep 2005
Location: Meriden, CT
Posts: 82
The red (pin 1) and white (pin 2) wires are for the speed sensor. The blue (pin 3) wire is +12V to the clutch coil.
