94 W124 odometer : drive type?

So the VDO odometer in the cabrio finally did that thing VDO's usually do.. fail.

I have been searching the forums for a good, comprehensive w124 odometer repair and nothing has shown.

Plus I am not sure if the late w124 odometer is cable driven or done by a sine wave converter and what ever electronic stuff the newer cars have.

help?

Reply With Quote
  #2
Old 12-01-2010, 01:03 PM
babymog's Avatar
Loose Cannon - No Balls

Join Date: Jan 2006
Location: Northeast Indiana
Posts: 10,767
Cable drive on all 124s.

Standard failure on the 124 odometer is the plastic pinion slipping off of the number-wheel shaft (driven by the worm gear). I have had excellent luck with a little epoxy applied with a needle and sliding the gear back into place, be sure not to get any epoxy on the adjacent parts of course.

Sliding the gear back into place will work for about 100miles-1000miles from my experience if you don't use the epoxy.
__________________

Gone to the dark side

- Jeff
Reply With Quote
  #3
Old 12-01-2010, 01:20 PM
TheDon's Avatar
Ghost of Diesels Past

Join Date: Oct 2005
Posts: 13,217
hmm looks like ill have to get some locktite(or is there something else) and do the repair
Reply With Quote
  #4
Old 12-01-2010, 01:48 PM
TylerH860's Avatar
KHAAAAAAN-gress

Join Date: Aug 2007
Location: Wichita, Ks
Posts: 5,187
Quote:
Originally Posted by TheDon View Post
hmm looks like ill have to get some locktite(or is there something else) and do the repair
I thought you were waiting to fix it until sell time.
__________________
1985 500SL Euro w/ AMG bits 130k
1984 300SD Turbodiesel 192k
1980 240D Stick China 188k
2001 CLK55 AMG 101k
2007 S600 Biturbo 149k Overheated Project, IT'S ALIVE!!!
Reply With Quote
  #5
Old 12-01-2010, 06:16 PM
compress ignite's Avatar
Drone aspiring to Serfdom

Join Date: Feb 2004
Location: 32(degrees) North by 81(degrees) West
Posts: 5,554

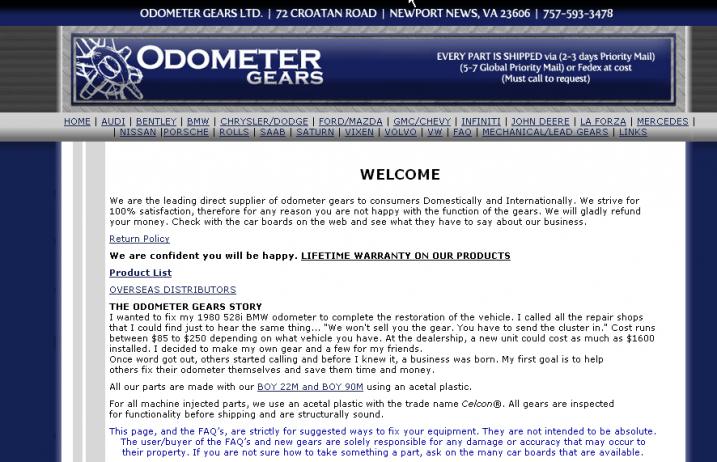

Odometer Gears dot com

AND Loctite Gel
Attached Thumbnails
94 W124 odometer : drive type?-screenhunter_03-dec.-01-18.13.jpg   94 W124 odometer : drive type?-screenhunter_04-dec.-01-18.16.jpg
__________________
'84 300SD sold
124.128
Reply With Quote
  #6
Old 12-01-2010, 10:18 PM
babymog's Avatar
Loose Cannon - No Balls

Join Date: Jan 2006
Location: Northeast Indiana
Posts: 10,767
I've used West System epoxy, don't know what else would/wouldn't work but so far, ...
__________________

Gone to the dark side

- Jeff
Reply With Quote
  #7
Old 12-01-2010, 11:06 PM
TheDon's Avatar
Ghost of Diesels Past

Join Date: Oct 2005
Posts: 13,217
Quote:
Originally Posted by TylerH860 View Post
I thought you were waiting to fix it until sell time.
Don't make me curse your new mid life crisis car.

Reply With Quote
