E320 Cabriolet Top operation issue

Alrighty, got everything in, clamped, bolted, plugged in, etc. Nothing is leaking but now the top does not want to go into the hole.

The bow lifts, but the tonneu cover will not unlatch and pop open. If manually opened the tonneu will close it self when doing the open convertible top operation.

all microswitches are plugged in properly, all lines go to their proper ports, all clips are in place. I'm at a loss

Reply With Quote
  #2
Old 04-06-2011, 02:16 AM
Registered User

Join Date: Feb 2010
Location: Hawaii
Posts: 76
Is your switch flashing?

There is a switch that tells the cover that the bow is raised, it's on the right (passenger's side) it sounds like it is not getting activated. I tried to find a link for you it's 77-435 in the factory service manual. You would not have has any need to touch it in what you did.

Another suggestion, retract the top manually and see if it will close with the switch, if so then try to open it.

You may have a stored fault code that you need to clear.

Edit here's the link http://w124-zone.com/downloads/MB%20CD/W124/w124CD2/Program/Chassis/77-435.pdf
Reply With Quote
  #3
Old 04-06-2011, 06:49 AM
TheDon's Avatar
Ghost of Diesels Past

Join Date: Oct 2005
Posts: 13,285
That would be odd. Everything is back I it's place exactly as it was before I removed everything. I'll try what you mentioned tomorrow
Reply With Quote
  #4
Old 04-06-2011, 04:10 PM
RBYCC's Avatar
Registered User

Join Date: Mar 2007
Location: DELAWARE
Posts: 1,041
What position are your side windows in when you start the top lowering procedure.

I find at times if my side windows are down the lowering process will not operate properly.

Never have a problem with the windows up and allow the top switch to begin the process by lowering the side windows.
__________________
http://i19.photobucket.com/albums/b1...c/GOWIDE-1.jpg
1971 280SL ROADSTER
1988 300CE TWIN TURBO WIDEBODY
1994 E320 CABRIOLET
1999 C43 AMG
2005 G55K AMG
2008 CLK63 AMG BLACK SERIES
Reply With Quote
  #5
Old 04-06-2011, 04:23 PM
TheDon's Avatar
Ghost of Diesels Past

Join Date: Oct 2005
Posts: 13,285
I did it with the top latched, windows closed.

The front of the top unlatched, press the button, windows go down, bow lifts, tonneu refuses to lift.
Reply With Quote
  #6
Old 04-07-2011, 01:35 AM
Registered User

Join Date: Feb 2010
Location: Hawaii
Posts: 76
You did reconnect the passenger's side bow cylinder cable where it come out near the speaker? If the bow is raising and the cover is not lifting sounds like the car does not think the bow is up.
Reply With Quote
  #7
Old 04-07-2011, 10:57 AM
TheDon's Avatar
Ghost of Diesels Past

Join Date: Oct 2005
Posts: 13,285
Quote:
Originally Posted by vexed View Post
You did reconnect the passenger's side bow cylinder cable where it come out near the speaker? If the bow is raising and the cover is not lifting sounds like the car does not think the bow is up.
Ding, it was that...

I just got home from the store and played with the top while sitting in the driveway. I looked over and noticed, hmmm that's not connected.

and voila! The top functions perfectly. No leaks from where it was leaking before, no noises. It's awesome. Klausee Witte @ Top Hydraulics inc did a smashing job!

I do need to figure out why the front latch is difficult, I shouldn't have to slam it to latch it.
Reply With Quote
  #8
Old 04-07-2011, 02:12 PM
TheDon's Avatar
Ghost of Diesels Past

Join Date: Oct 2005
Posts: 13,285
DONE!
Reply With Quote
  #9
Old 04-07-2011, 04:16 PM
Registered User

Join Date: Dec 2007
Location: NorCal
Posts: 1,332
Sweeeet! I would die for a Signal Red W124.
__________________
http://i193.photobucket.com/albums/z...-RESIZED-1.jpg
1991 300E - 212K and rising fast...
Reply With Quote
  #10
Old 04-08-2011, 11:07 AM
Juck's Avatar
It could always be worse.

Join Date: Dec 2006
Location: Apopka, FL
Posts: 63
Quote:
Originally Posted by JohnM. View Post
Sweeeet! I would die for a Signal Red W124.
I'm selling mine!

Attached Thumbnails

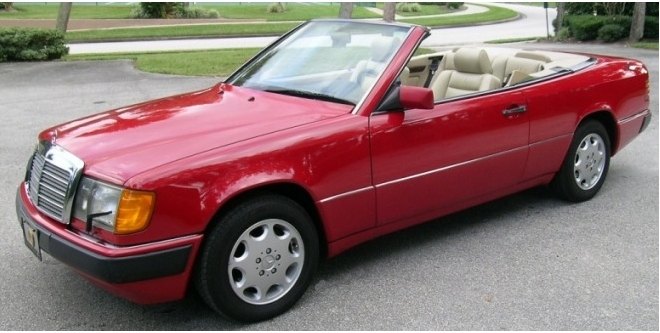

E320 Cabriolet Top operation issue-300ce1a.jpg
__________________
I wasn't the one who misplaced the entire Deltivid asteroid belt.
Reply With Quote
  #11
Old 04-08-2011, 01:09 PM
Registered User

Join Date: Dec 2001
Location: LaPorte, IN
Posts: 400
Quote:
Originally Posted by Juck View Post
I'm selling mine!

Any info beyond that?? History, mileage, asking, etc.

(to paraphrase Red Green--"Honey, if you're reading this--i'm only asking for the benefit of John M. I have no interest in buying another car. No, not me. Honest." ...also..."i'm a man, but i can change. If i have to. Maybe.")

earl
__________________
Earl McLain
'02 C230 Kompressor
'89 560 SEL "Frau BlueCar" (retired April 2004)
Reply With Quote
  #12
Old 04-09-2011, 12:05 AM
Juck's Avatar
It could always be worse.

Join Date: Dec 2006
Location: Apopka, FL
Posts: 63
Quote:
Originally Posted by greenacres2 View Post
Any info beyond that?? History, mileage, asking, etc.

(to paraphrase Red Green--"Honey, if you're reading this--i'm only asking for the benefit of John M. I have no interest in buying another car. No, not me. Honest." ...also..."i'm a man, but i can change. If i have to. Maybe.")

earl
PM sent

__________________
I wasn't the one who misplaced the entire Deltivid asteroid belt.
Reply With Quote
