Lightbulb DIY: Mercedes (W163) ML320 / ML350 Oil Change with PICTURES

Hey guys this was a very quick oil change and not tough to do at all! This Oil Change Do It Yourself applies to all Mercedes ML320 and (163) Mercedes ML350

All you need is:
9 Quarts of Mobil1 0W40
1 Fleece Type Oil filter (Fleece filter is white, not the cheap paper colored kind)


- You do not need to raise the truck since there is plenty of room under the vehicle.

1) Simply warm up the truck. Park on a flat surface and Turn off the truck. Remove oil filler cap. Make sure your drain pan is large enough for the 8 quarts of oil that will be coming out.

2) Get under the truck and un-screw the drain plug(on the passenger side of engine) and watch it come flying out. Let it drain like a dealer never would. (go have a beer or do some yard work)

3) Un-tighten Oil Filter housing and make sure you are wearing gloves or you will need lots of paper towels. Remove old filter and provided elastic washers.

4) Install new oil filter and elastic washers on housing and tighten back into position. Get under the truck and screw on the drain plug.

5) According to the Mercedes Manual this engine requires 8.5 US qts of oil (8 L's). Add 8 quarts of Mobil 1 0w40. Start up the truck for a couple minutes and check the oil level. Add the next .5 qts of oil at your discretion.


If you have any further questions, please call your local Mercedes dealer because they will convince you to come in and not trust what you have just read online.




p.s. The Ebay Oil Extractor you see in this picture died at birth. Never sucked out any oil period.
Attached Thumbnails

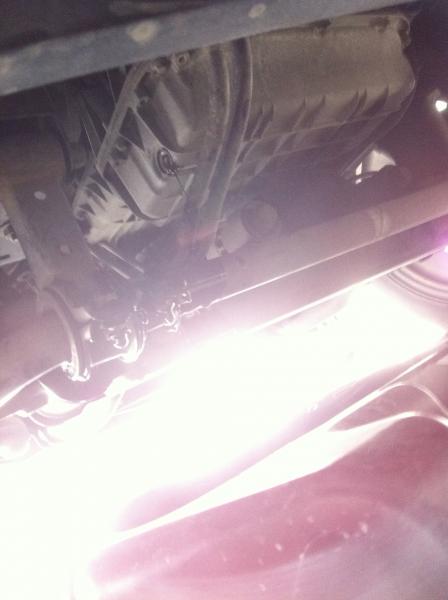

DIY: Mercedes (W163) ML320 / ML350 Oil Change with PICTURES-img_0402.jpg   DIY: Mercedes (W163) ML320 / ML350 Oil Change with PICTURES-img_0403.jpg   DIY: Mercedes (W163) ML320 / ML350 Oil Change with PICTURES-img_0405.jpg   DIY: Mercedes (W163) ML320 / ML350 Oil Change with PICTURES-img_0400.jpg
__________________
My Cars
Mercedes ML
Mercedes C-Class W203

R.I.P.
Mercedes C-Class - passed away at 318, 000 KM on March 18, 2009 Forever Missed
VW Jetta Worst Car I ever owned - Alot of problems

Last edited by trueog; 05-24-2011 at 12:48 AM.
Reply With Quote
  #2
Old 11-26-2011, 11:34 PM
Registered User

Join Date: Nov 2011
Posts: 1
Post Oil Change Question

In older versions of Parts & Specs books, it said to use 15W-40 (synthetic) for 2002 MB (ML 320), in newer books, it specifies that MB has approved 0W-30 (Synthetic), and you indicate to use 0W-40. Which of these three types of oil is recommended for winters with ambient temperatures between 20-45 degrees Fa. (average)?

Please comment!
Reply With Quote
  #3
Old 11-27-2011, 08:23 PM
trueog's Avatar
All Star User

Join Date: Feb 2005
Location: Vancouver BC Canada
Posts: 392
Quote:
Originally Posted by RUNRON View Post
In older versions of Parts & Specs books, it said to use 15W-40 (synthetic) for 2002 MB (ML 320), in newer books, it specifies that MB has approved 0W-30 (Synthetic), and you indicate to use 0W-40. Which of these three types of oil is recommended for winters with ambient temperatures between 20-45 degrees Fa. (average)?

Please comment!
Here in BC the dealer uses 5W40. I don't know where you live, but the only mercedes approved 0W30 is Castrol and sold only at Canadian tires stores. That oil it actually imported from Germany and says on the bottle also.

Mobil 0W40 can be used in any Mercedes operating in every climate and is a premium oil change if you ask for it at the dealer. It is the only oil used for all AMG Mercedes also.
__________________
My Cars
Mercedes ML
Mercedes C-Class W203

R.I.P.
Mercedes C-Class - passed away at 318, 000 KM on March 18, 2009 Forever Missed
VW Jetta Worst Car I ever owned - Alot of problems
