w124 Center Consol Box info needed

I picked a roll-top box at the local yard the other for next to nothing, only because it was in rough shape with no roll-top. I'm pretty confident I can build the roll-top if I can find out the length (front to back) of each slat. If any one can provide me with that info, i'd be greatly appreciated.
Thanks. J.

Reply With Quote
  #2
Old 07-22-2011, 11:45 AM
Jeremy5848's Avatar
Registered Biodiesel User

Join Date: Mar 2006
Location: Sonoma Wine Country
Posts: 8,394
Console box

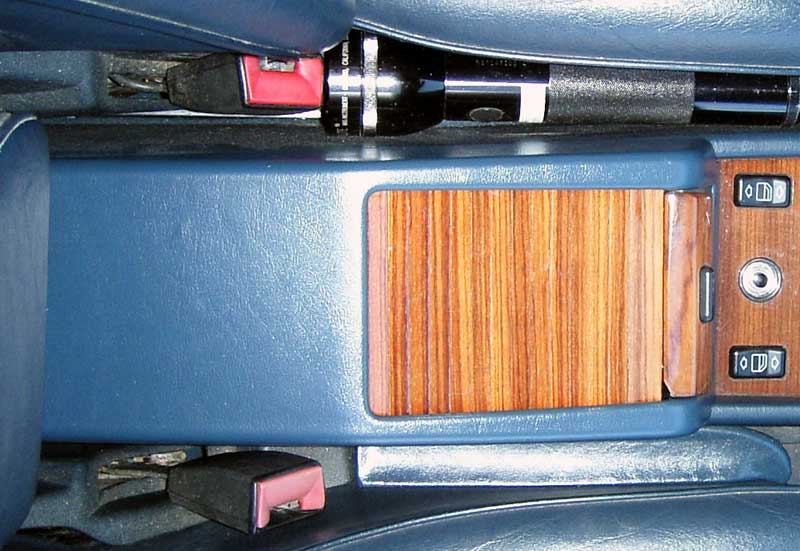

The first slat is 17.5 mm and the others are 9 mm each. The slats are glued to some kind of fabric with what looks like contact cement. When I got my box some of the slats were loose but I was able to warm the glue with a heat gun and press the slats back in place.

Edit: The "first slat" is actually #2; #1 has the push-to-open button and latch on it. There are at least 14 of the narrower slats -- I cannot see how far they go back.

Edit: Added pictures.
Attached Thumbnails
w124 Center Consol Box info needed-box_7362.jpg   w124 Center Consol Box info needed-box_7365.jpg   w124 Center Consol Box info needed-box_7367.jpg   w124 Center Consol Box info needed-box_7369.jpg
__________________

"Buster" in the '95

Our all-biodiesel family
1995 E300D (W124) . .239,000 miles My car
1996 E300D (W210) . .313,000 miles Wife's car
Santa Rosa population 170,685 (2012)
Total. . . . . . . . . . . . 722,685
"Oh lord won't you buy me a Mercedes Benz."
-- Janis Joplin, October 1, 1970

Last edited by Jeremy5848; 07-22-2011 at 12:17 PM.
Reply With Quote
  #3
Old 07-22-2011, 12:46 PM
ashedd's Avatar
Registered User

Join Date: Aug 2008
Location: Seattle
Posts: 1,790
What the heck is that between your rear window buttons?
__________________
08 R320 CDI current

Past
95 E420
87 300D Turbo 5spd
90 300TE
83 300SD
85 300TD
92 400E
85 190D

Reply With Quote
  #4
Old 07-22-2011, 01:13 PM
Jeremy5848's Avatar
Registered Biodiesel User

Join Date: Mar 2006
Location: Sonoma Wine Country
Posts: 8,394
I wondered how long it would take . . .sharp eyes! The PO had some kind of LED for an aftermarket alarm in that hole. I removed it and, since the wood was ruined anyway by the hole, decided to "make lemonade." I enlarged the hole and mounted a recessed pushbutton switch, then ran the wires up into the glove box and connected them to my garage door opener remote control. To open/close the garage door, I press that button. The recess keeps the button from being accidentally pressed by stuff sitting on the console.
__________________

"Buster" in the '95

Our all-biodiesel family
1995 E300D (W124) . .239,000 miles My car
1996 E300D (W210) . .313,000 miles Wife's car
Santa Rosa population 170,685 (2012)
Total. . . . . . . . . . . . 722,685
"Oh lord won't you buy me a Mercedes Benz."
-- Janis Joplin, October 1, 1970
Reply With Quote
  #5
Old 07-22-2011, 04:34 PM
oldirty88's Avatar
Registered User

Join Date: Feb 2010
Location: Cape Coral
Posts: 51
Thanks for the info Jeremy! I'm not sure how I would duplicate the first slat but I'll figure something out. I was also wondering about that hole. I also see that the pieces between the seats and the consol are covered in MBtex, these pieces in my '88 are covered in cloth. I'm considering covering them with wood veneer. Thanks again, really helpful!
Reply With Quote
  #6
Old 07-22-2011, 07:04 PM
ashedd's Avatar
Registered User

Join Date: Aug 2008
Location: Seattle
Posts: 1,790
Quote:
Originally Posted by Jeremy5848 View Post
I wondered how long it would take . . .sharp eyes! The PO had some kind of LED for an aftermarket alarm in that hole. I removed it and, since the wood was ruined anyway by the hole, decided to "make lemonade." I enlarged the hole and mounted a recessed pushbutton switch, then ran the wires up into the glove box and connected them to my garage door opener remote control. To open/close the garage door, I press that button. The recess keeps the button from being accidentally pressed by stuff sitting on the console.
I was gonna say it looked like a button. It also looks like a 1/4" TRS(audio jack). That got me "thinking", you could use a 1/4" TRS for an aux input into the stereo. I dunno
__________________
08 R320 CDI current

Past
95 E420
87 300D Turbo 5spd
90 300TE
83 300SD
85 300TD
92 400E
85 190D

Reply With Quote
  #7
Old 07-22-2011, 09:28 PM
Jeremy5848's Avatar
Registered Biodiesel User

Join Date: Mar 2006
Location: Sonoma Wine Country
Posts: 8,394
Fry catchers

Quote:
Originally Posted by oldirty88 View Post
Thanks for the info Jeremy! I'm not sure how I would duplicate the first slat but I'll figure something out. I was also wondering about that hole. I also see that the pieces between the seats and the consol are covered in MBtex, these pieces in my '88 are covered in cloth. I'm considering covering them with wood veneer. Thanks again, really helpful!
The "fry catchers" were given me by Sixto. Originally covered with fabric, they were rather beat up (but considering the price, and I had none at all, I did not complain). I replaced the original fabric with vinyl (not MB-Tex) from my wife's sewing stash, which I then painted dark blue with SEM spray paint to match the interior of my car.

You have my admiration if you can make a roll-top cover for anything. Next time I'm at Pick and Pull I'll keep my eyes open for a top.

Jeremy
__________________

"Buster" in the '95

Our all-biodiesel family
1995 E300D (W124) . .239,000 miles My car
1996 E300D (W210) . .313,000 miles Wife's car
Santa Rosa population 170,685 (2012)
Total. . . . . . . . . . . . 722,685
"Oh lord won't you buy me a Mercedes Benz."
-- Janis Joplin, October 1, 1970
Reply With Quote
  #8
Old 07-22-2011, 09:30 PM
Jeremy5848's Avatar
Registered Biodiesel User

Join Date: Mar 2006
Location: Sonoma Wine Country
Posts: 8,394
Audio jack

Quote:
Originally Posted by ashedd View Post
I was gonna say it looked like a button. It also looks like a 1/4" TRS(audio jack). That got me "thinking", you could use a 1/4" TRS for an aux input into the stereo. I dunno
That would be a good place for an aux input, as you could put your iPod or whatever in the tray (or box, if you have one).
