vibration and tap tap tap sound from center of car on take off acceleration

I have an e320 wagon that I'm noticing a tap tap tap and vibration when I hit the gas from a stop. It doesn't seem to be there when cruising or even accelerating later. I've only noticed it on take off.

Any ideas what this could be?

Background on the car, bought it used fixed an exhaust leak changed the MAF sensor, put new tires on it. Seems to run good.

It was rear ended at some point. It doesn't look bad but I know the frame is bent a little bit. I can see a small crease in the roof metal between the two doors (front and rear) also the doors close a little tight. So I'm sure there's a little bend in the frame from the rear end collision. It drives fine and straight. But maybe this could be related maybe not.

What should I be checking?

thanks!
Nick
__________________
-7.3 Powerstroke Diesel 15P Van 500k+ miles
-E320 '95 200k

Sold
-E320 Wagon 1994 155k
-300d Turbo '87 187k miles
-E320 1994 200k
-300d Turbo '84 245k (sold to Dan62)
-300d Turbo '84 180k
-300sd '80 300k
-190d '89 Non Turbo 2.5 5cyl 240k
Tom's Imports of Columbia Missouri Ruined the IP in changing leaky delivery valve O-Rings - Refused to stand behind his work. Mid-MO MB drivers-AVOID Tom's!
Reply With Quote
  #2
Old 04-27-2012, 08:08 AM
Registered User

Join Date: Jun 2007
Location: Waterloo Illinois
Posts: 1,336
Ill bet its your flex disc.
Reply With Quote
  #3
Old 04-27-2012, 08:14 AM
Moderator

Join Date: Mar 1999
Location: Tucker, Ga USA
Posts: 12,153
What year car? 4-matic?

Flex disc or center support issue, don't forget the trans mount.
__________________
MERCEDES Benz Master Guild Technician (6 TIMES)
ASE Master Technician
Mercedes Benz Star Technician (2 times)
44 years foreign automotive repair
27 Years M.B. Shop foreman (dealer)
MB technical information Specialist (15 years)
190E 2.3 16V ITS SCCA race car (sold)
1986 190E 2.3 16V 2.5 (sold)
Retired Moderator
Reply With Quote
  #4
Old 04-27-2012, 08:19 AM
777funk's Avatar
Registered User

Join Date: Dec 2006
Posts: 944
Quote:
Originally Posted by mbdoc View Post
What year car? 4-matic?

Flex disc or center support issue, don't forget the trans mount.
This is a 94 E320 2WD (EDIT: Great time to update my sig line - car added). I looked at the flex discs and don't see much in the way of cracks. I wonder if the P.O.'s rear end collision could have messed up the drive shaft angles? I would think that it's flexible enough being two pieces that it's probably ok. But maybe the driveline is pressed forward a little from the compression of the rear toward the front. I would think it's a pretty small amount but it's enough that the doors don't shut easily (tight slightly mis-aligned fit).


Would a bad center bearing cause this only at take off?
__________________
-7.3 Powerstroke Diesel 15P Van 500k+ miles
-E320 '95 200k

Sold
-E320 Wagon 1994 155k
-300d Turbo '87 187k miles
-E320 1994 200k
-300d Turbo '84 245k (sold to Dan62)
-300d Turbo '84 180k
-300sd '80 300k
-190d '89 Non Turbo 2.5 5cyl 240k
Tom's Imports of Columbia Missouri Ruined the IP in changing leaky delivery valve O-Rings - Refused to stand behind his work. Mid-MO MB drivers-AVOID Tom's!
Reply With Quote
  #5
Old 04-27-2012, 09:21 AM
Registered User

Join Date: Feb 2007
Location: los angeles
Posts: 491
Could be the rear of driveshaft if it has U Joint , or center support , only way to check is to remove drive shaft and inspect
Reply With Quote
  #6
Old 04-27-2012, 09:58 AM
777funk's Avatar
Registered User

Join Date: Dec 2006
Posts: 944
Is it possible to check the center bearing by pushing and pulling up and down on the drive shaft to feel for play? I'd guess it's a small enough bearing that any play that'd cause noise issues wouldn't be noticeable by hand but figured I'd ask since I don't know the answer to this.
__________________
-7.3 Powerstroke Diesel 15P Van 500k+ miles
-E320 '95 200k

Sold
-E320 Wagon 1994 155k
-300d Turbo '87 187k miles
-E320 1994 200k
-300d Turbo '84 245k (sold to Dan62)
-300d Turbo '84 180k
-300sd '80 300k
-190d '89 Non Turbo 2.5 5cyl 240k
Tom's Imports of Columbia Missouri Ruined the IP in changing leaky delivery valve O-Rings - Refused to stand behind his work. Mid-MO MB drivers-AVOID Tom's!
Reply With Quote
  #7
Old 04-27-2012, 05:58 PM
777funk's Avatar
Registered User

Join Date: Dec 2006
Posts: 944
any idea how to check the center bearing? Is it possible to check without pulling the drive shaft? It'll probably be a 2-3 hour plus job if I have to pull the drive shaft.

Plus it's almost pointless to do all that without putting money into new flex discs and a center bearing. I'm trying to keep this cheap.
__________________
-7.3 Powerstroke Diesel 15P Van 500k+ miles
-E320 '95 200k

Sold
-E320 Wagon 1994 155k
-300d Turbo '87 187k miles
-E320 1994 200k
-300d Turbo '84 245k (sold to Dan62)
-300d Turbo '84 180k
-300sd '80 300k
-190d '89 Non Turbo 2.5 5cyl 240k
Tom's Imports of Columbia Missouri Ruined the IP in changing leaky delivery valve O-Rings - Refused to stand behind his work. Mid-MO MB drivers-AVOID Tom's!
Reply With Quote
  #8
Old 04-28-2012, 06:20 AM
Registered User

Join Date: Aug 2002
Location: Southeastern PA
Posts: 2,878
Nick, as you're probably know there is a slip joint in the driveshaft. You need 41mm and 46mm open end wrenches to loosen the nut in order to "telescope" the driveshaft when replacing the flex discs. Before you go to the trouble of replacing the flex discs and center support you may want to simply loosen the nut to relieve any accident-related stress that is tending to bow the driveshaft. From my experience the rear flex disc is more problematic so inspect it carefully for cracks.
__________________
Fred Hoelzle
Reply With Quote
  #9
Old 04-28-2012, 08:06 AM
777funk's Avatar
Registered User

Join Date: Dec 2006
Posts: 944
Quote:
Originally Posted by Ferdman View Post
Nick, as you're probably know there is a slip joint in the driveshaft. You need 41mm and 46mm open end wrenches to loosen the nut in order to "telescope" the driveshaft when replacing the flex discs. Before you go to the trouble of replacing the flex discs and center support you may want to simply loosen the nut to relieve any accident-related stress that is tending to bow the driveshaft. From my experience the rear flex disc is more problematic so inspect it carefully for cracks.
So when you say loosen the nut to relieve any accident related stress, I don't leave it loose I'm assuming right? I'm guessing I tighten it back up. Will breaking it loose and re-tightening help relieve stress or realign?
__________________
-7.3 Powerstroke Diesel 15P Van 500k+ miles
-E320 '95 200k

Sold
-E320 Wagon 1994 155k
-300d Turbo '87 187k miles
-E320 1994 200k
-300d Turbo '84 245k (sold to Dan62)
-300d Turbo '84 180k
-300sd '80 300k
-190d '89 Non Turbo 2.5 5cyl 240k
Tom's Imports of Columbia Missouri Ruined the IP in changing leaky delivery valve O-Rings - Refused to stand behind his work. Mid-MO MB drivers-AVOID Tom's!

Last edited by 777funk; 04-28-2012 at 11:49 AM.
Reply With Quote
  #10
Old 04-28-2012, 05:48 PM
RANDY P's Avatar
Registered User

Join Date: Oct 2008
Location: Paris, Madrid, NYC, Mesa
Posts: 159
flexdisc or halfshaft CV joint.

Had the rear flex go on y C36- got to the point where sounded like someone banging on the car underneath with a sledgehammer under load.

Inspect it and it before the driveshaft rips through the floorpan and totals your car.
__________________
03 540I (GAK!!)
81 280E (W123)
70 LeMans Sport with pissed off Poncho 462"
1989 Silverado Step Side (under the knife- complete restomod)
Reply With Quote
  #11
Old 04-28-2012, 05:49 PM
RANDY P's Avatar
Registered User

Join Date: Oct 2008
Location: Paris, Madrid, NYC, Mesa
Posts: 159

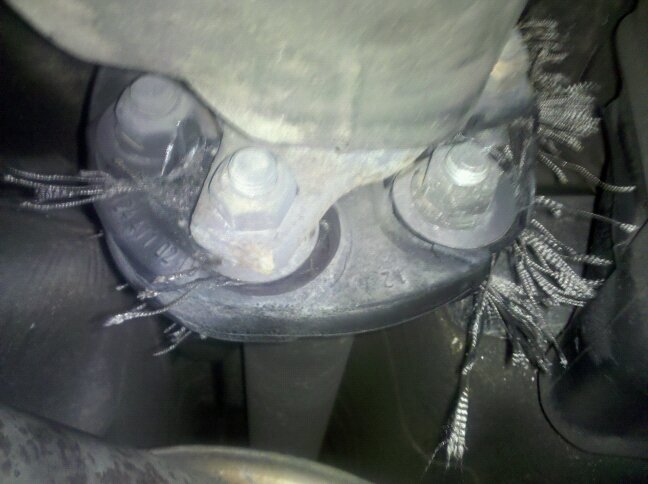

it looked like this

1500 miles from home when this happened.
Attached Thumbnails
vibration and tap tap tap sound from center of car on take off acceleration-flexdisc.jpg
__________________
03 540I (GAK!!)
81 280E (W123)
70 LeMans Sport with pissed off Poncho 462"
1989 Silverado Step Side (under the knife- complete restomod)
Reply With Quote
  #12
Old 04-30-2012, 06:24 AM
Registered User

Join Date: Aug 2002
Location: Southeastern PA
Posts: 2,878
Nick, sorry for not being more clear. Yes, you want to briefly loosen the nut to allow any accident-related stress to release, then retighten the nut.

It would be ideal if you could get your car on a dynamometer and observe the driveshaft motion when it starts to turn and makes the tapping sound.
__________________
Fred Hoelzle
Reply With Quote
