  #1
Old 04-28-2012, 12:55 AM
Registered User

Join Date: Apr 2012
Posts: 1
1994 E420 cuise control handle replacement

How do you get into steering column?

Reply With Quote
  #2
Old 04-28-2012, 05:52 AM
compress ignite's Avatar
Drone aspiring to Serfdom

Join Date: Feb 2004
Location: 32(degrees) North by 81(degrees) West
Posts: 5,554
Well

Section 54-2800 "R+R combination switch".

CAUTION/WARNING/ALERT !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
You will be "Effing Around" (Screwing With) the SRS System "Airbag"
MAKE DAMN SURE you've disabled the Capacitors that Store ALL the energy that
CAUSE that EXPLOSIVE DEVICE to "FIRE" !

1. Disconnect the Battery (Negative Pole First)
2. UN-Plug the RED 10 Pole Plug underneath the Passenger Side front footwell
to disable the SRS system.
3.If you've ANY Question as to whether or not you KNOW what you're Doing...
DON'T !
Seek Professional Advice!!!
A Broken Neck caused by an Accidental SRS discharge tends to attract Undertakers,Like Blood does Sharks!
Attached Thumbnails
1994 E420 cuise control handle replacement-screenhunter_02-apr.-28-04.45.gif   1994 E420 cuise control handle replacement-screenhunter_03-apr.-28-04.45.jpg   1994 E420 cuise control handle replacement-screenhunter_04-apr.-28-04.46.gif
__________________
'84 300SD sold
124.128

Last edited by compress ignite; 04-28-2012 at 06:22 AM.
Reply With Quote
  #3
Old 04-28-2012, 06:05 AM
compress ignite's Avatar
Drone aspiring to Serfdom

Join Date: Feb 2004
Location: 32(degrees) North by 81(degrees) West
Posts: 5,554

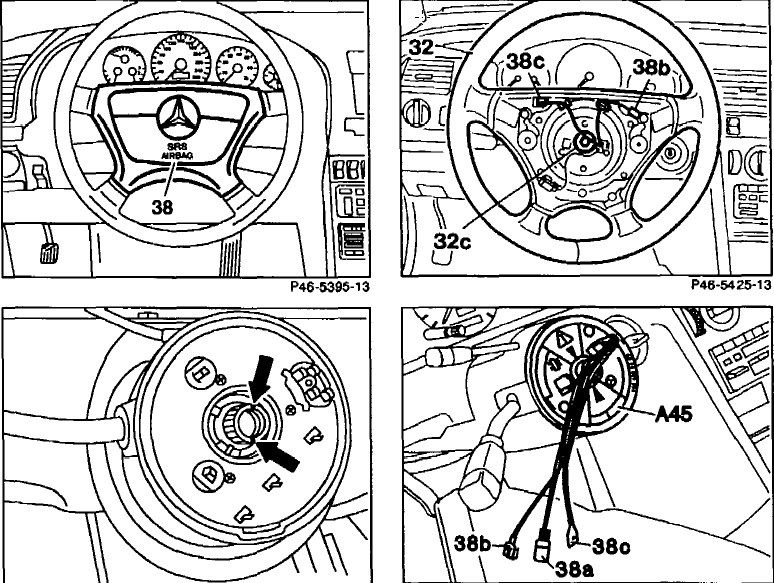

What they don't show you is...

How to get the Damn Wheel Off.

Important!

That "Bolt" that holds the Wheel onto the Steering Shaft is a Witch !(to get Loose) 'Have a 1/2 Inch 18" breaker bar available.
DO Not Re-use that Bolt. Get a NEW one.
Make SURE you MARK the Wheel's "Receiver" fitting in relationship to the Splined Steering Shaft,Before removing the Bolt!!!!!
(If you're "Off" by even one spline,the Wheel WILL NOT BE STRAIGHT.)
Attached Thumbnails
1994 E420 cuise control handle replacement-screenhunter_06-apr.-28-05.03.gif   1994 E420 cuise control handle replacement-screenhunter_07-apr.-28-05.04.gif   1994 E420 cuise control handle replacement-screenhunter_09-apr.-28-05.05.jpg   1994 E420 cuise control handle replacement-screenhunter_10-apr.-28-05.06.jpg   1994 E420 cuise control handle replacement-screenhunter_11-apr.-28-05.07.jpg

__________________
'84 300SD sold
124.128

Last edited by compress ignite; 04-28-2012 at 06:23 AM.
Reply With Quote
  #4
Old 04-28-2012, 06:30 AM
compress ignite's Avatar
Drone aspiring to Serfdom

Join Date: Feb 2004
Location: 32(degrees) North by 81(degrees) West
Posts: 5,554
At Last!

Cruise Control Stalk
Attached Thumbnails
1994 E420 cuise control handle replacement-screenhunter_13-apr.-28-05.31.gif   1994 E420 cuise control handle replacement-screenhunter_14-apr.-28-05.32.gif   1994 E420 cuise control handle replacement-screenhunter_15-apr.-28-05.32.gif

__________________
'84 300SD sold
124.128
