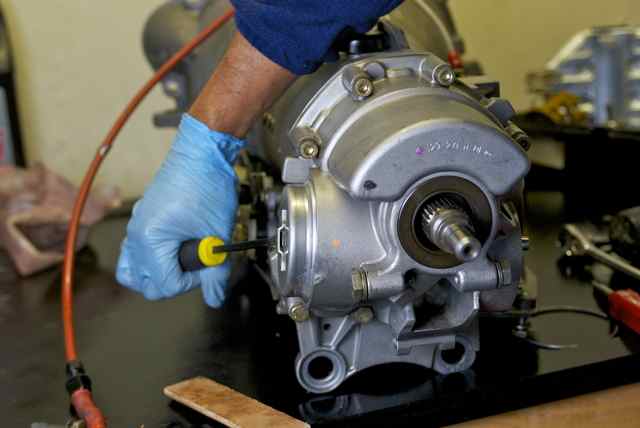

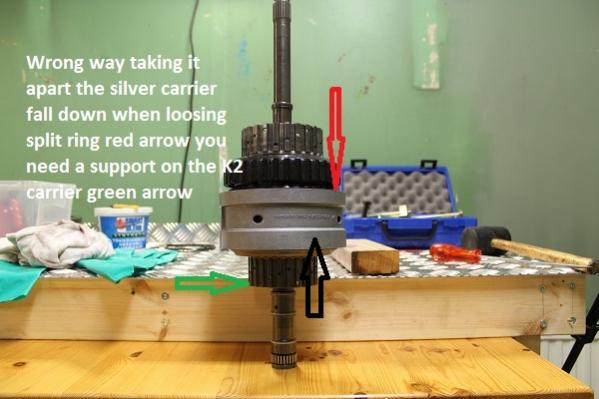

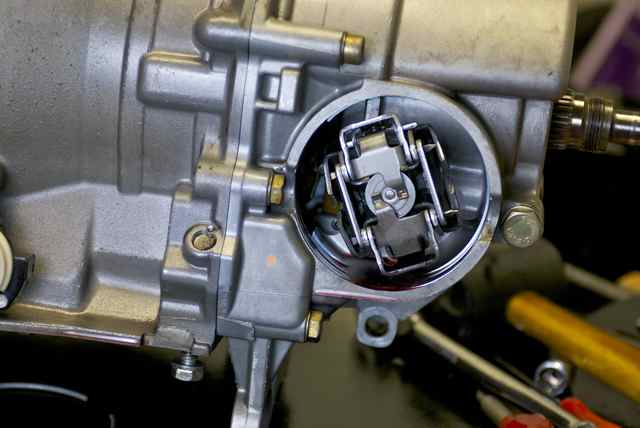

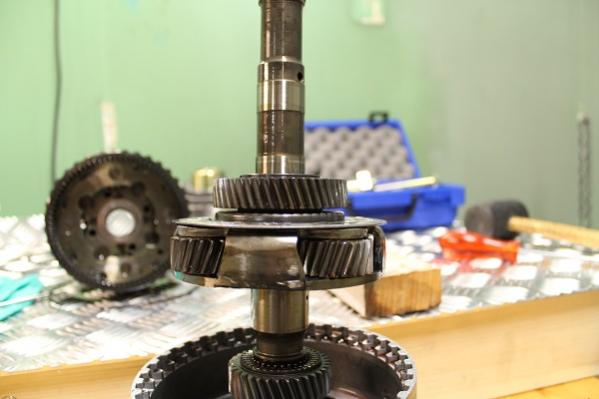

I have taking apart the main gear today and the plan is to change two o-rings at the F1 sprag clutch (one-way clutch). I made one mistake with the arrangement the main carrier (silver) fall down on me I was surprised but nothing happened you need another arrangement.
ATSG side 65 (722,5 ATSG paper book) is where I started from the disassembly you start from input shaft K1 too take it apart. No problem so far but I put it together some other day. Still waiting for the new lip seals I think they are the one that give me most concern. Might do the magazine cover trick. I made a plastic but it was too sharp cut the lip seal. |
#47
|
|||
|
|||

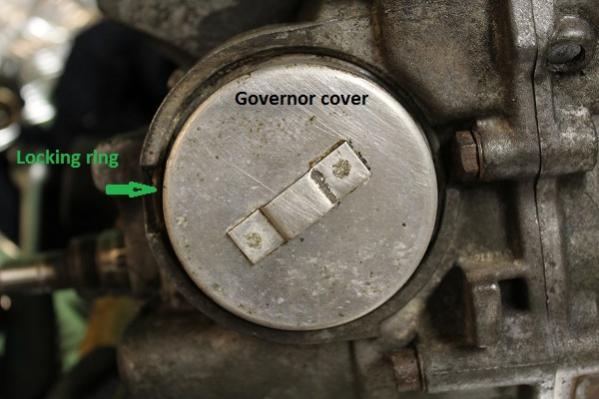

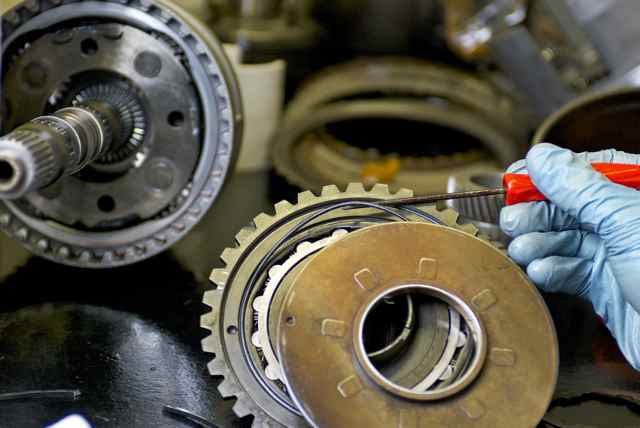

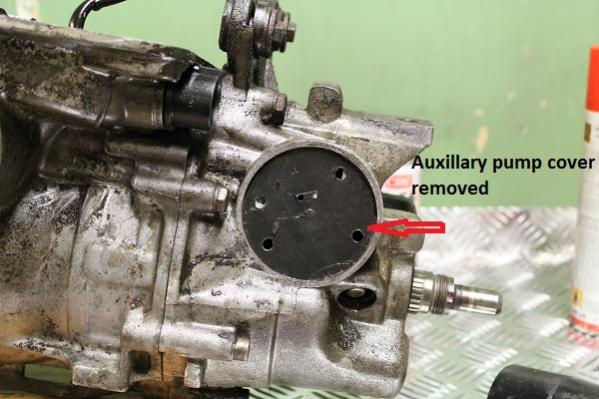

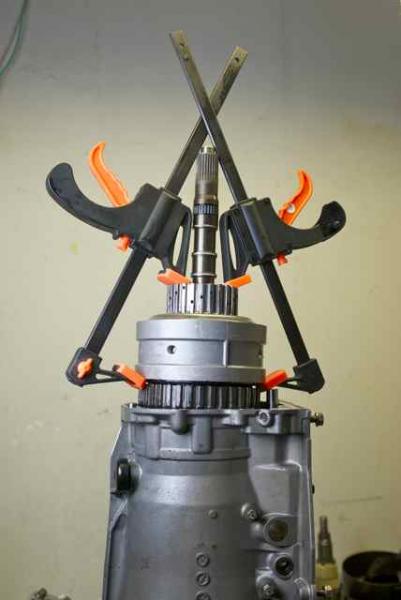

I hope I do not cut my lip seal, but I did replace the two o-rings in the planetary gear box, yet I had to use some wood working clamps to place the clip in, and the rear of the transmission served as an assembly jig.
|
#48
|
|||
|
|||
Nice when the seals are labeled my overhaul kit there is no label anywhere that's why I keep them on so I can compare them with the new ones.
|
#49
|
|||
|
|||

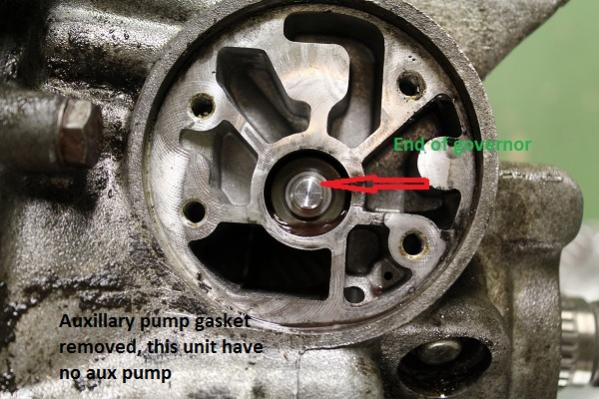

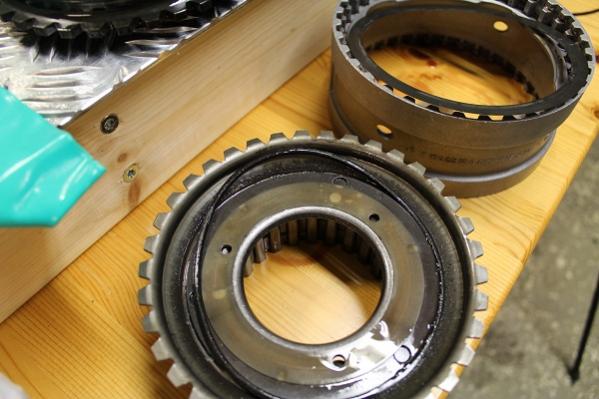

I'm keeping my old parts for comparison as you can see in the photo with the package, and the old parts in my hand.

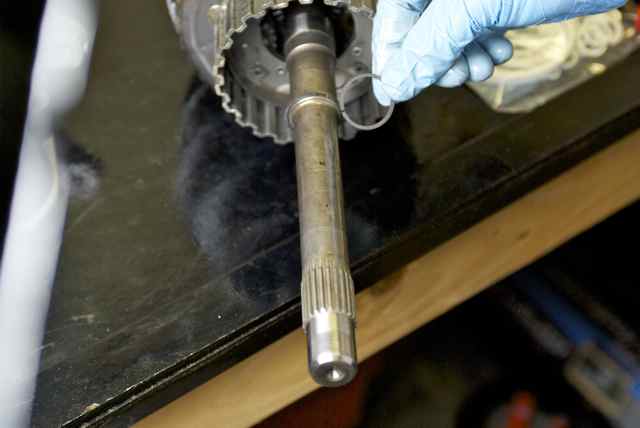

Do not forget these on the shafts. Martin |
#50
|
||||
|
||||
You guys are doing a great job on this thread - well I'm enjoying it anyway - keep up the good work.
