94 E320 Water Pump replace method

1994
Chassis: E320
Engine: M104.992

Just thought I'd post the way I changed out my water pump. Not that bad of a DIY job if you take your time.





1. Disconnect the ground cable.

REFIT: Reconnect.



2. Drain the coolant.
Open the expansion tank cap. Place a hose on the drain outlet of the radiator
at the bottom left of the unit.(about 3/8” OD vinyl hose will work, might need to
cut a small slit to get it to fit the drain outlet). Open the drain plug slowly and
gently.
Drain the engine block from the bolt which is located on the left bottom side of
the engine near the exhaust pipe. This is not absolutely necessary since most
of the block will drain when you pull the pump off.....although a bit messy.

REFIT: Use a 50/50 mix of Mercedes Anti-freeze (DO NOT use any other
types...unless you want to do this all again next year) and water. Make sure the drains
are closed. Add to the expansion tank. When it shows full, run the engine with the cap
off, with the heat on, until the temp raises to the point the thermostat is set for. Put the
cap on and continue running a few minutes. You will likely need to add more later.



3. Remove Fan Shroud
Unhook the center clasp and turn the narrow circle shroud to unlock, lay it over
the fan.
Remove clips on the shroud, pull up and then remove the circle.
Remove the black plastic cover at the front of the valve housing. (just behind the
fan)

REFIT: Lay the circle shroud over the fan. Reattach the shroud and connect the
circle to it. Replace the black plastic cover at the front of the valve housing.



4. Remove Fan with Visco Clutch
Make a “pulley securing tool” using a 3/16” x 12+” steel rod with a 45 degree
angle, 3/4” from the rod end.
Insert the 3/4” bent end behind the fan pulley, into the pre-cast groove, slowly
turn the fan by hand until it locks in place.
Take a long neck 8mm Allen Key and insert it into the hex bolt on the front of the
fan. Put a 3/4” x 18” pipe over the long part of the Allen key for leverage. USE
CARE NOT TO DAMAGE THE RADIATOR FINS.
Unscrew (normal turn) the hex nut...lean on it if necessary. Make sure the rod
keeps the pulley locked.
Remove the fan.

REFIT: Secure the fan well. You may or may not need to use the tool at the pulley
while reattaching.




5. Remove radiator hoses and thermostat housing.
Remove those which will obviously be in your way. Replace those that are hard
or cracked.

REFIT: Replace thermostat. Re-attach all hoses.


5. Remove the Serpentine Belt
Loosen the 10 mm Allen keyed bolt on the tension pulley by 1-2 full turns. This
is located to the right of the water pump pulley...about 4 o’clock position.
Use a 10mm hex socket for this....also might require some torque to bust loose.
Loosen the 13mm adjusting nut 1/2 turn on top of the tension adjuster. Its a long
bolt with a hollow interior located just to the right of the thermostat housing.
You should now be able to remove the belt. If it shows wear, replace it.

REFIT: Put the belt on the pulleys correctly. Turn the long 13mm tension nut
adjuster until there is 3/8 to 1/2” belt deflection between the long run of the pulleys. Do
not over tighten. Reset the white pointer on the pulley to the solid line at the left on the
indicator. Tighten the 10mm Allen bolt near the water pump pulley.


6. Remove the water pump and power steering pulleys.
These are 13mm hex nuts. Use a second wrench to counter the pulley from
turning while loosening.

REFIT: Bolt the pulleys back in place.



7. Remove the tension adjuster mechanism.
Completely remove the 10mm Allen keyed tension pulley bolt (this is the first
one you loosened in Step 5.)
Remove the “Y” bracket in front of the tension pulley.
Unscrew the hex bolt at the top of the little shock absorber on the tension system.
Remove the entire unit. If it is tough to get out of the space, hold off until you
loosen the power steering pump in the next step.

REFIT: Place the long tension nut through the bracket opening, bolt the shock
absorber in place, refit the Y bracket and put the 10mm Allen bolt back in. Make sure the
white pointer is in the marked area of the housing...don’t set it at this time.



8. Loosen the Power Steering Pump and move it to the right a little.
Unscrew the 4, 13mm hex bolts on the front face of the power steering pump.
They are the ones which make a square under the PS reservoir. One of these bolts
has a nut on the back side.

REFIT: Re-secure the PS pump with the proper bolts. ( you may want to first
re-install the tensioner device before tightening down the PS...allows a bit more room)



9. Remove the Water Pump.
Remove the solid heater pipe from the front of the pump. Leave this solid pipe
attached at the other end.
Use a 6mm Allen key and Allen socket to get to the 4 bolts holding the pump to
the block. They should now be accessible using a ratchet extension and/or
the Allen key levered with a small closed end wrench.

REFIT: Clean off the surface of the engine block. Insert O ring into the pump and
give the O ring a light layer of grease. Insert the weep drain tube to the bottom of the
pump. Mount the pump to the block.
Place the small O ring on the heater pipe (might want to also add some
grease to it and/or gasket gel). Reconnect it to the pump.


Last edited by whunter; 02-22-2010 at 10:00 AM. Reason: added engine number
Reply With Quote
  #2
Old 05-01-2003, 07:48 PM
Registered User

Join Date: Jul 2002
Location: Dallas
Posts: 330
I'm about to do a flush of my cooling system and came across this post. This guy should win the Pulitzer prize for literature. Nice of him to go to the trouble.

BTW, I can't find the drain plug for the block. Any hints?
Reply With Quote
  #3
Old 05-01-2003, 07:58 PM
Registered User

Join Date: Jul 2002
Location: Dallas
Posts: 330
I went ahead and called the local dealer. They were more than nice. Said pulling the drain plug can be a job trying to reinstall since it is a little difficult to access. Advised since I am going to change the t-stat and flush to do the following:

Drain the radiator and remove the stat.

Replace the housing without replacing the stat.

Detach the heater hose coming off the rear drivers side of the engine and flush from there.

Also said I could go back the other way and flush the heater core.

I am scared. Any comments?

Last edited by 95E320cab; 05-01-2003 at 10:21 PM.
Reply With Quote
  #4
Old 06-30-2003, 05:57 PM
Registered User

Join Date: Jun 2000
Location: Plano, TX
Posts: 2,566
I used this set of instructions to replace the water pump on my 1993 300E last weekend. Wanted to add one comment/correction for any future users.

Step 8 says to remove the four hex bolts on the front of the power steering pump, below the reservoir. Don't do it! These hold the nose of the pump to the body of the pump, when you remove them the nose comes off and all your power steering fluid dumps onto the floor of the garage! Don't ask how I know this.

On my car, the PS pump is mounted via four bolts. Two of these are shared with the tensioner, and two are unique to the PS pump. After removing the tensioner assembly, remove the two PS bolts *from behind the PS pump*. The pump may then be moved to the right for better access to the water pump.

Other than that one minor quibble, everything was spot on. Took me about 4 hours of labor to do the whole job. Not a bad way to save six hundred bucks.

- JimY
Reply With Quote
  #5
Old 11-13-2005, 07:14 PM
tawgley's Avatar
Registered User

Join Date: Jan 2005
Location: Port Saint Lucie, FL
Posts: 16
94 e320 Water Pump Replacement

Just finished this job and thought I would post some comments based on my experience... My notes are in brackets below the original poster's instructions ...

Quote:
Originally Posted by 320wheels
Just thought I'd post the way I changed out my water pump. Not that bad of a DYI job if you take your time.

1. Disconnect the ground cable.
REFIT: Reconnect.
2. Drain the coolant.
Open the expansion tank cap. Place a hose on the drain outlet of the radiator at the bottom left of the unit.(about 3/8” OD vinyl hose will work, might need to cut a small slit to get it to fit the drain outlet). Open the drain plug slowly and gently. Drain the engine block from the bolt which is located on the left bottom side of the engine near the exhaust pipe. This is not absolutely necessary since most of the block will drain when you pull the pump off.....although a bit messy.
[ did not drain until after the pump was removed ... drains more completely and allows back flush of both the block and radiator using hose in the block opening with the drain at the rear open and in the lower radiator hose entry forcing the old coolant out the top.]

REFIT: Use a 50/50 mix of Mercedes Anti-freeze (DO NOT use any other
types...unless you want to do this all again next year) and water. Make sure the drains are closed. Add to the expansion tank. When it shows full, run the engine with the cap off, with the heat on, until the temp raises to the point the thermostat is set for. Put the cap on and continue running a few minutes. You will likely need to add more later.
[I used Prestone's new 'All Makes' antifreeze coolant mix 50/50 and put coolant in block before putting in thermostat and in radiator from top hose entry before putting on that hose but AFTER I put on the lower hose .. needed to add very little and did not have to worry too much about trapped air]


3. Remove Fan Shroud
Unhook the center clasp and turn the narrow circle shroud to unlock, lay it over the fan. Remove clips on the shroud, pull up and then remove the circle. Remove the black plastic cover at the front of the valve housing. (just behind the fan)

REFIT: Lay the circle shroud over the fan. Reattach the shroud and connect the circle to it. Replace the black plastic cover at the front of the valve housing.



4. Remove Fan with Visco Clutch
Make a “pulley securing tool” using a 3/16” x 12+” steel rod with a 45 degree angle, 3/4” from the rod end. Insert the 3/4” bent end behind the fan pulley, into the pre-cast groove, slowly turn the fan by hand until it locks in place. Take a long neck 8mm Allen Key and insert it into the hex bolt on the front of the fan. Put a 3/4” x 18” pipe over the long part of the Allen key for leverage. USE CARE NOT TO DAMAGE THE RADIATOR FINS. Unscrew (normal turn) the hex nut...lean on it if necessary. Make sure the rod keeps the pulley locked. Remove the fan.
[I did not remove the fan .. found I could do the job easily without removing it]
REFIT: Secure the fan well. You may or may not need to use the tool at the pulley while reattaching.

5. Remove radiator hoses and thermostat housing. Remove those which will obviously be in your way. Replace those that are hard or cracked.

REFIT: Replace thermostat. Re-attach all hoses.


5. Remove the Serpentine Belt
Loosen the 10 mm Allen keyed bolt on the tension pulley by 1-2 full turns. This is located to the right of the water pump pulley...about 4 o’clock position. Use a 10mm hex socket for this....also might require some torque to bust loose. Loosen the 13mm adjusting nut 1/2 turn on top of the tension adjuster. Its a long bolt with a hollow interior located just to the right of the thermostat housing. You should now be able to remove the belt. If it shows wear, replace it.

REFIT: Put the belt on the pulleys correctly. Turn the long 13mm tension nut adjuster until there is 3/8 to 1/2” belt deflection between the long run of the pulleys. Do not overtighten. Reset the white pointer on the pulley to the solid line at the left on the indicator. Tighten the 10mm Allen bolt near the water pump pulley.


6. Remove the water pump and power steering pulleys. These are 13mm hex nuts. Use a second wrench to counter the pulley from turning while loosening.

REFIT: Bolt the pulleys back in place.

7. Remove the tension adjuster mechanism. Completely remove the 10mm Allen keyed tension pulley bolt (this is the first one you loosened in Step 5.)
Remove the “Y” bracket in front of the tension pulley. [This is a stamped steel 'frame' that holds the assembly in place .. the tension adjuster subassembly on the back of this assembly is NOT attached and will come off .. note the way it is on so you can replace it correctly]
Unscrew the hex bolt at the top of the little shock absorber on the tension system. Remove the entire unit. If it is tough to get out of the space, hold off until you loosen the power steering pump in the next step.

REFIT: Place the long tension nut through the bracket opening, bolt the shock absorber in place, refit the Y bracket and put the 10mm Allen bolt back in. Make sure the white pointer is in the marked area of the housing...don’t set it at this time.

8. Loosen the Power Steering Pump and move it to the right a little. Unscrew the 4, 13mm hex bolts on the front face of the power steering pump. [DO NOT DO THIS .. the pump is easily removed by removing one bolt at the top back and loosening the one at the lower back .. when replacing them leave them loose until the tensioner assembly is in place and it's bolts are started as there is a bracket on the back of the PS pump assembly whose bolts holes must be aligned with both the bolts (2) at the back of the PS pump and the two bolts on the right side of the Y bracket]

REFIT: Re-secure the PS pump with the proper bolts. ( you may want to first re-install the tensioner device before tightening down the PS...allows a bit more room) [Definitely do install the tensioner to get all bolt holes aligned]

9. Remove the Water Pump. Remove the solid heater pipe from the front of the pump. Leave this solid pipe attached at the other end. [I suggest removing the solid pipe .. this allows much better access to the 6mm hex screw on the upper forward part of the water pump .. with the pipe out of the way I had little trouble getting this screw out with an round head allen wrench, the other three bolts are 13 mm bolts, not allens and a pretty easy to get at with some socket extensions, the solid pipe is secured by a bracket with a 5mm allen in the top center of the block]
Use a 6mm Allen key and Allen socket to get to the 4 [No .. one allen, three hex bolts] bolts holding the pump to the block. They should now be accessible using a ratchet extension and/or the Allen key levered with a small closed end wrench.

REFIT: Clean off the surface of the engine block. Insert O ring into the pump and give the O ring a light layer of grease. Insert the weep drain tube to the bottom of the pump. Mount the pump to the block. Place the small O ring on the heater pipe (might want to also add some grease to it and/or gasket gel). Reconnect it to the pump.

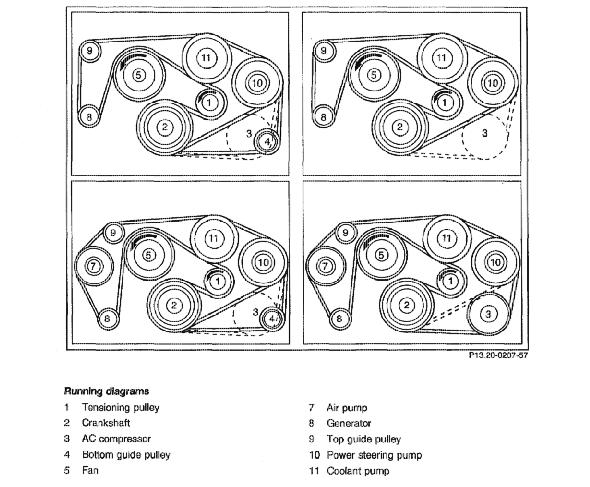

Some final notes .. pay close attention to the path of the serpentine belt .. there is a diagram here: http://www.peachparts.com/shopforum/attachments/tech-help/12017-1993-300se-belt-tensioner-adjustment-running-diagrams-m104.jpg
... it is easy to mess this up and as a result never get tension on the belt .. the lower right bolt on the Y bracket is a long bolt and a nut so you must have a socket for each end and it is easy to get the back socket on the PS bolt rather than on the nut since you can't see them at all ... as a matter of fact most of this job is done 'in the blind' with many things you cannot see.

and to rant in closing .. I have owned new MB's since the early 70's .. I bought them becaused they were durable, well engineered and held their value well .. this car is my wife's and I have an '03 E model as well .. I can no longer say they are well engineered .. no wonder the shop hours on this job are 5!!! .. there appears to be little thought to after the sale service or to durablility (the '03 has already had more than it's share of problems in very few miles) .. so as much as I would like it to be otherwise I see no reason to continue with MB .. the litany of problems with the '94 is endless and I will dump it real soon ... apologies for the rant ..
Reply With Quote
  #6
Old 02-22-2010, 12:13 AM
Texholdem

Join Date: Mar 2007
Location: Dallas
Posts: 756
is this replacement procedure also applicable for 1990 300CE with engine M104.980? Thanks!
__________________
1996 E320 since 1/16/08, 171K miles as of Feb 2011

---------------------------------------------------------
1989 300CE - R.I.P. Dec 29 2007
Other MBs (sold): 1992 300E-24 - 1979 350SLC - 1984 230E - 1990 300CE
Reply With Quote
  #7
Old 02-22-2010, 10:10 AM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,380
Answer

Quote:
Originally Posted by Texholdem View Post
is this replacement procedure also applicable for 1990 300CE with engine M104.980? Thanks!
Looks the same to me.







Have a great day
Attached Thumbnails

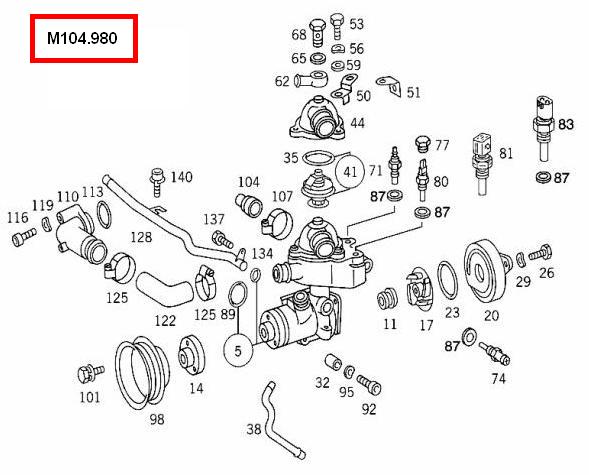

94 E320 Water Pump replace method-m104.980.jpg   94 E320 Water Pump replace method-m104.992.jpg
__________________
ASE Master Mechanic
asemastermechanic@juno.com

Prototype R&D/testing:
Thermal & Aerodynamic System Engineering (TASE) Senior vehicle instrumentation technician.
Noise Vibration and Harshness (NVH).
Dynamometer.
Heat exchanger durability.
HV-A/C Climate Control.
Vehicle build.
Fleet Durability
Technical Quality Auditor.
Automotive Technical Writer

1985 300SD
1983 300D
1984 190D
2003 Volvo V70
2002 Honda Civic

https://www.boldegoist.com/
Reply With Quote
  #8
Old 01-22-2011, 02:14 PM
Ocean View's Avatar
Registered User

Join Date: Feb 2005
Posts: 169
Will this procedure work on a W210 with the M104 engine?
__________________
2010 W212 E350 Sport
1996 W210 E320 (220K miles)
Reply With Quote
  #9
Old 01-22-2011, 11:15 PM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,380
Answer

Quote:
Originally Posted by Ocean View View Post
Will this procedure work on a W210 with the M104 engine?
It should be the same.
Attached Thumbnails
94 E320 Water Pump replace method-w124032_e320_water-pump-pic.jpg
Reply With Quote
  #10
Old 05-29-2012, 08:52 PM
Registered User

Join Date: Jan 2011
Location: phoenix
Posts: 1
Coolant Pump Replacement 1993 300E 3.2L 104.992

Thanks for the great advice on replacing my coolant pump. I appreciate everyone"s comments. The job went smoothly and the car is running fantastic. That car sat for 10 months in Phoenix until I was able to work on it. It started on the first try. Amazing luck or what. I am now in the process of changing the oil, spark plugs, fuel filter, and researching how to fix the AC. My daughter drives the car and was away at college since it first began spewing coolant out the weep hole. It has 150.000 on it and still looks and drives as well as my new cars. I'm sure something will need repair soon, but what a car when it's running. My next purchase is going to be a 1991 420 SEL that has been taken care of like it should have been. Thanks for the help!
Reply With Quote
  #11
Old 05-30-2012, 01:57 PM
Posting since Jan 2000

Join Date: Sep 2011
Posts: 7,135
On the 104 engine, the use of Snap On number FLX13 will help alot. It is a flex, universal joint with a 1/4" shaft that will get at the water pump bolts with not nearly as much accessory dismantling. I think I paid less than $30 for mine, but that was probably 10 or 12 years ago now. Even if it were $50, I would pay the money to keep from having to do so much field stripping.

The thin shaft on the tool will make you think you are going to twist it in half before the bolt comes loose, but just keep torquing on it. It won't break.

Hope this helps,
__________________
2001 SLK 320 six speed manual
2014 Porsche Cayenne six speed manual

Annoy a Liberal, Read the Constitution
Reply With Quote
  #12
Old 07-01-2013, 02:35 AM
sasquatchgeoff's Avatar
Cascade Foothill Lurker

Join Date: May 2007
Location: Portland, OR
Posts: 561
On a '93 104.942, was able to change out coolant pump without moving the PS pump. Delicate maneuver getting the old out and the new in, but do-able.

Green coolant is a curse. Had a green blob accumulated in the inlet. Stopped the radiator up. Flushed system with citric, refilled with G-05. PO relied on Jiffy Lube for maintenance.

I will also say that this series (104.9XX) is a bit under-cooled IMHO, judging by the size of the radiator. It is a delicate balance, and requires regular maintenance to keep the system operating consistently. UPDATE - The thermostat must be re-installed with the small hole/ball valve at the highest position in the recess housing. This prevents air-lock. Otherwise vacuum will be present via thermal expansion/contraction and the engine may overheat.

__________________
327K on 1986 W201, 602.911, 722.414 2.5 190D ("The Red Baron")
139K on 1993 W124, 104.942, 722.433 2.8 300E ("Queen")

http://farm5.static.flickr.com/4081/...0bb92d3c_m.jpg http://i370.photobucket.com/albums/o...g?t=1325284354

Do not worry about your difficulties in Mathematics. I can assure you mine are still greater.
- Albert Einstein

take a walk down memory lane...

Last edited by sasquatchgeoff; 07-05-2013 at 09:49 AM.
Reply With Quote
Reply

Bookmarks

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are On
Pingbacks are On
Refbacks are On


Similar Threads
Thread Thread Starter Forum Replies Last Post
water pump problem on 560sl? sms Tech Help 0 07-02-2004 11:44 PM
Water Pump replacement 190E andy190380 Tech Help 1 06-10-2004 11:21 AM
Radiator blew up Scott98 Diesel Discussion 15 02-24-2004 07:57 PM
Car smokes pretty bad under hard boost 87300SDLTurbo Tech Help 7 11-27-2002 04:47 AM
Water Pump Success! Mr. BILL Tech Help 0 02-27-2002 11:29 PM



All times are GMT -4. The time now is 12:05 PM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2023, vBulletin Solutions, Inc.
Search Engine Optimization by vBSEO 3.6.0
Copyright 2018 Pelican Parts, LLC - Posts may be archived for display on the Peach Parts or Pelican Parts Website -    DMCA Registered Agent Contact Page
