190e 2. Transmission Doesn't Lower Much

I'm trying to replace the shift bushing and the vac line. I have the drive shaft pushed back so it isn't binding on that. Is there a trick to this? It will only drop a few inches. Maybe take the engine mount lower bolts of and raise the engine a little?

Reply With Quote
  #2
Old 12-19-2014, 12:50 PM
Senior Member

Join Date: Nov 2002
Posts: 829
remove all the exhaust hangers and support the tailpipe from the rear bumper with a bungi cord. the exhaust acts as a lever. disconnect it from the trans, too. all that work will give you about 2-3 more inches. good luck, chuck.
Reply With Quote
  #3
Old 12-19-2014, 06:07 PM
Registered User

Join Date: Jul 2013
Location: Austin
Posts: 412

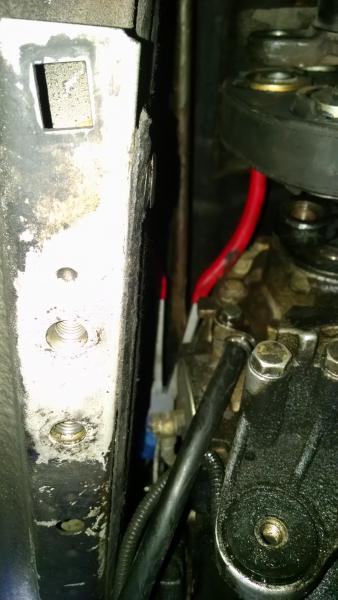

I forgot to mention the transmission to exhaust bracket was also removed. Half complete. I actually got it on. Jacking up the engine lowered it somewhat. Don't think that special installer tool in the pic is still there because I lost interest. It's wedged and stuck.

Time to shower up to take the family out for chips/salsa/margaritas and Christmas lights. To be continued...
Attached Thumbnails
190e 2.  Transmission Doesn't Lower Much-img_20141219_165216560.jpg
Reply With Quote
  #4
Old 12-20-2014, 04:15 PM
Registered User

Join Date: Jul 2013
Location: Austin
Posts: 412
OK I did as porkface suggested and dropped the rear exhaust. I did it in stages, lowering the tranny some, then lowering the exhaust some. By the time I was finished, the exhaust was resting on the floor jack which was in the full down position. This allowed the transmission to lower considerably more. Of course I had loosened the fan shroud prior to beginning. Thanks porkface!

On to the next issue... My KTC Tools bushing installer did not seem up to the task. I don't know if it wasn't long enough, or if the part of the tool where you insert the bushing was to small. The bushing fit very loosely on the insert. Or maybe I was doing something wrong. But either way, I tested it on the transmission sitting on my workbench and found the bushing would just squish and was never going to make it past the lip.

So, I cut the bushing, and then cut another small slice of to make it smaller in diameter. I test fit it on the workbench transmission and it went on, but even then not that easily. I navigated it onto its final destination with some tape and two large flathead screwdrivers. After enough cussing it was installed.

Shifting is now very crisp. Pain in the but alert on this repair though!


Last edited by liquiddog; 12-20-2014 at 09:29 PM.
