  #16
Old 10-27-2016, 09:08 AM
Registered User

Join Date: Jan 2006
Location: Tucson, AZ
Posts: 3,831
Soldering is my preferred method but a good high quality crimp will serve the purpose.

Soldered joints provide the best connection but are more susceptible to breaking due to the fact the actual area of contact between the stranded wire and the connector is slightly less flexible than the wires.

Crimped ends are not as secure and are more prone to corrosion at the connection but withstand movement/vibration better.

Six of one, half dozen of the other.

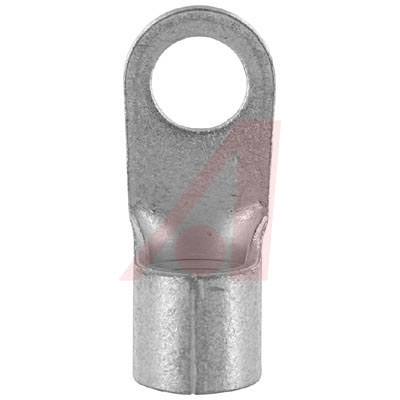

This style of crimp, not the "Mickey Mouse" pieces of crap usually found in the "automotive" stores.

Is there an easy w124 alternator upgrade?-crimp.jpg
__________________
“Whatever story you're telling, it will be more interesting if, at the end you add, "and then everything burst into flames.”
― Brian P. Cleary, You Oughta Know By Now

Last edited by Mike D; 10-27-2016 at 10:18 AM.
Reply With Quote
  #17
Old 10-27-2016, 01:44 PM
babymog's Avatar
Loose Cannon - No Balls

Join Date: Jan 2006
Location: Northeast Indiana
Posts: 10,767
A crimp has the best electrical connection, if you're concerned about corrosion put a piece of heat-shrink with inernal sealer, available at most electrical supply and automotive parts places. An auto-electric, industrial industrial supplier, or marina will be able to crimp for you.

Solder connections are higher resistance, and can come loose over time. Even if you prefer solder, crimp first and solder to seal it.

If your alternator is bad, I'm not sure why you feel a need to upgrade. If you have additional loads I understand the need, if only stock loads the factory alternator with a proper size battery is good. If it's not charging properly, ... you've found the problem. Quite possibly just the regulator, which on your alternator is a 10minute job and last time I needed one it was under $40. I'd start there unless you have the ability to test the output.
__________________

Gone to the dark side

- Jeff
Reply With Quote
  #18
Old 10-27-2016, 02:09 PM
lsmalley's Avatar
Registered User

Join Date: Oct 2006
Location: California
Posts: 1,787
Quote:
So my 80a alternator is struggling and I have replaced the VR already, but it's still only putting out 12.7v and dipping as low as 12.2v sometimes when I have all accessories on. Also replaced battery last week as it was 4yrs old. This is a reman Bosch al66x and it has 105k on it now.
He's already changed the VR and stated the output was not sufficient. His battery is also new. I had this problem a few weeks ago and it was in fact something wrong with the alternator. When it got hot, the output would not even charge the battery and if I turned on my a/c, the sudden draw would shut off my radio....unless I turned the ac on while giving it gas. When I removed the black plastic cover from the alternator, there were small pieces of solder that fell out. Never found it what the issue was, just replaced the alternator for a brand new one under AutoZone's lifetime replacement. All is good now. I support the upgrade of an alternator though, there are only pros to doing this and no cons that I know of.
__________________

1990 190E 2.6L
Reply With Quote
  #19
Old 10-27-2016, 05:05 PM
ps2cho's Avatar
Registered User

Join Date: Jun 2006
Location: Chandler, Arizona
Posts: 3,469
Between my amplifier, higher draw aux fans up front for our brutal summers, I already wanted to upgrade when my alternator was done for....so it's time!

Good information about crimping - I will get the cable ordered and see if I can find some electrical connectors that will work for a 4ga cable.
__________________
W124-Zone.com
2008 Black Mercedes E350 4Matic Sport P1
1988 Pearl Grey Metallic Mercedes 300TE - 186k
2014 Jeep Wranger Unlimited Sahara - 50k
http://www.w124-zone.com/downloads/p...desig300te.jpg.http://www.w124-zone.com/downloads/p...50/e350sig.jpg
Reply With Quote
  #20
Old 10-27-2016, 08:05 PM
Registered User

Join Date: Jan 2012
Posts: 5,415
Crimps are fine, as stated soldering can lead to a cracked wire down the road.

The secret to a quality crimped joint is to use a good crimp tool. What you want to achieve is a "gas tight" cold weld. This is where the pressure is high enough, the wire is fused to the lug.

In a pinch I've slipped a piece of clean copper tube over the wire, pounded the end flat then drilled a hole at the end. Leave the wire end slightly round to act as a lead in for flexing rather than a sudden stop. Tinned copper, as used on most lugs, is better from a corrosion standpoint but this works pretty well.

Have a lug and no crimper? Find an open end wrench that fits the barrel of the lug, clamp the wrench in a vise with the open end up, place the lug in the wrench. If you are using a 3/8" open end, select a 3/8" socket extension to act as a punch and place the square end inline with the wrench and hit with a hammer a time or two. Instant crimp

The wrench constrains the lug from ovaling and extension from escaping ( in one direction ), it also makes for a semi circle on one end. The "punch" forms the cold weld.
Reply With Quote
  #21
Old 10-27-2016, 11:05 PM
ps2cho's Avatar
Registered User

Join Date: Jun 2006
Location: Chandler, Arizona
Posts: 3,469
Well that was fast shipping! I was hoping the listing was legit when it said NEW! Hit the jackpot for $124






__________________
W124-Zone.com
2008 Black Mercedes E350 4Matic Sport P1
1988 Pearl Grey Metallic Mercedes 300TE - 186k
2014 Jeep Wranger Unlimited Sahara - 50k
http://www.w124-zone.com/downloads/p...desig300te.jpg.http://www.w124-zone.com/downloads/p...50/e350sig.jpg
Reply With Quote
  #22
Old 10-28-2016, 08:30 AM
Registered User

Join Date: Dec 2006
Posts: 2,216
If it isn't too much trouble, could you post a clearer shot of the test sheet? That's a good one for the files.
Reply With Quote
  #23
Old 10-28-2016, 06:21 PM
Registered User

Join Date: Jan 2012
Posts: 5,415
I say Bosch copy not actual Bosch. The back cover on an OE Bosch has data printed on it and the black cap on the regulator also has Bosch markings.

No way to tell quality unless it is run for a while. Also, amp output will drop off as the alternator reaches operating temp.
Reply With Quote
  #24
Old 10-29-2016, 10:57 AM
lsmalley's Avatar
Registered User

Join Date: Oct 2006
Location: California
Posts: 1,787
Quote:
Originally Posted by ps2cho View Post
Well that was fast shipping! I was hoping the listing was legit when it said NEW! Hit the jackpot for $124






Make sure that you use the old pulley.
__________________

1990 190E 2.6L
Reply With Quote
  #25
Old 11-01-2016, 12:34 AM
ps2cho's Avatar
Registered User

Join Date: Jun 2006
Location: Chandler, Arizona
Posts: 3,469
Got it installed using the 4ga cable. I bought some 10ga lugs, but they vanished and couldnt find them anywhere. I'll get the factory 10ga wires in a few days and take a photo, but for now it starts up and I get 14.5v with all accessories off (cold) and 13.7v with EVERYTHING on - lights, A/C, dual aux fans, fogs, radio, amplifier.

I'll post the hot voltage in a few days once I get the remaining 10ga wires on. Right now just have wire nuts on them, so not ideal to drive yet.

Can recommend this ebay seller for the 4ga cable:
http://www.ebay.com/itm/381118203401?rmvSB=true
- fantastic cable and looks factory in black.

Closer up of specs:








__________________
W124-Zone.com
2008 Black Mercedes E350 4Matic Sport P1
1988 Pearl Grey Metallic Mercedes 300TE - 186k
2014 Jeep Wranger Unlimited Sahara - 50k
http://www.w124-zone.com/downloads/p...desig300te.jpg.http://www.w124-zone.com/downloads/p...50/e350sig.jpg
Reply With Quote
  #26
Old 11-01-2016, 12:38 AM
lsmalley's Avatar
Registered User

Join Date: Oct 2006
Location: California
Posts: 1,787
Nice! Thanks for the update.
__________________

1990 190E 2.6L
Reply With Quote
  #27
Old 11-01-2016, 04:13 AM
w123fanman's Avatar
Registered User

Join Date: Jun 2011
Location: Georgia Tech, Atlanta, GA
Posts: 1,362
You may also notice your light output is better. That was the case with my brother's W116 300SD when we put in a 150 amp alternator and ground upgrades.
__________________
1980 300SD 183K- Brother's
1983 300D manual 100K chassis- Dad's
1990 Lexus LS400 189k- Brother's
1991 190E 2.3-190D (87, 320K mile) conversion project- Mine
1993 190E 2.6 Sportline Limited Edition 207K-Mine
1993 190E 2.6 Sportline Limited Edition 91K-Mine
2003 Sprinter 2500 Passenger 205K-Dad's
1996 Mercury Grand Marquis LS 240K- Head gasket failure
2006 Mercury Grand Marquis LS 80K-Mom's
Parts cars:
1977 240D Auto-RIP
1979 300SD
1980 300SD
1983 240D-RIP
1993 190E 2.6-RIP
Reply With Quote
  #28
Old 11-01-2016, 11:30 PM
ps2cho's Avatar
Registered User

Join Date: Jun 2006
Location: Chandler, Arizona
Posts: 3,469
Drove it around tonight and works fantastic. When I open the windows the lights no longer dim and I am getting 13.5v with all accessories on. Average driving conditions nets me around 13.8v and nothing on 14.0v with the car hot.

Mission successful!
__________________
W124-Zone.com
2008 Black Mercedes E350 4Matic Sport P1
1988 Pearl Grey Metallic Mercedes 300TE - 186k
2014 Jeep Wranger Unlimited Sahara - 50k
http://www.w124-zone.com/downloads/p...desig300te.jpg.http://www.w124-zone.com/downloads/p...50/e350sig.jpg
Reply With Quote
