'08 S550 M273 engine front left oil leak

I noticed an oil leak when last changing the oil. However, I cannot really determine where it is coming from. Any thoughts on oil leaks for the M273 (5.5 ltr) towards the front left side of the engine? Thank you.
__________________
2008 S550
2010 GLK350
1997 E420 (retired)
2005 CLK500 (retired)
Reply With Quote
  #2
Old 04-09-2019, 07:48 PM
Registered User

Join Date: Oct 2004
Posts: 3,225
The oil cooler/oil filter housing is a common leaker. The part is updated so best to replace the whole shebang rather than try to reseal it.
__________________
90 300TE 4-M

Turbo 103, T3/T04E 50 trim
T04B cover .60 AR
Stage 3 turbine .63 AR
A2W I/C, 40 LB/HR
MS2E, 60-2 Direct Coil Control
3" Exh, AEM W/B O2
Underdrive Alt. and P/S Pulleys,
Vented Rear Discs, .034 Booster.
3.07 diffs, 1st Gear Start

90 300CE 104.980
Milled & ported head, 10.3:1 compression
197 intake cam w/20 advancer
4 ignition advance
PCS TCM2000 running 722.6 trans, 600W PWM fan, water injection
Sportline sway bars
V8 rear subframe, Quaife ATB 3.06 diff
Reply With Quote
  #3
Old 04-09-2019, 09:09 PM
apb apb is offline
Registered User

Join Date: Mar 2001
Location: Houston, Texas
Posts: 450
Would you happen to know the replacement part number?
Reply With Quote
  #4
Old 04-10-2019, 11:59 AM
Registered User

Join Date: Aug 2017
Location: South NJ
Posts: 81

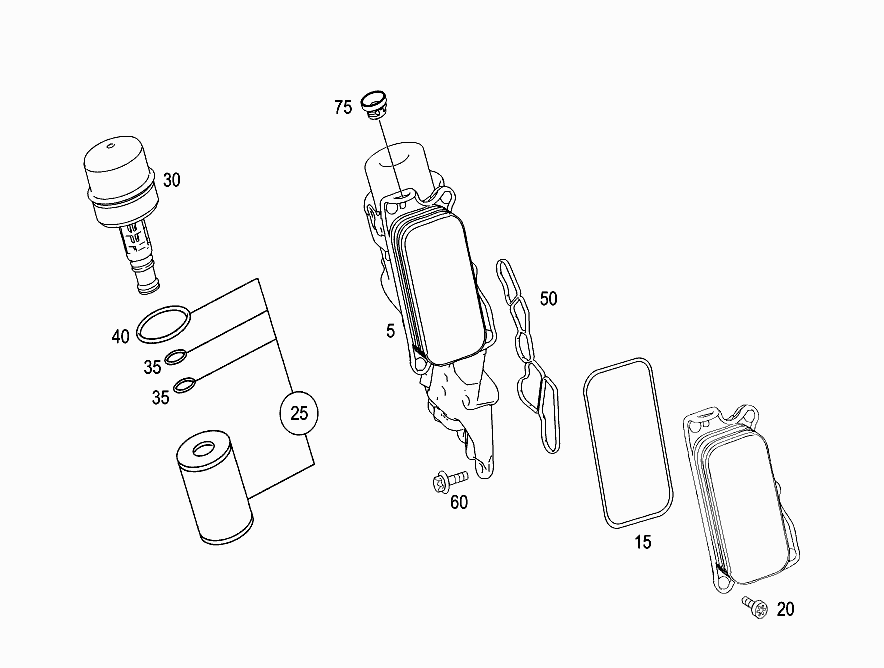

Items 15,50.
I think you should clean the spot and try to locate the faulty component, how many miles are on it?
Attached Thumbnails
'08 S550 M273 engine front left oil leak-ebcd5b204a587274cceac93bf1201a2b.png   '08 S550 M273 engine front left oil leak-273-18.png
Reply With Quote
  #5
Old 04-10-2019, 12:01 PM
ILUVMILS's Avatar
Senior Member

Join Date: Sep 2002
Posts: 2,588
Charge air pipe o-ring, very common............
Reply With Quote
  #6
Old 04-10-2019, 12:03 PM
apb apb is offline
Registered User

Join Date: Mar 2001
Location: Houston, Texas
Posts: 450
Thank you all. Not sure what that air pipe o-ring is but will try to figure it out.
__________________
2008 S550
2010 GLK350
1997 E420 (retired)
2005 CLK500 (retired)
Reply With Quote
