Problems with '96 C280... Expert Needed

I am currently having two problems which I beleive could be vacum related. My rearheadrests won't go down and my trunk will not release via the remote or the button on the center console, when I hit either button I do hear some noise from the rear of the vehicle, when its the headrests i hear a click and the trunk makes the sound of what seems to be a motor. Anyways I popped the hood and took at look a the vacum lines that are present in the upper left hand corner of the front of the car. I have attached some pics of it... I noticed two things... 1) one of the plugs is missing a tube 2) one of the tubes' plugs is black, while the rest are grey... Here is a text diagram

GREY---BLACK (WHITE STRIPE)---GREEN
/______________________________\
EMPTY-----------------------WHITE (RED STRIPE)
\______________________________/
WHITE---BLACK (WHITE STRIPE)---REDish ORANGE

The red one COULD have a white stripe but I couldn't really tell b/c it was dark outside. If anyone could check their '96 C280's to see if the they match my configuration or if they are different... I couldn't really find a loose tube so I am not sure if that is what goes into the empty slot. I wish I had a service manual or CDROM that would help tons, but until then I will rely on this forums abundance of experts.

Thanks

Attached Thumbnails

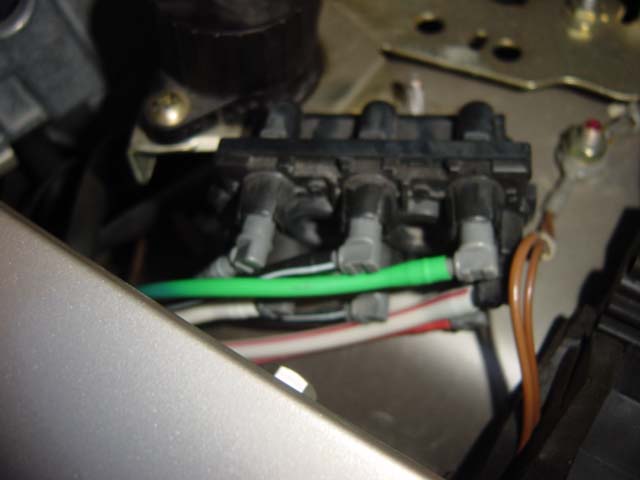

Having Vacum Problems with C280... Pics attached, something seems off-dsc00536.jpg

Last edited by babtahi; 06-26-2002 at 10:53 AM.
Reply With Quote
  #2
Old 06-25-2002, 10:19 PM
Rookie DIYer

Join Date: Jun 2002
Posts: 106
Here is the one with the BLACK connector.... The one above is the empty slot
Attached Thumbnails
Having Vacum Problems with C280... Pics attached, something seems off-dsc00538.jpg
Reply With Quote
  #3
Old 06-25-2002, 10:23 PM
Rookie DIYer

Join Date: Jun 2002
Posts: 106
some more pics
Attached Thumbnails
Having Vacum Problems with C280... Pics attached, something seems off-dsc00535.jpg
Reply With Quote
  #4
Old 06-25-2002, 10:26 PM
Rookie DIYer

Join Date: Jun 2002
Posts: 106
another pic... thanks again for all of the help
Attached Thumbnails
Having Vacum Problems with C280... Pics attached, something seems off-dsc00537.jpg
Reply With Quote
  #5
Old 06-26-2002, 09:34 AM
Rookie DIYer

Join Date: Jun 2002
Posts: 106
can anyone check this out for me?
Reply With Quote
  #6
Old 06-26-2002, 12:45 PM
Registered User

Join Date: May 2001
Location: Indiana
Posts: 206
I have a 96 C280, if you havent gotten a responce by then I'll check it this evening and let you know.

-Brad
__________________
1986 190E 186K (For Sale)
(Maroon, Tan leather)
1996 C280 Sport 208K
(Brilliant Silver, Black Leather)
2002 CLK430 Sport 45K
(Brilliant Silver, Gray Leather , Birdseye Maple)
Reply With Quote
  #7
Old 06-26-2002, 12:52 PM
Rookie DIYer

Join Date: Jun 2002
Posts: 106
thanks brad
Reply With Quote
  #8
Old 06-26-2002, 07:32 PM
Senior Member

Join Date: Apr 1999
Location: Walnut,CA,USA
Posts: 554
That is your vacuum distributor block

P intake manifold vacuum (grey)
1 PSE control module (transparent)
2 A\C system (medium green)
3 A\C system vacuum reservoir (red\grey)
4 Upshift delay vacuum actuator (black\grey)
5 Automatic transmission vacuum reservoir (black\grey)
6 Open
7 Open

Check the vacuum distributor block sometime it leaks.
part number for vacuum block is 129-800-14-78
also it has vacuum reservoir inside your right front fander if the reservoir drops below 400mbar the PSE pump will starts until vacuum of approx 600mbar is obtained.
