What Blower Motor Fuse??

Car: 1989 260E

My blower motor stopped blowing. I went to check the fuses. The guide under the fuse box lid says that the blower motor fuse is located outside of the main fuse box.

I looked and looked and looked but found nothing.

Any clues?
__________________
2001 E430 4matic
122,xxx miles
Black/Charcoal Interior

------------------------------------
Gone but not Forgotten:
1995 E320, 252,xxx miles, Black/Grey
1989 260E, 223,00 miles, Black/Black
Reply With Quote
  #2
Old 10-01-2002, 06:02 PM
Moderator

Join Date: Mar 1999
Location: Tucker, Ga USA
Posts: 12,153
The fuse "box" for the BLOWER is mounted on the left shock tower. About 2" long black plastic with 2 wires.
__________________
MERCEDES Benz Master Guild Technician (6 TIMES)
ASE Master Technician
Mercedes Benz Star Technician (2 times)
44 years foreign automotive repair
27 Years M.B. Shop foreman (dealer)
MB technical information Specialist (15 years)
190E 2.3 16V ITS SCCA race car (sold)
1986 190E 2.3 16V 2.5 (sold)
Retired Moderator
Reply With Quote
  #3
Old 10-02-2002, 12:12 AM
EricSilver's Avatar
Registered User

Join Date: Mar 2000
Location: Fairfax, VA
Posts: 1,213
Hmm, I looked and looked some more. I saw nothing like that mounted, but did see a plastic thingy with white numbers and lettering on it *2481"??) which was connected to a cable with a brown wire, and a black wire with a yellow stripe. Is that it?

I also saw another cable looped onto itself and electrical-taped over what looks like a vacuum hose connector. I have no idea what it is.
__________________
2001 E430 4matic
122,xxx miles
Black/Charcoal Interior

------------------------------------
Gone but not Forgotten:
1995 E320, 252,xxx miles, Black/Grey
1989 260E, 223,00 miles, Black/Black
Reply With Quote
  #4
Old 10-02-2002, 07:15 PM
Registered User

Join Date: May 1999
Location: Sacramento, CA
Posts: 1,472
Should be a small black plastic thing around the top of the left shock tower about the size of a pink pencil eraser (the rectangular ones), the cap flips up from the side. Underneath will be a metal strip fuse.
Reply With Quote
  #5
Old 10-02-2002, 08:55 PM
haasman's Avatar
Registered User

Join Date: Jun 2001
Location: San Francisco, CA
Posts: 3,097
I had to replace mine recently. I didn't look like what I imagined it would. I has a fairly heavy wires going and out of it.
__________________
'03 E320 Wagon-Sold
'95 E320 Wagon-Went to Ex
'93 190E 2.6-Wrecked
'91 300E-Went to Ex
'65 911 Coupe (#302580)
Reply With Quote
  #6
Old 10-03-2002, 08:59 PM
EricSilver's Avatar
Registered User

Join Date: Mar 2000
Location: Fairfax, VA
Posts: 1,213
Anthony & Haas,

Thanks. I think I may have found it but will check again tomorrow when I have more time. It looks thin, black, and indeed shaped like a rectangular pencil eraser -- on the end of fairly heavy wires.

Thanks much!
__________________
2001 E430 4matic
122,xxx miles
Black/Charcoal Interior

------------------------------------
Gone but not Forgotten:
1995 E320, 252,xxx miles, Black/Grey
1989 260E, 223,00 miles, Black/Black
Reply With Quote
  #7
Old 10-03-2002, 10:43 PM
EricSilver's Avatar
Registered User

Join Date: Mar 2000
Location: Fairfax, VA
Posts: 1,213
I looked and what i saw does not look like any fuse I have seen.

There were actually two devices that fit your desciptions. Both consist of 2-pronged male plugs that plug into female. Neither resembles a fuse.

Is it physically attached to the shock tower? Neither of these were.
__________________
2001 E430 4matic
122,xxx miles
Black/Charcoal Interior

------------------------------------
Gone but not Forgotten:
1995 E320, 252,xxx miles, Black/Grey
1989 260E, 223,00 miles, Black/Black
Reply With Quote
  #8
Old 10-04-2002, 11:53 AM
haasman's Avatar
Registered User

Join Date: Jun 2001
Location: San Francisco, CA
Posts: 3,097
Yes, attached to the shock tower. If you still can't find it I will take a picture later today and post it.
__________________
'03 E320 Wagon-Sold
'95 E320 Wagon-Went to Ex
'93 190E 2.6-Wrecked
'91 300E-Went to Ex
'65 911 Coupe (#302580)
Reply With Quote
  #9
Old 10-04-2002, 11:57 AM
EricSilver's Avatar
Registered User

Join Date: Mar 2000
Location: Fairfax, VA
Posts: 1,213
That would be great, since I am not finding it.
__________________
2001 E430 4matic
122,xxx miles
Black/Charcoal Interior

------------------------------------
Gone but not Forgotten:
1995 E320, 252,xxx miles, Black/Grey
1989 260E, 223,00 miles, Black/Black
Reply With Quote
  #10
Old 10-04-2002, 07:33 PM
robbysf
Guest

Posts: n/a
location of blower fuse

I just checked my blower strip fuse. It's just in front of the large fuse box (headlight side), the unit is screwed into the shock tower. It has two cables running into it, one in the front and one in the back. The cover flips up from the long side.

Hope this description helps. If the fuse is okay look at my post regarding testing of blower.

Robby Roll
San Francisco
'88 260E
Reply With Quote
  #11
Old 10-05-2002, 11:26 AM
EricSilver's Avatar
Registered User

Join Date: Mar 2000
Location: Fairfax, VA
Posts: 1,213
Robby,

Thanks. I still have not found it and wonder if it, like a number of other things, has been removed/altered by the car's previous owner.
__________________
2001 E430 4matic
122,xxx miles
Black/Charcoal Interior

------------------------------------
Gone but not Forgotten:
1995 E320, 252,xxx miles, Black/Grey
1989 260E, 223,00 miles, Black/Black
Reply With Quote
  #12
Old 10-05-2002, 11:02 PM
haasman's Avatar
Registered User

Join Date: Jun 2001
Location: San Francisco, CA
Posts: 3,097

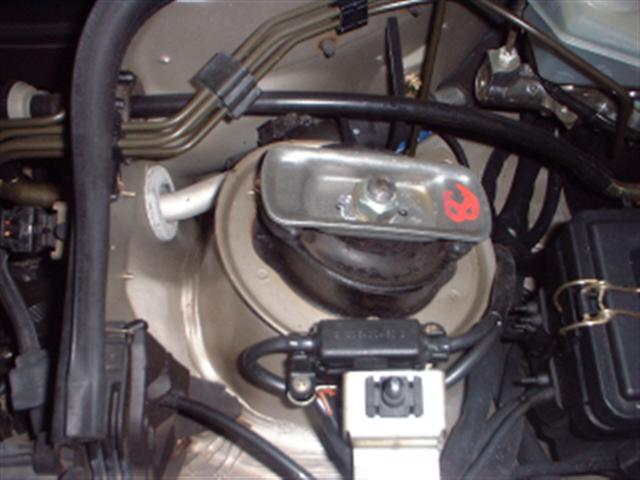

Here is a picture: it is between the shock tower and the switch for the alarm (bottom of picture)
__________________
'03 E320 Wagon-Sold
'95 E320 Wagon-Went to Ex
'93 190E 2.6-Wrecked
'91 300E-Went to Ex
'65 911 Coupe (#302580)
Reply With Quote
  #13
Old 10-05-2002, 11:05 PM
haasman's Avatar
Registered User

Join Date: Jun 2001
Location: San Francisco, CA
Posts: 3,097
OK ... and now the picture
Attached Thumbnails
What Blower Motor Fuse??-blower-fuse-small-.jpg
__________________
'03 E320 Wagon-Sold
'95 E320 Wagon-Went to Ex
'93 190E 2.6-Wrecked
'91 300E-Went to Ex
'65 911 Coupe (#302580)
Reply With Quote
  #14
Old 10-05-2002, 11:37 PM
EricSilver's Avatar
Registered User

Join Date: Mar 2000
Location: Fairfax, VA
Posts: 1,213
The black box with the thick cables?

No wonder I can't find it: I do not have one at all.
It was apparently removed by the previous owner for reasons unknown.

What I have is the heavy cable looped and taped onto itself. I am about to go do a little surgery to remove the tape and see what's underneath.
__________________
2001 E430 4matic
122,xxx miles
Black/Charcoal Interior

------------------------------------
Gone but not Forgotten:
1995 E320, 252,xxx miles, Black/Grey
1989 260E, 223,00 miles, Black/Black
Reply With Quote
  #15
Old 10-05-2002, 11:59 PM
haasman's Avatar
Registered User

Join Date: Jun 2001
Location: San Francisco, CA
Posts: 3,097
>>The black box with the thick cables?<<

Yes, that is the one.
__________________
'03 E320 Wagon-Sold
'95 E320 Wagon-Went to Ex
'93 190E 2.6-Wrecked
'91 300E-Went to Ex
'65 911 Coupe (#302580)
Reply With Quote
