  #16
Old 10-28-2002, 12:19 PM
Registered User

Join Date: Jun 1999
Location: Surrey, Beautiful British Columbia, Canada
Posts: 750
went looking for the new filter wrench but cannot
find one. hope this is not another dealer item.
Reply With Quote
  #17
Old 11-08-2002, 02:09 AM
Gilly's Avatar
Registered User

Join Date: Mar 2001
Location: Evansville WI
Posts: 9,616
Unravelling the small filter mystery

Well, I've kept this thread in the back of my mind, and this week the opportunity presented itself to do a little sleuthing. Noticed that we had an older style "long" 103 oil filter in the drain bin, and of course several of the new short filters.
I sawed around the outer steel covering with a hacksaw to get to the inner filter medium.
On the older filter, the filter medium is simply a pleated filter and looks very much like a canister filter for the 112/113 motors.
On the short filter, not only is it pleated like the long filter, but it's also zig-zagged to make it shorter. i didn't unravel anything yet,but it looks like the filtering area would be identical, plus to me, it looks like the short version may do a better job as the filter media looks like it would do a better job than the longer version. It has a more uniform appearance than the long version, as the the long version tends to have pleats which are not uniform.
I hope to post an image of them side-by-side. i have a digital image that the general manager took with his digital camera and emailed to me, now I need to find out how i can post them on this thread. i've asked the webmaster for an assist.

Gilly
Reply With Quote
  #18
Old 11-08-2002, 10:46 AM
Registered User

Join Date: Jun 1999
Location: Surrey, Beautiful British Columbia, Canada
Posts: 750
dan - very good commentary. i bet the filtration medium
was similarly improved to handle various demands of
varying oil viscosity. cheers!
Reply With Quote
  #19
Old 11-08-2002, 05:10 PM
Registered User

Join Date: Jan 2002
Posts: 352
Hey Dan for the long filters did you get a look at the Knech filter. I thought they changed their medium to micro-star.
Reply With Quote
  #20
Old 11-08-2002, 06:17 PM
Gilly's Avatar
Registered User

Join Date: Mar 2001
Location: Evansville WI
Posts: 9,616

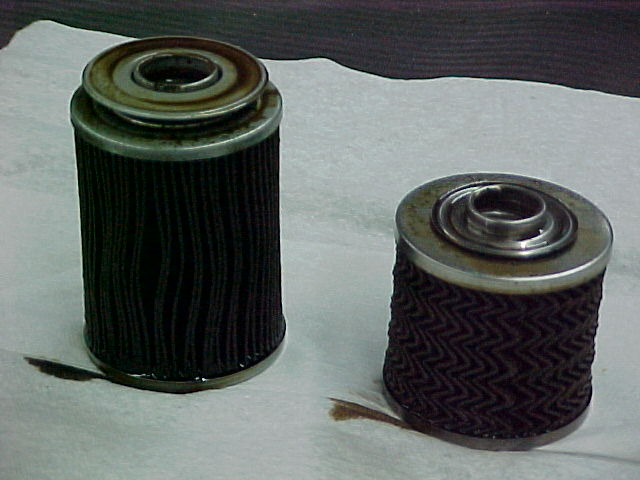

Here is one of the images I mentioned.
Maybe someone viewing this thread is more of an expert on flow dynamics and can comment on the different designs.
I'm sorry I don't recall what brand the black filter was. I know I have seen the "Micro-Star" wording on MB filters before, i am unsure what this means, i would tend to think it's a reference to the type of filter material used.

Gilly

Thanks to Bill Mills, the general manager at Z European for taking the pictures and mailing them to me.
Attached Thumbnails
W124 New Replacement Oil Filter, smaller, better?-mvc-028f.jpg

Last edited by Gilly; 11-08-2002 at 06:23 PM.
