M104: can't obtain diagnostic readout

Hi all,

Wanted to obtain a diagnostic readout on my 95 E320 so searched the archives for the procedure. Per instructions, the ignition was turned to the ON position until the warning lights, etc were on. Then I pushed the button on the diagnostic connector for 2-3 seconds and released with no results. When the button was pushed the light energized as expected and went out when the button was released. I thought that if there were no faults stored that it would flash one time to indicate that.

Am I doing something wrong or is it possible that there is a malfunction in the testing circuit?

TIA

philmartin
Reply With Quote
  #2
Old 11-21-2002, 09:32 PM
Moderator

Join Date: Dec 2001
Location: Southern California, U.S.A.
Posts: 8,508
You're doing nothing wrong.

Try holding the button down a little longer. This has happened to me, too, from time to time. I was either not holding the button down long enough, or I needed to turn off the ignition and turn it back on to get it to work.
__________________
Paul S.

2001 E430, Bourdeaux Red, Oyster interior.
79,200 miles.

1973 280SE 4.5, 170,000 miles. 568 Signal Red, Black MB Tex. "The Red Baron".
Reply With Quote
  #3
Old 11-21-2002, 10:02 PM
Registered User

Join Date: Jun 2002
Location: New Mexico
Posts: 31
Still no luck

sug,

Tried your suggestion at intervals of 5, 10 and 15 seconds. Between tries, I turned the ignition off and pulled out the key. I also tried again at 2-3 seconds. I also turned the ignition on and tried at 2-3 followed by 5 then 10 without turning ignition off between tries. No blinks ever appeared once the button was released. Any other suggestions?

philmartin
Reply With Quote
  #4
Old 11-21-2002, 10:19 PM
Moderator

Join Date: Dec 2001
Location: Southern California, U.S.A.
Posts: 8,508
Geez, very strange. I have no suggestions.

You are doing nothing wrong.

You're not getting even one blink?

By the way, that led will show fault codes for anything related to smog issues. Your check engine light would have to be on, too, to have fault codes related to smog emissions.
__________________
Paul S.

2001 E430, Bourdeaux Red, Oyster interior.
79,200 miles.

1973 280SE 4.5, 170,000 miles. 568 Signal Red, Black MB Tex. "The Red Baron".
Reply With Quote
  #5
Old 11-21-2002, 11:49 PM
Registered User

Join Date: Jun 2002
Location: New Mexico
Posts: 31
FWIW, I was able to read a fault code of 8 blinks about a year back which I think is coolant temperature sensor. I didn't follow up at the time since everything seemed to be OK and the check engine light was NOT on when pulling the code. Was it supposed to be on? Perhaps the diagnostic system is/was malfunctioning.

philmartin
Reply With Quote
  #6
Old 11-22-2002, 02:58 AM
JetForeman
Guest

Posts: n/a
Phil,

After I cleared a few codes on my E320, it took about a week before it would give the one blink (all clear) code. I would just wait a few days and try it again. Did you unhook your battery recently? That will clear everything out as well and that too has caused mine to not blink at all for several days following that.

I bet it will work fine in about a week!

Dale
Reply With Quote
  #7
Old 11-22-2002, 03:00 AM
JetForeman
Guest

Posts: n/a
One more question Phil, have you made yourself a code reader yet? That little tool is invaluable and cost about 10 bucks to make.

Dale

95 E320
00 C230K
Reply With Quote
  #8
Old 11-22-2002, 01:29 PM
Moderator

Join Date: Dec 2001
Location: Southern California, U.S.A.
Posts: 8,508
The code reader is a great tool.

Arther Dalton can e-mail you a simple diagram, and you can make one from parts purchased at Radio Shack.

With this tool, you can pull the codes from all of the numbered sockets for codes stored in all the other systems.

Most people don't know is that although '93-'95 W124's are still technically OBD-I, they are actually almost OBD-II compliant. Our cars actually store the same information as OBD-II, but the code numbers are not the same.
__________________
Paul S.

2001 E430, Bourdeaux Red, Oyster interior.
79,200 miles.

1973 280SE 4.5, 170,000 miles. 568 Signal Red, Black MB Tex. "The Red Baron".
Reply With Quote
  #9
Old 11-22-2002, 07:25 PM
Registered User

Join Date: Jun 2002
Location: New Mexico
Posts: 31
I have not made the code reader yet but would be interested in any info on that. Also, after the reader is made, the codes for the other systems. I am planning to keep this car indefinitely so that would be very useful information.

Please feel free to PM me with info or post here.

TIA

philmartin
Reply With Quote
  #10
Old 11-22-2002, 07:29 PM
JetForeman
Guest

Posts: n/a

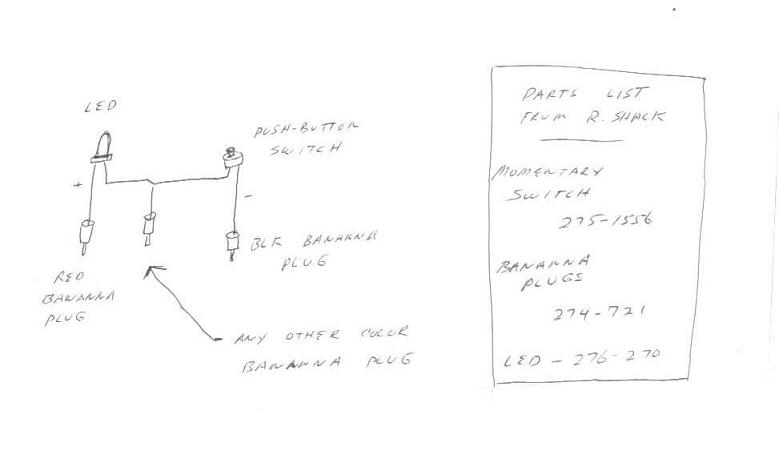

here's the schematic on how to wire one and a picture of the one I built. I think it will all show up so here goes...
Reply With Quote
  #11
Old 11-22-2002, 07:30 PM
JetForeman
Guest

Posts: n/a
I guess I had better read a little more about how to attach images, sorry
Reply With Quote
  #12
Old 11-22-2002, 07:46 PM
Moderator

Join Date: Dec 2001
Location: Southern California, U.S.A.
Posts: 8,508
I'll try:
Attached Thumbnails
M104: can't obtain diagnostic readout-diagnostic-scan-tool.jpg
__________________
Paul S.

2001 E430, Bourdeaux Red, Oyster interior.
79,200 miles.

1973 280SE 4.5, 170,000 miles. 568 Signal Red, Black MB Tex. "The Red Baron".
Reply With Quote
  #13
Old 11-22-2002, 07:48 PM
Moderator

Join Date: Dec 2001
Location: Southern California, U.S.A.
Posts: 8,508
I can't believe it worked.

What the picture doesn't show is that you need to mount the led and the push button on something. Arthur mounted mine on an empty 35mm film cannister.
__________________
Paul S.

2001 E430, Bourdeaux Red, Oyster interior.
79,200 miles.

1973 280SE 4.5, 170,000 miles. 568 Signal Red, Black MB Tex. "The Red Baron".
Reply With Quote
  #14
Old 11-22-2002, 07:56 PM
JetForeman
Guest

Posts: n/a
ok, here it goes again.
Attached Thumbnails
M104: can't obtain diagnostic readout-code-reader.jpg
Reply With Quote
  #15
Old 11-22-2002, 07:57 PM
JetForeman
Guest

Posts: n/a
now I'm excited, that didn't take much did it!!!!
Reply With Quote
