Test 7.3-1633 Anybody know where I can get the procedure?

I have the W124 CD but other than identifying the test, I cannot locate it on the CD.
Reply With Quote
  #2
Old 01-28-2003, 11:46 PM
ILUVMILS's Avatar
Senior Member

Join Date: Sep 2002
Location: New Jersey, U.S.A.
Posts: 2,461
What do you want to test??? I'm guessing CIS-E ???
Reply With Quote
  #3
Old 01-28-2003, 11:53 PM
Registered User

Join Date: Aug 2001
Location: secret
Posts: 3,044
I dismantled my fuel distributor. The shaft for the air deflector has two electrical contacts that connect to the black box three prong connector on the front of the fuel distributor. I have seen the test for value but cannot remember where it was.
Reply With Quote
  #4
Old 01-29-2003, 12:02 AM
ILUVMILS's Avatar
Senior Member

Join Date: Sep 2002
Location: New Jersey, U.S.A.
Posts: 2,461
Do you mean the air flow sensor?
Reply With Quote
  #5
Old 01-29-2003, 12:27 AM
Registered User

Join Date: Aug 2001
Location: secret
Posts: 3,044
Yessir I do. I suspected a leak at the plunger seal and dismantled the unit without benefit of training. Only after complete disassembly did I realize that I didn't need to remove the shaft. Now I have the formidible task of recalibrating this sensor.

Last edited by Cap'n Carageous; 01-29-2003 at 11:13 AM.
Reply With Quote
  #6
Old 01-29-2003, 04:24 PM
J.HIDALGO's Avatar
Registered User

Join Date: Jul 1999
Location: Jax, FL
Posts: 1,785
Cap'n,

I just went to the same problem. In case you have not read this threat:
Urgent help needed with fuel distributor!

You calibrate the fuel distributor to the sensor, NOT the sensor to the fuel distributor. It has to do with screw adjustment.
I hope this helps!
__________________
J.H.
'86 300E
Reply With Quote
  #7
Old 01-30-2003, 09:28 AM
Registered User

Join Date: Aug 2001
Location: secret
Posts: 3,044
This is the sensor I'm referring to.
Attached Thumbnails
Test 7.3-1633  Anybody know where I can get the procedure?-.jpg
Reply With Quote
  #8
Old 01-30-2003, 09:29 AM
Registered User

Join Date: Aug 2001
Location: secret
Posts: 3,044

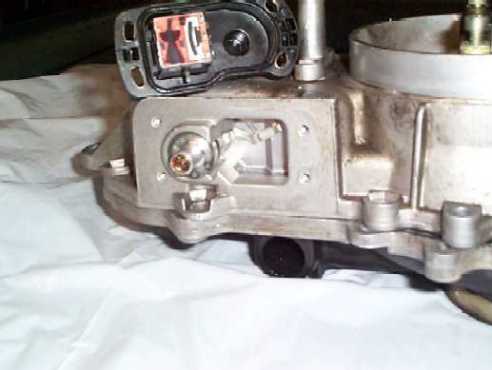

And the two prongs on the airplate sensor shaft.
Attached Thumbnails
Test 7.3-1633  Anybody know where I can get the procedure?-b.jpg
Reply With Quote
