  #1
Old 02-14-2003, 12:38 PM
Registered User

Join Date: Aug 2002
Location: Central Asia
Posts: 104
what do I disconnect when welding

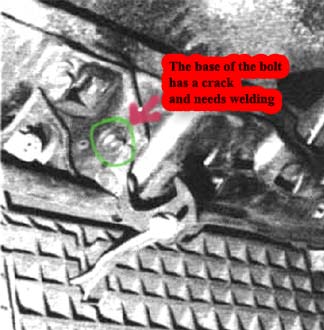

The hood of my 1989 230E is self opening while driving like when I open it from inside the car. I found 2 bolts holding the top side of the lock (see picture). They are screwed under the hood and 1 of them is getting loose because the base of the bolt has a crack where the bolt is screwed and needs welding.
I need to know what do I need to disconnect when using electrical welding. I don't wat to cause problem to microchips of the car.
Thanks.

Hurshi
Attached Thumbnails
what do I disconnect when welding-hood-problem.jpg
__________________
1989 230E, 8v, 166.000 km, updated to 94/95 trunk & hood
2002 Daewoo Nexia 50.000 km
Sold:
1987 VW Jetta GLE 16V, Recaro seats
1982 Volvo 240 DL (lovely car!)
and few more american cars.

Last edited by Hurshi; 02-14-2003 at 12:50 PM.
Reply With Quote
  #2
Old 02-14-2003, 12:54 PM
bjcsc's Avatar
Registered User

Join Date: Nov 2002
Location: Charleston, SC
Posts: 672
Most people don't disconnect anything. I always disconnect the ground at the battery, but I don't think that is even necessary. Are you going to MIG weld it? Be careful with the heat and your hood. You may want to fix a wet towel to the top of your hood while welding to absorb heat and stitch weld depending on the clearance ( I can't tell from the pic) It would be easier to braze it if the area can take the heat.
__________________
1982 Mercedes-Benz 300CD
1982 Mercedes-Benz 240D - stick
Reply With Quote
  #3
Old 02-14-2003, 01:06 PM
Pete Geither's Avatar
Half Fast Moderator

Join Date: Feb 2002
Location: Western Pa.
Posts: 2,417
Ahem,,,, if I were you I would disconnect BOTH the positive and the negative. We always do that when we weld on any car. I've heard of airbags blowing, computers getting screwed up and all kinds of interesting stuff. It's cheap insurance, believe me.:p
__________________
95 SL500 Smoke Silver, Parchment 64K
07 E350 4matic Station Wagon White 34K
02 E320 4Matic Silver/grey 80K
05 F150 Silver 44K
Reply With Quote
  #4
Old 02-14-2003, 01:32 PM
bjcsc's Avatar
Registered User

Join Date: Nov 2002
Location: Charleston, SC
Posts: 672
It's also important to ground as close as possible to where you're working so you have a short path.

PJG56: You're right. You may as well do both if you're doing one. Have you ever heard of clamping the negative and positive leads together after disconnecting them from the battery? I know some places do this as well but don't know why.
__________________
1982 Mercedes-Benz 300CD
1982 Mercedes-Benz 240D - stick
Reply With Quote
  #5
Old 02-14-2003, 03:13 PM
moedip
Guest

Posts: n/a
Strange things can happen to electronics when welding. Shorting the positive battery cable to ground (joining the negative and positive terminals) puts all circuits at ground potential and eliminates the possibility of a ground loop circuit which can generate voltages higher than 12v in the different circuits. I always short the two battery positive /negatives leads together before welding. Have had no problem since doing that. Prior to doing it - I blew the voltage stabilizer on a VW - even though the positive cable was disconnected from the battery. For the time it takes - it's worth it. The other suggestion of keeping the welding ground close to the welding point is a MUST to keep stray currents from running through the body of the car.
Reply With Quote
  #6
Old 02-14-2003, 03:44 PM
bjcsc's Avatar
Registered User

Join Date: Nov 2002
Location: Charleston, SC
Posts: 672
Thanks moedip! I will adopt that method myself as that makes perfect sense.
__________________
1982 Mercedes-Benz 300CD
1982 Mercedes-Benz 240D - stick
Reply With Quote
  #7
Old 02-15-2003, 12:14 AM
1992300e
Guest

Posts: n/a
Great advice

Thanks for the great advice. I do my own welding too. I would second the motion regarding heat. Welding builds big heat quickly and you need to be careful that you don't warp or set anything near the weld on fire.

good luck,
Joel
Reply With Quote
  #8
Old 02-16-2003, 06:02 AM
Registered User

Join Date: Aug 2002
Location: Central Asia
Posts: 104
Using all the advices I was able to weld the hood with no problems. Thanks to everybody.
__________________
1989 230E, 8v, 166.000 km, updated to 94/95 trunk & hood
2002 Daewoo Nexia 50.000 km
Sold:
1987 VW Jetta GLE 16V, Recaro seats
1982 Volvo 240 DL (lovely car!)
and few more american cars.
Reply With Quote
  #9
Old 02-16-2003, 08:45 AM
bjcsc's Avatar
Registered User

Join Date: Nov 2002
Location: Charleston, SC
Posts: 672
Hurshi:
That's great. I wanted to thank you for posting your results. So many of these threads have great material and information, but the initial poster seldom posts the results or resolution of the problem. Good job.
__________________
1982 Mercedes-Benz 300CD
1982 Mercedes-Benz 240D - stick
Reply With Quote
