190E r. suspension link orientation question

Below is a picture of the old worn-out link and the new replacement. The new link has one end that is not similiar to the other end, and not like either end of the old link. It has a larger flange end than the original one.

-Does this end which is in the upper right of the picture mount to the hub?

Thank you in advance,

Haasman
__________________
'03 E320 Wagon-Sold
'95 E320 Wagon-Went to Ex
'93 190E 2.6-Wrecked
'91 300E-Went to Ex
'65 911 Coupe (#302580)
Reply With Quote
  #2
Old 04-13-2003, 03:58 PM
haasman's Avatar
Registered User

Join Date: Jun 2001
Location: San Francisco, CA
Posts: 3,097
Here is the pciture.
Attached Thumbnails

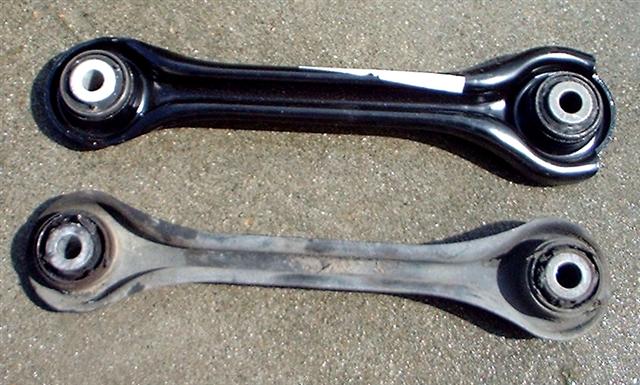

190E r. suspension link orientation question-190e-r-susp-link-small-.jpg
__________________
'03 E320 Wagon-Sold
'95 E320 Wagon-Went to Ex
'93 190E 2.6-Wrecked
'91 300E-Went to Ex
'65 911 Coupe (#302580)
Reply With Quote
  #3
Old 04-13-2003, 04:47 PM
Moderator

Join Date: Mar 2000
Location: Gainesville FL
Posts: 6,844
OK,

That link is the one that goes about 45degrees to the direction of travel. It is the one that makes the rear end steer under load. That's the one!

Like the camber link, its original design was basically the same through the 210 and 202 chassis. The latest model is the one sold for all uses. It was improved by adding to the bushing at the weak end. In order to make the bushing bigger the steel insert was reduced. I think the original bolt is 12mm and the new hole is 10mm. Proper parts designation would have indicated two additional parts needed. Their numbers are in these archives a few times. They are a 10mm bolt and a sleeve that gets inserted into the original 12mm hole in the bearing carrier. The sleeve makes the hole into 10mm and accepts the new bolt which passes through the new arm.
__________________
Steve Brotherton
Continental Imports
Gainesville FL
Bosch Master, ASE Master, L1
33 years MB technician
Reply With Quote
  #4
Old 04-13-2003, 07:45 PM
haasman's Avatar
Registered User

Join Date: Jun 2001
Location: San Francisco, CA
Posts: 3,097
Thanks for the reply. Looking closely at the new link in the photo above, on the right-hand end, it has flanges that make it larger than the original link below in the picture.

My question is: which end is attached to the wheel hub/carrier and which attaches to the body? One end is larger than the other.

Hopefully this clarifies what I am asking.

Haasman
__________________
'03 E320 Wagon-Sold
'95 E320 Wagon-Went to Ex
'93 190E 2.6-Wrecked
'91 300E-Went to Ex
'65 911 Coupe (#302580)
Reply With Quote
  #5
Old 04-13-2003, 09:42 PM
Moderator

Join Date: Mar 2000
Location: Gainesville FL
Posts: 6,844
The one with the smaller hole. The end that attaches to the body is the same.
__________________
Steve Brotherton
Continental Imports
Gainesville FL
Bosch Master, ASE Master, L1
33 years MB technician
