Is this from my car?

Hi,

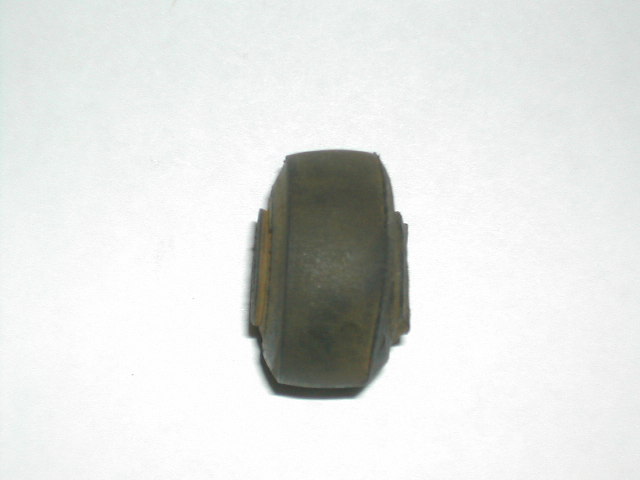

I have a 88 190e 2.3, and I have found this rubber piece, what looks like maybe a bushing, laying on my garage floor. I can't say for sure it is from my car because several of us use the garage. What I notice is the car sometimes catches cross winds, and sometimes likes to sway on the road without my permission. But it did this before I found this piece. I was looking under the car at the components under each wheel and I could not find anything missing. This part looks like it had a bolt running through it at some point, which is what worries me.

I thought maybe someone would have seen this part and recognized it. Any help is greatly appreciated!!

Thanks,

Josh
Attached Thumbnails
Is this from my car?-front.jpg
Reply With Quote
  #2
Old 05-13-2003, 10:02 PM
Registered User

Join Date: Mar 2003
Location: New Hampshire
Posts: 158
one side

One side
Attached Thumbnails
Is this from my car?-left.jpg
Reply With Quote
  #3
Old 05-13-2003, 10:03 PM
Registered User

Join Date: Mar 2003
Location: New Hampshire
Posts: 158
other side

other side
Attached Thumbnails
Is this from my car?-right.jpg
Reply With Quote
  #4
Old 05-13-2003, 10:21 PM
Registered User

Join Date: Mar 2002
Location: Great White North!!!!
Posts: 400
i can't see how that thing would just fall off without intention.it must be from someone else
__________________
'95 s500 (bought for wife but can't bear to share!!!) 125kms
'92 legend 180kms
'88 tbirdturbo(fantastic car-only regular maint.)120kms
'87 mustang gt(gone)
'86 tbirdturbo(gone)
'85 mustang gt(gone-but not forgotten)
Reply With Quote
  #5
Old 05-13-2003, 10:42 PM
MTI's Avatar
MTI MTI is offline
Registered User

Join Date: Nov 2002
Location: Scottsdale, Arizona
Posts: 10,626
Weird, since it looks like a suspension bushing. I would suggest not driving the car until you've made an under car inspection of all the front and rear suspension points.
Reply With Quote
  #6
Old 05-13-2003, 10:52 PM
Registered User

Join Date: Mar 2003
Location: Milwaukee Wisconsin
Posts: 1,149
Yes! Diffinitely a bushing from a suspension component. Could be from steering linkage, sway bar, control arm, or ? Inspect everything. Tod
__________________
Resistance is Futile.
Reply With Quote
  #7
Old 05-14-2003, 09:31 AM
Registered User

Join Date: Mar 2003
Location: New Hampshire
Posts: 158
Thanks everyone, I will try to leave work early today and put the car up on the ramps and see if I can find anything. My initial inspection revealed nothing obvious, or loose.
Reply With Quote
  #8
Old 05-14-2003, 11:20 AM
G-Benz's Avatar
Razorback Soccer Dad

Join Date: Apr 2001
Location: Dallas/Fort-Worth
Posts: 5,711
From the pics, it doesn't appear that there are any "breaks" on the bushing. That is, when installed, the bushing sat concentrically onto some type of suspension component.

With no fracture point visible on the bushing, it would be impossible for it to come off unless the shaft it was riding on gave out.

So either you have a catastrophic failure on your hands, or the bushing came off another vehicle...
__________________
2009 ML350 (106K) - Family vehicle
2001 CLK430 Cabriolet (80K) - Wife's car
2005 BMW 645CI (138K) - My daily driver
2016 Mustang (32K) - Daughter's car
Reply With Quote
  #9
Old 05-14-2003, 01:06 PM
Registered User

Join Date: Mar 2003
Location: New Hampshire
Posts: 158
If it was something catestrophic, I would have noticed something by now right? There is no clucking or banging as there would be if something were loose.
Reply With Quote
  #10
Old 05-14-2003, 01:17 PM
haasman's Avatar
Registered User

Join Date: Jun 2001
Location: San Francisco, CA
Posts: 3,097
Looks like a shock absorber bushing that has come off some car.

It is amazing what we see on the road sometimes!

Haasman
__________________
'03 E320 Wagon-Sold
'95 E320 Wagon-Went to Ex
'93 190E 2.6-Wrecked
'91 300E-Went to Ex
'65 911 Coupe (#302580)
Reply With Quote
  #11
Old 05-14-2003, 01:21 PM
yal's Avatar
yal yal is offline
Benz-smart

Join Date: Oct 1999
Location: New York, Long Island
Posts: 2,705
Don't all mercedes bushings come with a part number on them? I doubt this is off your car.
Reply With Quote
  #12
Old 05-14-2003, 01:41 PM
dmorrison's Avatar
Registered User

Join Date: Dec 2002
Location: Colleyville, Texas
Posts: 2,694
Having just completely rebuilt my 123. It looks like the sway bar bushing. I don't see how it would fall of the car. Mine required some manipulating to get them into the uppercontrol arm. The sequence had to be done just right or they would not go in. Have you had the suspension rebuilt at anytime? The mechanic could have dropped it in the engine compartment and it just now got loose.
Look at the front of the swaybar as it comes through the upper control arm. If the bolt came off than the front rubber bushing could come off. The picture below is of the 123 suspension.

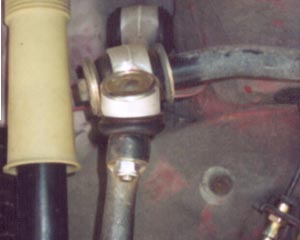

The attached picture shows the sway bar going into the UCA. Just to the right of the white shock cover and behind the upper control arm ball joint is where the sway bar attaches. I do not know of this is the setup on your 190. But Mercedes ususally builds things using the same philosophy.

What is the dimension of the piece. Could it have come from the engine compartment?

Dave
Attached Thumbnails
Is this from my car?-ubj3.jpg
__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car
Reply With Quote
  #13
Old 05-14-2003, 02:49 PM
Registered User

Join Date: Mar 2003
Location: New Hampshire
Posts: 158
It looks to be 1 + 1/8th inches in diameter, and 3/4" wide. I can see no part number on it. And I have not had any suspension work done on the car. The only thing I notice is the car likes to sway on the highway sometimes. So from reading other posts this seems to be caused by the swaybar bushings. But I am not very experienced with the underside of the car, does anyone have a picture of a 190 swaybar and bushing location?

Thanks for the photo of the 123 dave, I will try to find similarities in my 190e.
Reply With Quote
  #14
Old 05-14-2003, 03:28 PM
haasman's Avatar
Registered User

Join Date: Jun 2001
Location: San Francisco, CA
Posts: 3,097
Easy job to do .... great results ..... and it is not expensive!

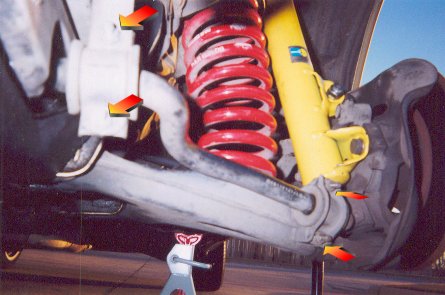

Front bushings:
Attached Thumbnails
Is this from my car?-swayfull.jpg
__________________
'03 E320 Wagon-Sold
'95 E320 Wagon-Went to Ex
'93 190E 2.6-Wrecked
'91 300E-Went to Ex
'65 911 Coupe (#302580)
Reply With Quote
  #15
Old 05-14-2003, 03:36 PM
haasman's Avatar
Registered User

Join Date: Jun 2001
Location: San Francisco, CA
Posts: 3,097

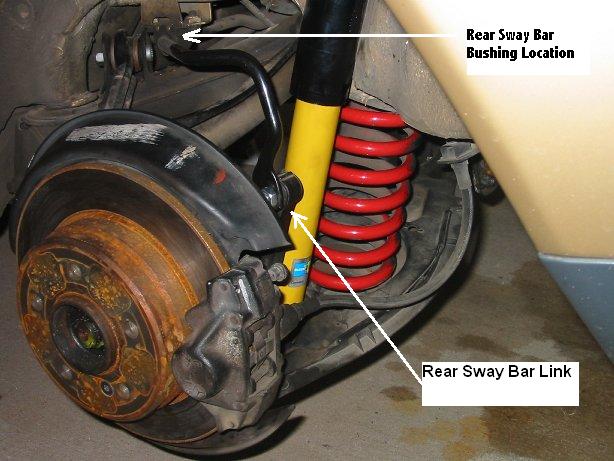

... and now the rears which also have vertical platic links that should be checked .....
Attached Thumbnails
Is this from my car?-rearshocks4.jpg
__________________
'03 E320 Wagon-Sold
'95 E320 Wagon-Went to Ex
'93 190E 2.6-Wrecked
'91 300E-Went to Ex
'65 911 Coupe (#302580)
Reply With Quote
