260E what is this N2

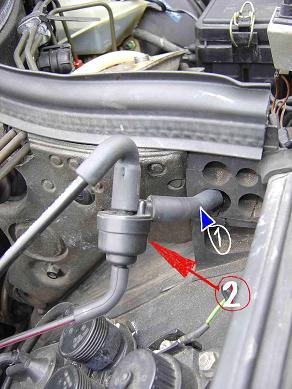

Can anybody tell me what is this device seems to be a valve, and to which equipment is connected the pipe with arrow 1.

Car is 260E 1988, 370 000 km

thanks for help
Attached Thumbnails
260E what is this N2-device-2-reduce.jpg
Reply With Quote
  #2
Old 10-03-2003, 04:04 PM
Registered User

Join Date: Jan 2001
Location: Cedar Rapids, Iowa
Posts: 63
I've got a similar setup on my 420SEL that's shown as part of the evaporative controls. Sucks the fumes out of the intake after shutdown to prevent environmental pollution. See if it doesn't go to the evap cannister that collects the fumes and then returns them on startup.
__________________
Gregga
'89 420 SEL "Moby Dick"
'30 Ford Coupe
'31 Ford Slant Windshield Town Sedan
'33 Ford Pickup
'34 Ford Pickup
'01 Honda Passport
Reply With Quote
  #3
Old 10-03-2003, 04:10 PM
MrCjames's Avatar
California Dreaming

Join Date: Jun 2003
Location: SF Bay Area
Posts: 599
Purge valve, connects inside the fender to the charcoal cannister, where another line will run to the rear of the vehicle connecting with the fuel tank.

Purpose: Allow vapors, not fuel, from the fuel tank to pass through the charcoal rather than vent to the atmosphere. During certain engine running criteria the cannister is "purged" of the collected vapors.
Reply With Quote
  #4
Old 10-08-2003, 04:55 PM
Registered User

Join Date: Sep 2003
Location: France
Posts: 487
Quote:
Originally posted by MrCjames
Allow vapors, not fuel, from the fuel tank to pass through the charcoal rather than vent to the atmosphere. During certain engine running criteria the cannister is "purged" of the collected vapors. [/B]
Thanks MrCjames,

Do you know what happens if it does not work?
I have idle problems when warm and engine stalls while running
Reply With Quote
  #5
Old 10-08-2003, 05:16 PM
MrCjames's Avatar
California Dreaming

Join Date: Jun 2003
Location: SF Bay Area
Posts: 599
I do not think this device would cause your stalling problem however, if you blocked off the vacuum side and the stalling ceased than one would have to assume that there may be a connection.

If you can give some more details regarding your stalling problem (hot/cold, pulling up to stop signs,.... yadi yadi yadi) I think you will find that you will get flooded with possibilities.
