Question 103 Front Cover Leak- Where exactly?

Got oil?

Front Cover Leak:

Front cover has been leaking oil somewhat since I have had the car. Not so much, but messy nonetheless. Obviously a very common problem based upon posts...

But where exactly is the source of the leak?

In the diagram below, is the problem child #143 (Cam Gear Cover Gasket) or #142 (Cam Gear Cover Seal)

Or both for good measure? Neither? Am I even barking up the right tree?


Extra credit question:
Is part #139 (Distributor Rotor Bracket) a 'wear' item? Hate to reinstall marginal parts because replacements are not in hand...

TIA for any help.
Attached Thumbnails
124 Front Cover Leak- Where exactly?-124ignmod.gif
__________________
1986 300E 5-Speed 240k mi.

Last edited by csnow; 10-15-2003 at 04:06 PM.
Reply With Quote
  #2
Old 10-15-2003, 12:14 PM
G-Benz's Avatar
Razorback Soccer Dad

Join Date: Apr 2001
Location: Dallas/Fort-Worth
Posts: 5,711
I see yours is an M103. You want to replace #143, the cam gear cover gasket.

Untrained eyes mistakenly associate this type of leak to a faulty head gasket...
__________________
2009 ML350 (106K) - Family vehicle
2001 CLK430 Cabriolet (80K) - Wife's car
2005 BMW 645CI (138K) - My daily driver
2016 Mustang (32K) - Daughter's car
Reply With Quote
  #3
Old 10-15-2003, 01:03 PM
sixto's Avatar
smoke gets in your eyes

Join Date: Jun 2000
Location: SF Bay Area
Posts: 19,754
The front cover is a tricky beast to seal. Getting part 143 (horseshoe gasket) in place properly is most but not all of the battle. The rest is using and applying the proper sealant. Check the archives.

Part 142 is just a seal but you might as well replace it when replacing part 143. In fact I'm from the camp that says to put part 143 in place then fit part 142, as opposed to the manual that says to fit part 142 into the front cover first. The front cover has to come in at an angle to keep part 143 in place so there's a chance to nick part 142. At least that the easy way to get the front cover in place.

I think part 139 is noted as a replacement item because if it takes a set on the cam, you can damage it when removing it.

Sixto
95 S420
91 300SE
87 300SDL
83 300SD
Reply With Quote
  #4
Old 10-15-2003, 04:56 PM
Zeus's Avatar
Moderating, Eh?

Join Date: Feb 2000
Location: Canada
Posts: 1,774
M103 front oil leak

Mine's also been leaking from the front for quite a while. Replaced 142 and 143 a couple of times (my tech did it) and it still leaks, although less now. The second time they did it, the leaking slowed quite a bit. What I have since found out is that it is also leaking from the head gasket slightly. Most of the leaking was from the camshaft cover (from 142 and 143), but some is from the head gasket at the passenger side front corner of the block. Fun, fun, fun.

A member here has a good quote under their username - "If it's German, it leaks". Seems to be true.
__________________
Chris
2007 E550 4Matic - 61,000 Km - Iridium Silver, black leather, Sport package, Premium 2 package
2007 GL450 4Matic - 62,000 Km - Obsidian Black Metallic, black leather, all options
1998 E430 - sold
1989 300E - 333,000 Km - sold
1977 280E - sold
1971 250 - retired


"And a frign hat. They gave me a hat at the annual benefits meeting. I said. how does this benefit me. I dont have anything from the company.. So they gave me a hat." - TheDon
Reply With Quote
  #5
Old 10-16-2003, 01:47 PM
csnow's Avatar
Registered User

Join Date: May 2002
Location: Mass
Posts: 1,127
Thanks for the help!

Glad to hear it is not generally the LOWER cover that leaks.

Now that would suck...
__________________
1986 300E 5-Speed 240k mi.
Reply With Quote
  #6
Old 10-16-2003, 03:05 PM
Registered User

Join Date: Jan 2001
Location: Charleston, SC
Posts: 93
I just completed this job in July. It was very easy to do. You must use the proper sealant (loctite 5900?) from the MB dealer or Fastlane. Make sure you put enough in the corners between # 143 and the head. Replace #142 while you are at it. I also replaced the vave cover gasket for good measure. The most expensive part is the sealant

My car is now bone dry for the first time in years.

Ed C.

88 300TE
Reply With Quote
  #7
Old 10-16-2003, 03:47 PM
Registered User

Join Date: Jun 2002
Location: Monrovia, CA
Posts: 490
csnow,

Where are you getting the diagrams you use in your posts? I own 3 different W124 manuals and the Service CD's and I haven't seen these diagrams in any of them.

Thanks,

Gary
Reply With Quote
  #8
Old 10-16-2003, 03:53 PM
Likes DIY/Tech'y inclined

Join Date: Sep 2002
Location: San Francisco Bay Area
Posts: 452
diagram

I was able to get a diagram from the catalogue I got from Performance Products. Just visit www.************************ and request a catalogue once you've specified your car. It has what you're looking for and more.

If anyone else have a diff source that'll be nice...

late,
__________________
sjsfiji

'87 W124 260E (DD)
98K orig. mi. @7/15
CLK 7-Spoke Forged Wheels
Neuspeed springs/Bilstein Sport
4/3 bump (F/R)

'97 993 Carrera
106K orig. mi.
Always driven like it's stolen
Reply With Quote
  #9
Old 10-16-2003, 04:24 PM
csnow's Avatar
Registered User

Join Date: May 2002
Location: Mass
Posts: 1,127
Quote:
Originally posted by Phalcon51
csnow,

Where are you getting the diagrams you use in your posts? I own 3 different W124 manuals and the Service CD's and I haven't seen these diagrams in any of them.

Thanks,

Gary
Yes, no offense to our sponsor, but I do find the online performance products diagrams very helpful in discussions here.
Actually, their old site was even better, since it had an exact copy of the drawings in their catalog, covering more items. Old site was slow and unreliable though.

The service CDs in particular have awful drawings. No context at all. I swear MB just likes to leave us in the dark. The most useful manual I have for the 300E is actually a 'Parts Identification Manual'. Nothing but drawings (not even a brief description for each part) , but at least you can see how bits go together. Also you can fax (or scan) a copy of a page to Phil so that he knows what the hell you are talking about.

I recently rebuilt my manual shifter mechanism, and there was absolutely NO WAY I could have done it without this book as a guide! Best $40 I have spent on my MB.


Link to "1986-89 124 Parts Identification Manual" at books4cars.com
__________________
1986 300E 5-Speed 240k mi.
Reply With Quote
  #10
Old 10-16-2003, 05:09 PM
Registered User

Join Date: Jun 2002
Location: Monrovia, CA
Posts: 490
Do you have any way to post a representative image from the Parts ID Manual so we can get an idea of the quality of the diagrams?

Gary
Reply With Quote
  #11
Old 10-16-2003, 05:18 PM
csnow's Avatar
Registered User

Join Date: May 2002
Location: Mass
Posts: 1,127
Sure. Quality is actually better on paper, since I had to drop resolution to post.
Attached Thumbnails
124 Front Cover Leak- Where exactly?-shield2.jpg
__________________
1986 300E 5-Speed 240k mi.
Reply With Quote
  #12
Old 10-16-2003, 05:22 PM
csnow's Avatar
Registered User

Join Date: May 2002
Location: Mass
Posts: 1,127

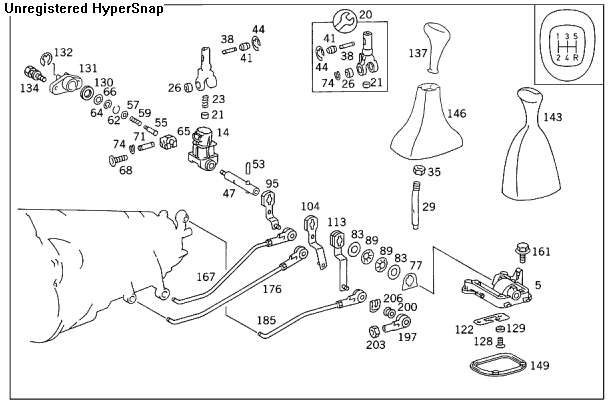

More. This page did not lose so much in the conversion. Actually, to give proper credit, Phil converted this one.
Attached Thumbnails
124 Front Cover Leak- Where exactly?-5speed.gif
__________________
1986 300E 5-Speed 240k mi.
Reply With Quote
  #13
Old 10-16-2003, 05:26 PM
Likes DIY/Tech'y inclined

Join Date: Sep 2002
Location: San Francisco Bay Area
Posts: 452
nice pics

Now those are diagrams. Looking at drawings all day (P&IDs), one can surely appreciate this kind of quality. Time to buy a book...
__________________
sjsfiji

'87 W124 260E (DD)
98K orig. mi. @7/15
CLK 7-Spoke Forged Wheels
Neuspeed springs/Bilstein Sport
4/3 bump (F/R)

'97 993 Carrera
106K orig. mi.
Always driven like it's stolen
Reply With Quote
  #14
Old 10-16-2003, 05:30 PM
sixto's Avatar
smoke gets in your eyes

Join Date: Jun 2000
Location: SF Bay Area
Posts: 19,754
The shifter parts page might be a screen shot of the EPC. Why would Phil use a hardcopy resource?

Sixto
95 S420
91 300SE
87 300SDL
83 300SD
Reply With Quote
  #15
Old 10-16-2003, 05:43 PM
Registered User

Join Date: Jun 2002
Location: Monrovia, CA
Posts: 490
csnow wrote:

"Nothing but drawings (not even a brief description for each part) , but at least you can see how bits go together."

Then the item numbers don't refer to anything in the book at all?
Any idea if these drawings were taken from an old parts fiche, with the part number/descriptions left out?

Gary
