R&R rear main seal 240D & 4 Speed seals

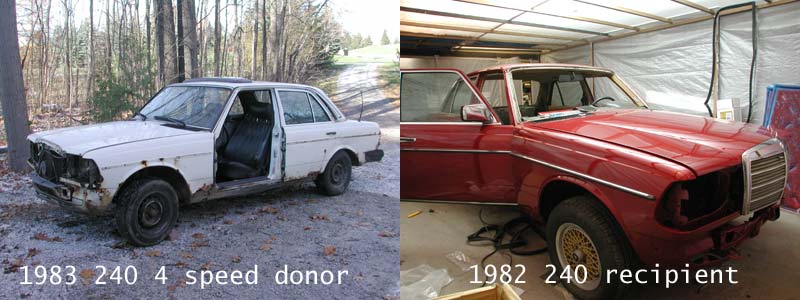

I am working on a refresh of my 240D pictured below and a conversion to 4 speed. Most of the parts are already out of the parts car and I am getting ready to work on mine. Since I have to drop to old tranny out, and the engine compartment is mostly stripped for the paint job, I am considering pulling the engine and replacing the rear main seal. I know I will have to “drop the crank” to do this, but what does that entail? Unfortunately all I have is the Haynes manual for this car (I have full MB manuals for 107, 126, and 124 and normally the overlap covers me but not on this) and it just gives you the full rebuild info. I am mostly concerned with timing chain issues. Any comments or pointers?

I also wanted to change the seals on the 4 speed. I assume the front and rear input and output seals are straight forward, but is there any way to change the O ring seals on the 3 shift levers without a full teardown of the tranny?

Thanks,

John
Attached Thumbnails
R&R rear main seal 240D & 4 Speed seals-partscar.jpg
Reply With Quote
  #2
Old 11-12-2003, 10:05 PM
Registered Diesel Burner

Join Date: Aug 2001
Location: Northern Virginia
Posts: 2,911
To hijack the thread slightly, I'd like to know if the output bearing on the rear side of the transmission (automatic and/or manual) can be changed without taking the transmission out of the car. That is, does it slide out the back.

Ken300D
__________________
--------------------------
1982 300D at 351K miles
1984 300SD at 217K miles
1987 300D at 370K miles
Reply With Quote
  #3
Old 11-13-2003, 01:47 PM
Moderator

Join Date: Mar 1999
Location: Tucker, Ga USA
Posts: 12,153
On the 240D rear main seal you might trying to reseal the oil pan section of the "rope" seal. I have done that job many times w/o removing the engine & completely disassembling it.
Just leave 2-3mm of the new rope seal above the pan surface to push up on the upper half.
__________________
MERCEDES Benz Master Guild Technician (6 TIMES)
ASE Master Technician
Mercedes Benz Star Technician (2 times)
44 years foreign automotive repair
27 Years M.B. Shop foreman (dealer)
MB technical information Specialist (15 years)
190E 2.3 16V ITS SCCA race car (sold)
1986 190E 2.3 16V 2.5 (sold)
Retired Moderator
Reply With Quote
