Almost fixed sunroof!!

To begin with. Thanks to may posts here on the forum and special help from Mike Y, I have almost fixed my sunroof. Just one last thing to be verified. But, before I get to that, I will post some pics and explanations in case this could help anyone in the future.

The Problem

The paasenger side rear corner of the sunroof would not close flush with the roof of the car. Additionally, The pop up feature would not work.
Attached Thumbnails
Almost fixed sunroof!!-sunroof-01.jpg
__________________
Insanity: doing the same thing over and over again and expecting different results.

2006 - Suzuki Gran Vitara (2.0 L fully equipped) Like this car so far except for trying to put on the seatbelt.
1988 - 190e - 2.3L - 172K miles (It now belongs to the exwife)
1999 - Chevy Blazer LS Fully Equiped - killed it June 2006
2001 - Honda Civic EX - 68K miles (sold June 2004)
1963 - 220S - Dual Carb 6 cyl. (sold)
1994 - Yamaha WaveRaider (fun to ride)
Reply With Quote
  #2
Old 12-20-2003, 06:26 PM
euronatura's Avatar
Registered User

Join Date: Oct 2003
Location: Guatemala, Central America
Posts: 375
What I dīd

What I did was opent he sunroof 3/4 way, unclipped the headliner from the sunroof.

Here is a pic of the underside of the headliner and the white rounds things at the bottom ar the clips
Attached Thumbnails
Almost fixed sunroof!!-sunroof-06.jpg
__________________
Insanity: doing the same thing over and over again and expecting different results.

2006 - Suzuki Gran Vitara (2.0 L fully equipped) Like this car so far except for trying to put on the seatbelt.
1988 - 190e - 2.3L - 172K miles (It now belongs to the exwife)
1999 - Chevy Blazer LS Fully Equiped - killed it June 2006
2001 - Honda Civic EX - 68K miles (sold June 2004)
1963 - 220S - Dual Carb 6 cyl. (sold)
1994 - Yamaha WaveRaider (fun to ride)
Reply With Quote
  #3
Old 12-20-2003, 06:29 PM
euronatura's Avatar
Registered User

Join Date: Oct 2003
Location: Guatemala, Central America
Posts: 375
After unclipping

the head liner from the sunroof, finished opneing the sunroof all the way. From there, grab a hold of the headliner and pulled up a little and then pulled out!!!

What I saw was the following after closing the sunroof w/o the liner on. What you are looking at are the tilt brakets! Specifically, the passanger side one.
Attached Thumbnails
Almost fixed sunroof!!-sunroof-03.jpg
__________________
Insanity: doing the same thing over and over again and expecting different results.

2006 - Suzuki Gran Vitara (2.0 L fully equipped) Like this car so far except for trying to put on the seatbelt.
1988 - 190e - 2.3L - 172K miles (It now belongs to the exwife)
1999 - Chevy Blazer LS Fully Equiped - killed it June 2006
2001 - Honda Civic EX - 68K miles (sold June 2004)
1963 - 220S - Dual Carb 6 cyl. (sold)
1994 - Yamaha WaveRaider (fun to ride)
Reply With Quote
  #4
Old 12-20-2003, 06:30 PM
euronatura's Avatar
Registered User

Join Date: Oct 2003
Location: Guatemala, Central America
Posts: 375

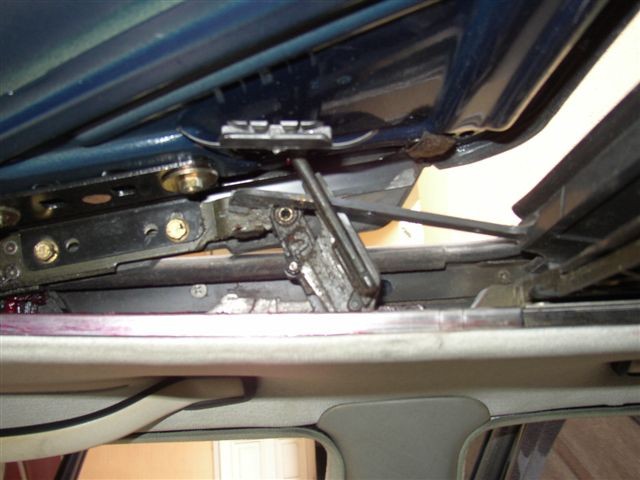

Here is the tilt angle in the up position-
Attached Thumbnails
Almost fixed sunroof!!-sunroof-05.jpg
__________________
Insanity: doing the same thing over and over again and expecting different results.

2006 - Suzuki Gran Vitara (2.0 L fully equipped) Like this car so far except for trying to put on the seatbelt.
1988 - 190e - 2.3L - 172K miles (It now belongs to the exwife)
1999 - Chevy Blazer LS Fully Equiped - killed it June 2006
2001 - Honda Civic EX - 68K miles (sold June 2004)
1963 - 220S - Dual Carb 6 cyl. (sold)
1994 - Yamaha WaveRaider (fun to ride)
Reply With Quote
  #5
Old 12-20-2003, 06:32 PM
euronatura's Avatar
Registered User

Join Date: Oct 2003
Location: Guatemala, Central America
Posts: 375
Here is the drivers side tilt angle bracket
Attached Thumbnails
Almost fixed sunroof!!-sunroof-04.jpg
__________________
Insanity: doing the same thing over and over again and expecting different results.

2006 - Suzuki Gran Vitara (2.0 L fully equipped) Like this car so far except for trying to put on the seatbelt.
1988 - 190e - 2.3L - 172K miles (It now belongs to the exwife)
1999 - Chevy Blazer LS Fully Equiped - killed it June 2006
2001 - Honda Civic EX - 68K miles (sold June 2004)
1963 - 220S - Dual Carb 6 cyl. (sold)
1994 - Yamaha WaveRaider (fun to ride)
Reply With Quote
  #6
Old 12-20-2003, 06:36 PM
euronatura's Avatar
Registered User

Join Date: Oct 2003
Location: Guatemala, Central America
Posts: 375
Now the original probelm was that the passenger side tilt angle was disenganged from a round little pully like thing or something. Like a little guide ball. Popped it back in and now the roof operates as it should.

The current problem is that after fixing it and working it back and forth various times, it worked and I left it and wnet on to other things. I cam back to the car a little later and played with the roof again and the tilt angle does not come untracked again but it gets a little stuck sometimes.

So my question now is, why could this be? It is not broken or anything but it seems to get tangled a little bit on like every other opening? Could it be that the roof needs adjustement?

Thanks,

Iggy

P.S. The car is dirty because it was extremely windy here last night and blew up a lot of dust.
__________________
Insanity: doing the same thing over and over again and expecting different results.

2006 - Suzuki Gran Vitara (2.0 L fully equipped) Like this car so far except for trying to put on the seatbelt.
1988 - 190e - 2.3L - 172K miles (It now belongs to the exwife)
1999 - Chevy Blazer LS Fully Equiped - killed it June 2006
2001 - Honda Civic EX - 68K miles (sold June 2004)
1963 - 220S - Dual Carb 6 cyl. (sold)
1994 - Yamaha WaveRaider (fun to ride)
Reply With Quote
  #7
Old 12-20-2003, 07:01 PM
Senior Member

Join Date: Jul 2002
Location: visalia ca
Posts: 368
look, these sunroofs are flimsy. your problem is that things are
bent. you really need both side units and the bar that
goes across. this is a job i hate. you can chase this for a long time
but untill you put new parts in there it wont work. get the mercedes lube to lube things up.

george
Reply With Quote
  #8
Old 12-20-2003, 08:02 PM
euronatura's Avatar
Registered User

Join Date: Oct 2003
Location: Guatemala, Central America
Posts: 375
Dear Mbshop

Thanks for the reply. What do you mean by both side units? The Tilt Angle Brackets? Can they bend? They are made of plastic.

As for the bar that goes across, what do you mean by this?

Or is that you mean it is flimsy now because I have not reinstalled the headliner? Should it tighten up or function better with the headliner installed?

Iggy
__________________
Insanity: doing the same thing over and over again and expecting different results.

2006 - Suzuki Gran Vitara (2.0 L fully equipped) Like this car so far except for trying to put on the seatbelt.
1988 - 190e - 2.3L - 172K miles (It now belongs to the exwife)
1999 - Chevy Blazer LS Fully Equiped - killed it June 2006
2001 - Honda Civic EX - 68K miles (sold June 2004)
1963 - 220S - Dual Carb 6 cyl. (sold)
1994 - Yamaha WaveRaider (fun to ride)
Reply With Quote
  #9
Old 12-20-2003, 08:17 PM
Senior Member

Join Date: Jul 2002
Location: visalia ca
Posts: 368
tilt angle brackets or end units. they are made of plastic and twist or break. they need to be replaced. also when there are problems the cross bar tends to tweak and can cause problems.
if you don't replace all with new parts at the same time you will
wind up chasing yourself.
learned this lesson early when i started to repair the new pop up
sunroofs.

george
Reply With Quote
  #10
Old 12-20-2003, 08:19 PM
fahrgewehr2's Avatar
Registered User

Join Date: Aug 2003
Location: Wilmington, NC
Posts: 1,264
Thanks for taking the time to document the task with photographs. Sometimes a simple picture can make a job go MUCH quicker.

I'll be tackinling this job in the springtime

Mike
__________________
'90 300SE 298k
-300K and it gets put into retirement.
'80 300D 255k Purchased new by family in 1980.

Had a:
1973 220 (gas)
1980 300SD
1992 400E
Reply With Quote
  #11
Old 12-21-2003, 04:15 AM
Registered User

Join Date: May 1999
Location: Sacramento, CA
Posts: 1,472
Quote:
Originally posted by euronatura
Now the original probelm was that the passenger side tilt
So my question now is, why could this be? It is not broken or anything but it seems to get tangled a little bit on like every other opening? Could it be that the roof needs adjustement?
Have you tried lightly greasing the track w/ the MB slide paste? If not, the angle bracket sliding feet may be worn out... i'm not sure if you can replace them separately from the angle brackets themselves.
__________________
2000 C 2 3 0 Sport :: 180k
Reply With Quote
