Hello all,
Just wanted to let everyone know that I work in a machine shop as a tig welder and waterjet designer/operator. I have the privilege to make just about anything.
Any ideas? Here's all I could come up with so far with .1875 stainless

__________________


dieselishquestions@gmail.com
1983 300SD
1983 300GD

How about a chrome console box, with cupholders of course for the w123?

How about a chrome push bumper?

__________________
1980 240d
1999 SL500

About how much would it cost for you to make a turbo flange adaptor? It would basicly be a 1/2" steel plate with a big hole in the middle, and 8 holes in a pattern along the outside for bolts/studs.

Similar to this, but the one pictured was made for a diffrent turbo than I have:http://www.peachparts.com/shopforum/attachment.php?attachmentid=33452&d=1148449019

__________________
1979 240D- 316K miles - VGT Turbo, Intercooler, Stick Shift, Many Other Mods - Daily Driver

1982 300SD - 232K miles - Wife's Daily Driver

1986 560SL - Wife's red speed machine

Won't this be fun when she's all bolted up?



This is the protoype 1/8 inch model for the jeep turbo flange adapter.

__________________


dieselishquestions@gmail.com
1983 300SD
1983 300GD

If I decide to adapt my aftermarket cruise system to my car soon I may be in the market for a couple custom brackets to mount the vac servo and the control cable under the hood....

__________________
-diesel is not just a fuel, its a way of life-
'15 GLK250 Bluetec 118k - mine - (OC-123,800)
'17 Metris(VITO!) - 37k - wifes (OC-41k)
'09 Sprinter 3500 Winnebago View - 62k (OC - 67k)
'13 ML350 Bluetec - 95k - dad's (OC-98k)
'01 SL500 - 103k(km) - dad's (OC-110,000km)
'16 E400 4matic Sedan - 148k - Brothers (OC-155k)

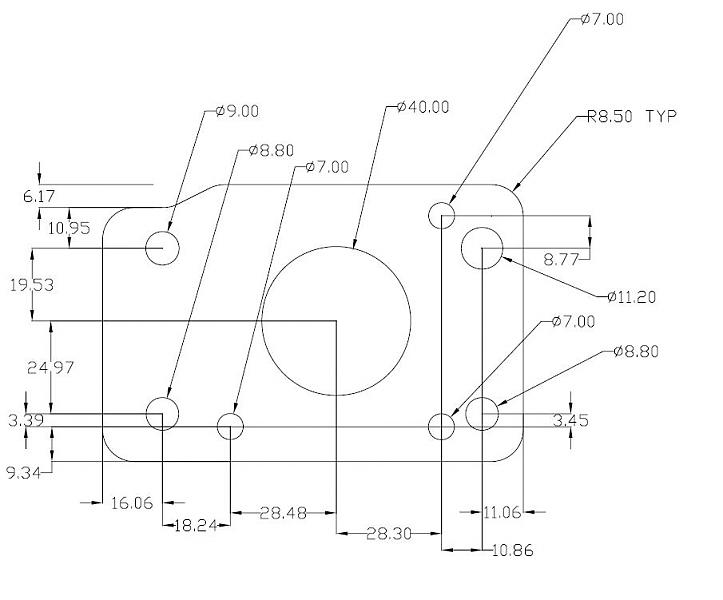

Looks AWSOME!!!! (for other's reference the CAD drawing it is based off of is attached)

The two things I think will need to change are:

1) the holes may need to be resized to allow them to be tapped. (My mistake, I think my drawing used holes designed for passing a bolt through)

2) The inlet hole will need to be the circular one, and I think we will have to grind the transition between the rectangular hole and circular hole our selves (unless your waterjet can cut in 3 dimensions.

I'll revise my CAD drawing and get it to you ASAP.

Attached Thumbnails



__________________
1979 240D- 316K miles - VGT Turbo, Intercooler, Stick Shift, Many Other Mods - Daily Driver

1982 300SD - 232K miles - Wife's Daily Driver

1986 560SL - Wife's red speed machine

the t3 bottow two holes are .266 diameter for an 8mm tap. The bottow two turbo inlet holes are also .266 to get a 8mm tap. The left upper holes is 10mm. and the upper right t2 is 11 mm so a 10mm can go through it countersunk. The last upper right tubro inlet hole is also .266 to get a 8mm tap.

-jon

p.s. you can either have the square or round hole. You pick.

__________________


dieselishquestions@gmail.com
1983 300SD
1983 300GD

I could definately use an oil filter housing relocation plate similar to the attached image:

Attached Thumbnails



Heres a better image:

Attached Thumbnails



You should make cross bars for the TD's. Nice and tasteful just like the originals.

__________________
1982 240 D, 308,000 - 321,127 miles (sold)
1982 300 TD,166,500 - 226,000 miles
1998 E 320, 120,000 - 144,000 miles
2005 C 230 K, 26,000 - 77,000 miles (sold)

Jon,

A pipe to connect the Crossover part of the Intake (on the 602.XXX series)
directly to the Turbo charger compressor outlet.['Lose the "Flapper valve"
pipe AND the EGR pipe foolishness].

The attachment is of the pipe from a Euro NA 602(and their crossover pipe
is slightly longer than ours,so the construct would have to be slightly longer.)

If you would look at this thread: (reply #18)
http://www.peachparts.com/shopforum/showthread.php?t=212097&page=2

Gsxr's idea will become clear.

I cannot downsize the picture in #18 enough to re-post it.

EDIT: the actual length will be between 144mm and 157mm.
GSXR will let us know the "Exact" next week when he's back in town.

Thank You!

Attached Thumbnails



__________________
'84 300SD sold
124.128

Here is the revised flange

Attached Thumbnails



__________________
1979 240D- 316K miles - VGT Turbo, Intercooler, Stick Shift, Many Other Mods - Daily Driver

1982 300SD - 232K miles - Wife's Daily Driver

1986 560SL - Wife's red speed machine

Jon. Looking good so far. Keep us posted, and let me know when you want help hooking up and testing the new turbo.

__________________
1985 300D Gretchen (Astral Silver) 220k
1983 240D 4-speed Evelyn (Orient Red) 203k


TANSTAAFL

Here's the reducing pipe dimensions:
