I'm going to re-install my front bumper rubber mount this weekend. Wondering if anyone has had to do this before and knows how to get it to seat in the mounting brackets completely. The old one was held in with a tie wrap, do I need to hold the new one on in a similar manner?

__________________
Never be ashamed to ask for help.

1985 300D
1987 300SDL
1970 Jaguar E-Type OTS
2002 Dodge Intrepid (Traded In)
2011 Ford Crown Victoria

You shouldn't need to do that - the rubber should fit around the metal reinforcing bracket if I remember correctly. It depends on the condition of the rubber and the bracket however!

__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!

Okay I'll attempt installation this weekend. Thanks!

__________________
Never be ashamed to ask for help.

1985 300D
1987 300SDL
1970 Jaguar E-Type OTS
2002 Dodge Intrepid (Traded In)
2011 Ford Crown Victoria

it's been a while since I've done one, but the rubber has opposing directional tabs that hold it into the bumper, and the outer edges of the bumper hold everything still.

__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!

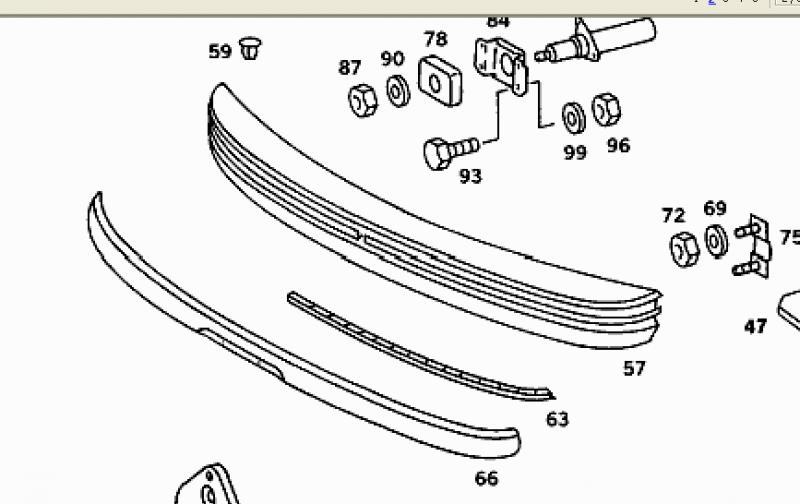

The rubber part (#66) has a channel that fits over a couple of plastic pieces [#63] (with opposing tabs) that fit into the bumper. When I did the rear strip on my CD, I used some kite string to hold the two plastic pieces in place while I hammered the rubber part on, fitting it in the side pieces. A search may find the thread.

Attached Thumbnails



__________________
83 SD

84 CD

Here's a write-up I did when I fixed the strip on my CD.

DIY - Attaching w123 Bumper Strip
