I have a 190D 2.5 diesel from 1986.
I'm putting an airco in it.

But i dont know how to mount the condenser.
Can someone who has a 190D 2.5 diesel make some picture how its mounted?

So for a know on the top there 2 clips that hold it. But i have no idea how its kept in place in the bottom.

I don't know the 201 as well as the 1xx models, but the 123/124/126 have 2 rubber grommets on the bottom support beam, that receive two pegs on the bottom of the condenser. Then the two clips at the top secure the condenser to the cross member at the top.

__________________
The OM 642/722.9 powered family
Still going strong
2014 ML350 Bluetec (wife's DD)
2013 E350 Bluetec (my DD)

both my kids cars went to junkyard in 2023
2008 ML320 CDI (Older son’s DD) fatal transmission failure, water soaked/fried rear SAM, numerous other issues, just too far gone to save (165k miles)
2008 E320 Bluetec (Younger son's DD) injector failed open and diluted oil with diesel, spun main bearings (240k miles)

1998 E300DT sold to TimFreeh
1987 300TD sold to vstech

That's how it mounts in my 88 190D

__________________
68 280SL - 70 280SL - 70 300SEL 3.5 - 72 350SL - 72 280SEL 4.5 - 72 220 - 72 220D - 73 450SL - 84 230GE - 87 200TD - 90 190E 2.0 - 03 G500

Nissan GTR - Nissan Skyline GTS25T - Toyota GTFour - Rover Mini - Toyota Land Cruiser HJ60 - Cadillac Eldorado - BMW E30 - BMW 135i

Thanks for the input.
My condenser didn't line up with the holes.
Maybe i need an extra bracket or so.

A picture is a 1000 words, i already look up on google for 2 hours to find a suitable picture but couldn't find a good one.

Best i could find:

Attached Thumbnails



In front of and above the large rubber grommets the radiator drops into there are smaller rubber grommets, those are what the condenser drops into.

The condenser has rubber sleeves on the tabs on the top of it. Those clip to the core support with the same type of clips that hold the radiator in.

Are you trying to reinstall your original condenser or a new one?

On a 190D both fittings on the condenser are on the drivers side. On most gassers the condenser has one fitting on the drivers side and one on the passenger side. Do you have the wrong condenser?

The one in you're picture is what your car should look like.

__________________
68 280SL - 70 280SL - 70 300SEL 3.5 - 72 350SL - 72 280SEL 4.5 - 72 220 - 72 220D - 73 450SL - 84 230GE - 87 200TD - 90 190E 2.0 - 03 G500

Nissan GTR - Nissan Skyline GTS25T - Toyota GTFour - Rover Mini - Toyota Land Cruiser HJ60 - Cadillac Eldorado - BMW E30 - BMW 135i

My car didn't have an A/C
I have all the components to build one in.
I bought a new condenser:


There 2 stubs in the bottom, they wont fit anywhere.
English is not my native language, so pictures are better for me

Attached Thumbnails



Can some help me getting a few pictures?
I really would appreciated it.

Here is a little history about my car.
I have a 190D 2.5 automatic from 1986, without airco (or any option that matter)

I bought a nice 190E 2.6 with alot of options and airco.
The idea was to put the options to the 190D include the airco.

After the dismembering the 190E 2.6 i found out that not all parts of the airco could be used on the 190D

What parts are different?
electric wires
aircorelays
engine mount aircopump
condenser
condenser aircofan
main airco hose from the pump to the condenser/evaporator

The rest i could use.
Some pictures:

Rebuild airco cable-loom

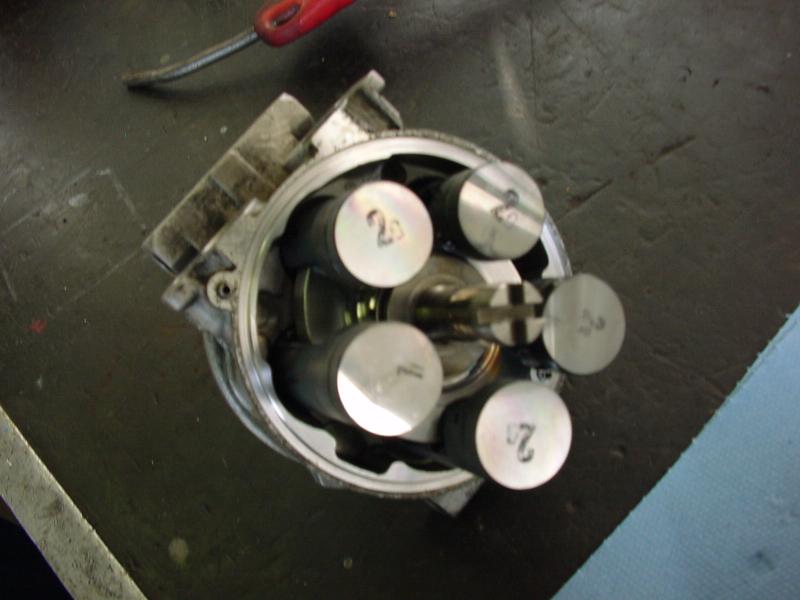

Rebuild the airco pump


New parts, Airco sensors, new o-rings, rebuild set for the pump with new bearing.


other aircomount for engine.

Attached Thumbnails



Other airco relay for a diesel with kickdown.


Other aircohose for the 2.5 diesel

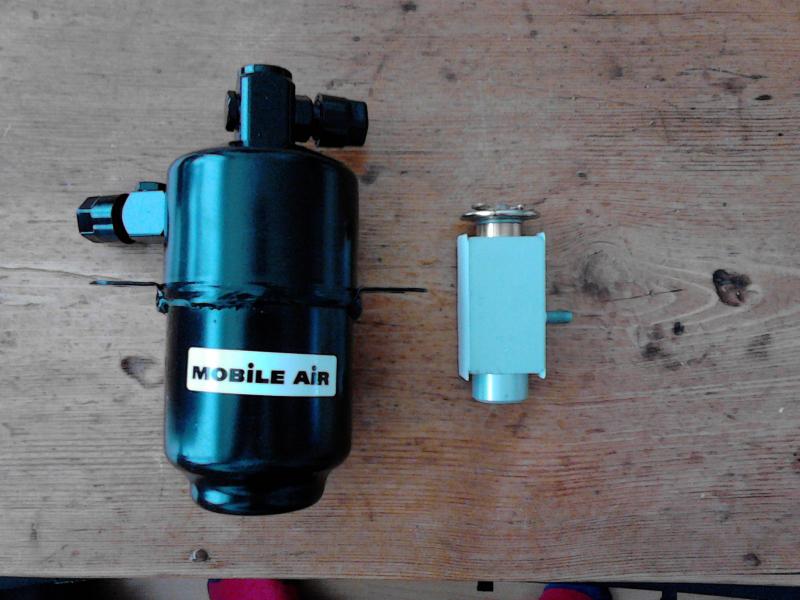

New drier and expansion valve.

Im very serious about the project, so i hope this motivate someone to make those pictures for me

Attached Thumbnails



It's ashame that you can't charge this brand new system with R12, or can you? Even though you are in a mild climate, it would make a more effective AND longer lived a/c system.

__________________
2001 SLK 320 six speed manual
2014 Porsche Cayenne six speed manual

Annoy a Liberal, Read the Constitution

No, R12 is illegal here aswell.
But i could get it filled with an R12 replacement gas R413A?
But any respecting garage here can fill R134a.
For the oil I have chosen Supercool ester oil.

I wish I had a 201 to take a picture for you.
I MAY have access to one. I'll try next week...

__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!

Just take out the radiator. It will be painfully obvious to you with the radiator out. The condenser just snugs up against the front of the rad and in a rail at the bottom. As far as taking the rad out, it is a little messy, but makes the job a whole lot easier. That's what I did. Otherwise, it is a major pain to pull and replace the condenser with the radiator in.

In the meantime, I can shoot some pics in the morning.

__________________
Michael
Southern California/Santa Monica
1986 MB 190D 2.5, 5 Speed Black and Palomino "Mordechai"
1985 Porsche 928S (32V), 5 Speed
1980 Porsche 928 (16V), 5 Speed

Thanks, but looks like Metafly is going to make some pictures for me.

@Metafly

Pulling the radiator isn't an problem, i want to replace the coolant anyway.
I already test fitted the condenser, it can be done

Those picture are very welcome, where the condenser falls in.

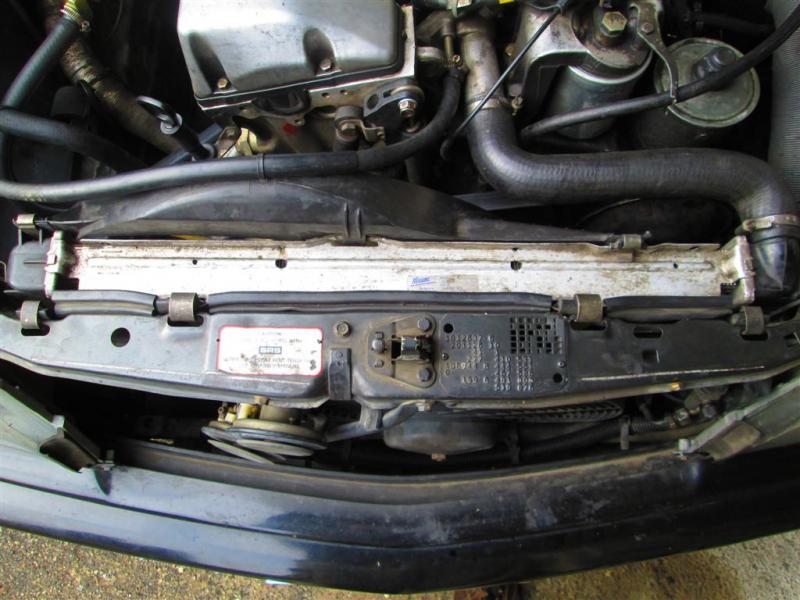

Hope these help. Again, with the radiator removed, you will have zero questions about the condenser placement. Even though doable , you will have a much easier time getting it back together without damage if the radiator is pulled.
