OM606 glow plug hole trashed

Y'all!

back story: My friend just got this '98 E300 turbo diesel about a month ago. A couple minor issues to start with but got those sorted out for the most part and all has been fairly well so far...
http://www.peachparts.com/shopforum/diesel-discussion/387614-98-e300-td-flashing-triangle-light.html

NOW: he was driving the other day and had some kind of catastrophic failure. Loud noise from the engine, smoke/steam/fumes under the hood, no power. Tow truck time.

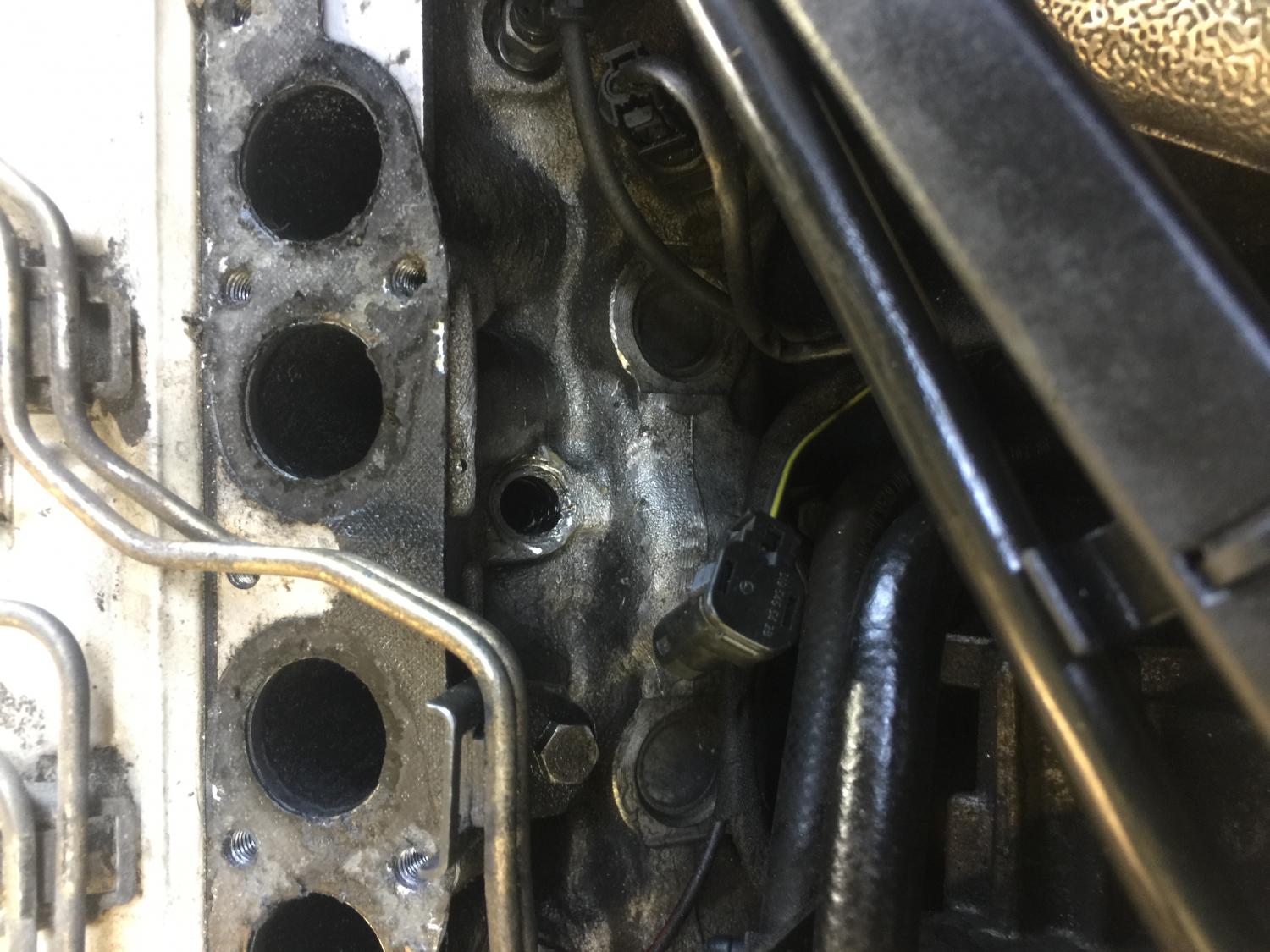

went over yesterday to help him figure it out. pulled the intake manifold and saw the problem right away. Previous owner had JB welded one glow plug into its hole! JB welded glow plug had blown out. see pictures.

So, i'm getting together a plan to try to fix this. Gathering info from the interweb and soliciting advice and ideas from you all.

Thinking about using a time sert thread repair thingy. looks like the GP hole in the head is still mostly intact. very small amount of original tread left.

Question: looking at the 12mmX1.25X15mm thread repair. dose this size up with the GP for a om606??

i am personally least experienced with the om606. all advice and ideas are welcome. Thanks!

Attached Thumbnails
OM606 glow plug hole trashed-img_4354.jpg
__________________
Current fleet
2006 E320 CDI
1992 300D "IceBerg"
1984 300D "Blues Mobile"

1978 300CD "El Toro" Gone on to be born again

Last edited by Phillytwotank; 08-14-2017 at 08:59 PM.
Reply With Quote
  #2
Old 08-14-2017, 11:23 AM
greazzer's Avatar
dieselfuelinjector.guru

Join Date: Sep 2010
Location: 2021 - The Great Florida Count-down
Posts: 6,119
This is a machinist issue and perhaps not really a mechanic's. I am betting you could find a local, indiy machinist which would fix this for well under a hundred smackers and you will be getting all his years of experience and skills....
Reply With Quote
  #3
Old 08-14-2017, 11:28 AM
Registered User

Join Date: Aug 2011
Location: Carolina
Posts: 1,438
Do you know of anybody?
__________________
Current fleet
2006 E320 CDI
1992 300D "IceBerg"
1984 300D "Blues Mobile"

1978 300CD "El Toro" Gone on to be born again
Reply With Quote
  #4
Old 08-14-2017, 11:36 AM
greazzer's Avatar
dieselfuelinjector.guru

Join Date: Sep 2010
Location: 2021 - The Great Florida Count-down
Posts: 6,119
Mintz in Columbia by the Stadium
Reply With Quote
  #5
Old 08-14-2017, 11:45 AM
greazzer's Avatar
dieselfuelinjector.guru

Join Date: Sep 2010
Location: 2021 - The Great Florida Count-down
Posts: 6,119
IDK anyone up in your neck of the woods. I bet there's plenty of folks in Charlotte ...
Reply With Quote
  #6
Old 08-14-2017, 11:51 AM
Registered User

Join Date: Aug 2011
Location: Carolina
Posts: 1,438
this car lives in winnsboro
__________________
Current fleet
2006 E320 CDI
1992 300D "IceBerg"
1984 300D "Blues Mobile"

1978 300CD "El Toro" Gone on to be born again
Reply With Quote
  #7
Old 08-14-2017, 12:04 PM
jake12tech's Avatar
Registered User

Join Date: Nov 2011
Location: Philadelphia, PA
Posts: 2,784
Why not just helocoil it and call it a day
__________________
1999 E300 220k
Reply With Quote
  #8
Old 08-14-2017, 12:04 PM
greazzer's Avatar
dieselfuelinjector.guru

Join Date: Sep 2010
Location: 2021 - The Great Florida Count-down
Posts: 6,119
Thats a hike ... Dont know anyone in Winnsboro ...
Reply With Quote
  #9
Old 08-14-2017, 12:12 PM
Registered User

Join Date: Aug 2011
Location: Carolina
Posts: 1,438
Quote:
Originally Posted by jake12tech View Post
Why not just helocoil it and call it a day
Do you have experience with this Jake? Doing that would be my preferred method to get it fixed but i'm just completely out of my realm of experience on this one. I'm looking at the timesert thread repair
https://www.amazon.com/TIME-SERT-Metric-Thread-Repair-1212/dp/B001ZS2BJ4/ref=sr_1_fkmr0_1?ie=UTF8&qid=1502723599&sr=8-1-fkmr0&keywords=time+set+12mmx1.25

it's on cylinder four so access is about as best as one could ask for.

Your thoughts?
__________________
Current fleet
2006 E320 CDI
1992 300D "IceBerg"
1984 300D "Blues Mobile"

1978 300CD "El Toro" Gone on to be born again
Reply With Quote
  #10
Old 08-14-2017, 12:16 PM
greazzer's Avatar
dieselfuelinjector.guru

Join Date: Sep 2010
Location: 2021 - The Great Florida Count-down
Posts: 6,119
That is why I suggested a machinist. He already has all the inserts and the tools, and the years of doing this over and over.. For the price of buying a kit, you could probably get a machinist to do it and you would have no learning curves. I am guessing this is a one try or one mistake deal.
Reply With Quote
  #11
Old 08-14-2017, 12:17 PM
jake12tech's Avatar
Registered User

Join Date: Nov 2011
Location: Philadelphia, PA
Posts: 2,784
Quote:
Originally Posted by Phillytwotank View Post
Do you have experience with this Jake? Doing that would be my preferred method to get it fixed but i'm just completely out of my realm of experience on this one. I'm looking at the timesert thread repair
https://www.amazon.com/TIME-SERT-Metric-Thread-Repair-1212/dp/B001ZS2BJ4/ref=sr_1_fkmr0_1?ie=UTF8&qid=1502723599&sr=8-1-fkmr0&keywords=time+set+12mmx1.25

it's on cylinder four so access is about as best as one could ask for.

Your thoughts?
Phil, personally I was looking into it and thinking about it. The timsert would be a better more solid than a helocoil. Although both would work. It is your best option. It can be done either and save your friend alot cash on machine shop repair.
__________________
1999 E300 220k
Reply With Quote
  #12
Old 08-14-2017, 12:21 PM
Registered User

Join Date: Aug 2011
Location: Carolina
Posts: 1,438
I'm going to call Mintz and see what they say. having to pull the head to get it in their shop would significantly increase the difficulty on this one. If they could do it in situ then i will seriously consider having them do it.
__________________
Current fleet
2006 E320 CDI
1992 300D "IceBerg"
1984 300D "Blues Mobile"

1978 300CD "El Toro" Gone on to be born again
Reply With Quote
  #13
Old 08-14-2017, 12:40 PM
Registered User

Join Date: Sep 2009
Location: Oberlin, OH
Posts: 634
Quote:
Originally Posted by greazzer View Post
That is why I suggested a machinist. He already has all the inserts and the tools, and the years of doing this over and over.. For the price of buying a kit, you could probably get a machinist to do it and you would have no learning curves. I am guessing this is a one try or one mistake deal.
X2.
__________________
-- Chris

'95 E300, 216k miles, Silver Surfer
'05 E320 CDI, 138k miles
'07 S550 4matic, 69k miles

Gone but not forgotten:

'76 300D, 350k miles?, SOLD in 1995
'75 240D, 300k miles, SOLD in 1991
Reply With Quote
  #14
Old 08-14-2017, 01:17 PM
greazzer's Avatar
dieselfuelinjector.guru

Join Date: Sep 2010
Location: 2021 - The Great Florida Count-down
Posts: 6,119
Quote:
Originally Posted by Phillytwotank View Post
I'm going to call Mintz and see what they say. having to pull the head to get it in their shop would significantly increase the difficulty on this one. If they could do it in situ then i will seriously consider having them do it.
Call Lee. He's a great guy. Tell him he's a legend already in the MB diesel community by dealing with my looney projects. lol. He is really a dying breed. I checked out the kit and I cannot see this costing more than $100 smackers. Plus, can you tow this thing in? Taking off the head is a major project plus will cost a bundle.
Reply With Quote
  #15
Old 08-14-2017, 01:26 PM
KarTek's Avatar
<- Ryuko of Kill La Kill

Join Date: Jun 2007
Location: Bahama/Eno Twp, NC
Posts: 3,258
This is the exact, and I mean EXACT thing that happened to my car, right down to the JB welded bolt in the GP hole.

I have the complete Time-Sert kit to repair it, including the inserts and the special tools to prep the hole.

There's a thread somewhere about my repair from about 10 years ago.

__________________
-Evan


Benz Fleet:
1968 UNIMOG 404.114
1998 E300
2008 E63


Non-Benz Fleet:
1992 Aerostar
1993 MR2
2000 F250
Reply With Quote
