#1
|
||||
|
||||
W123 (85 300D) alternator pivot bolt
This is the one at the bottom.
On my car, the bolt is missing! Must have fallen out! Checked with dealer and there are none in Canada. Have to order from Germany. Part N000931010388 Does anyone know the dimensions and especially, pitch of thread on the bolt? Dealer's EPC doesn't show it. I have a 100mm M10 bolt with 1.5mm pitch. To try it, I will have to try and align alternator with bracket holes first, but might be hard to see if it threads in properly. Or move alternator up out of way. Not so easy with turbo, coolant lines etc in way.
__________________
Graham 85 300D,72 350SL, 98 E320, Outback 2.5 |
#2
|
||||
|
||||
Iirc on my engine that hole is not threaded, the bolt goes straight through and is kept tight via a nut. I have an OM617 at home that is completely disassembled, I will see about getting you the correct bolt size when I get home tonight.
Max |
#3
|
||||
|
||||
Quote:
By the way, epc shows no nut - just a lock washer under head. I "think" there are threads at front end near the belts.
__________________
Graham 85 300D,72 350SL, 98 E320, Outback 2.5 Last edited by Graham; 09-27-2018 at 11:00 PM. |
#4
|
|||
|
|||
That is correct. The head of the bolt is to the rear.
__________________
When cryptography is outlawed, bayl bhgynjf jvyy unir cevinpl. |
#5
|
||||
|
||||
Local Lowes (Hillman) has M10x1.25 in 75mm and 100mm lengths in stock. If bracket has fine thread, those might work. Otherwise have the M10x1.5x100mm
(100mm too long but could cut to length)
__________________
Graham 85 300D,72 350SL, 98 E320, Outback 2.5 |
#6
|
||||
|
||||
Mine also has a bolt with a self locking nut on the opposite end.
What is interesting is I have read at lest 3 threads over the years where that Bolt was to rusted in to remove easily. And in your case it removed itself.
__________________
84 300D, 82 Volvo 244Gl Diesel |
#7
|
||||
|
||||
Quote:

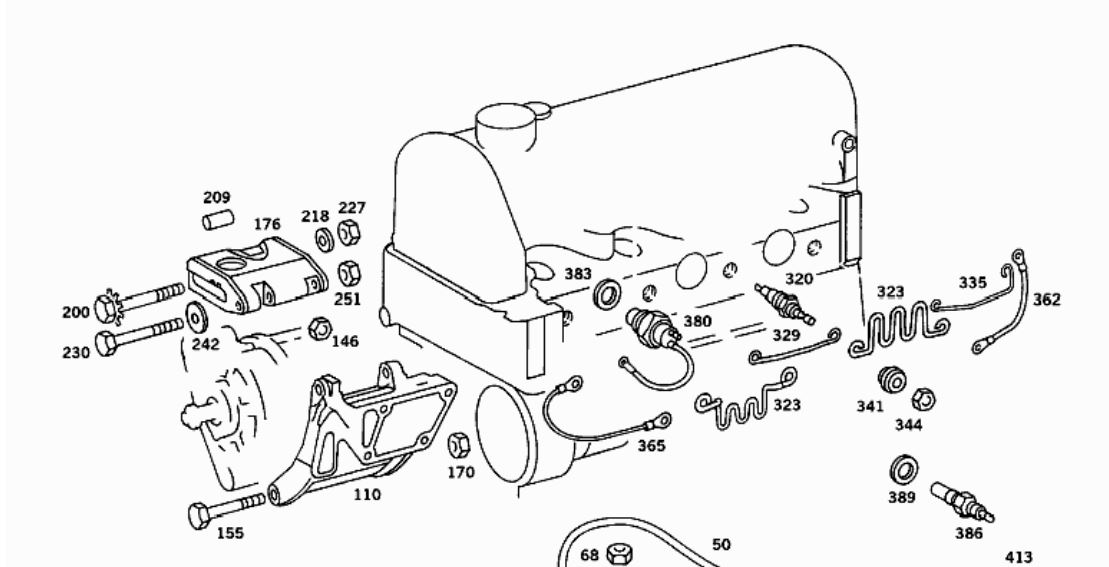

Looking at this epc diagram, it seems there are/were two versions. One with nut (Part 155) and one without (part 158). I think mine would have been 158 because I can get 10mm bolt in rear end, but not in from front. The part 155 and corresponding nut does not show down below in this link for 123.133 But does for 123.130 but even then seems to have been superceded. https://nemigaparts.com/cat_spares/epc/mercedes/1/m/617952/67k/15/105/?chasis=12313368K The location of that bolt is such that it has permanent rustproofing/lubrication - at least on my car No wonder it fell out!
__________________
Graham 85 300D,72 350SL, 98 E320, Outback 2.5 Last edited by Graham; 09-28-2018 at 10:21 AM. |
#8
|
||||
|
||||
Quote:
In the first illustration #170 is the nut.
__________________
84 300D, 82 Volvo 244Gl Diesel |
#9
|
|||
|
|||
The first illustration should be non-applicable for an '85 model.
__________________
When cryptography is outlawed, bayl bhgynjf jvyy unir cevinpl. |
#10
|
||||
|
||||
I probably have a dozen of these. You pay the shipping, and I will send you one......Rich
__________________
All Diesel Fleet 1985 R107 300SLD TURBODIESEL 2005 E320 CDI (daily) LOTS of parts for sale! EGR block kit http://www.peachparts.com/shopforum/diesel-discussion/355250-sale-egr-delete-block-off-plate-kit.html 1985 CA emissions 617 owners- You Need This! Sanden style A/C Compressor Mounting Kit for your 616/ 617 For Sale + Install Inst. Sanden Instalation Guide (post 11): http://www.peachparts.com/shopforum/diesel-discussion/367883-sanden-retrofit-installation-guide.html |
#11
|
||||
|
||||
85 300D alternator pivot bolt
I'm doing that right now, there's no nut on that and it's a coarse thread. I don't know the thread pitch, but the bolt is 125mm long from the shoulder.
__________________
1985 300D-189k The 'UD', Ivory and Pinkamino 1979 300D-211k Dark Gray, Parchment A 1980 Harley-~166k and A 1994 Ford diesel pickup-349k and A 1990 gasser Volvo wagon-145k |
#12
|
||||
|
||||
Looks like mine was stripped out, has a nut on it. Sorry I couldn't be more helpful.
__________________
Milan Brown 1979 240D, rebuilt OM617.952 turbo diesel, rebuilt 722.315 transmission (my only daily driver) Instagram: @maximed93 |
#13
|
|||
|
|||
Presumably, you have a ruler...
__________________
When cryptography is outlawed, bayl bhgynjf jvyy unir cevinpl. |
#14
|
||||
|
||||
It is, but that illustration is not for the 123.133 (like my 85 turbo diesel) If I look for a 123.130 USA version, it shows both types. Big difference in price for alternator lower bracket! Maybe that is when they went to double belts (bigger alternator?)
https://nemigaparts.com/cat_spares/epc/mercedes/1/m/617912/67k/15/105/?chasis=12313068K By the way, I lost access to MBUSA EPC. The nemigaparts site is a very useful replacement! https://nemigaparts.com/cat_spares/epc/mercedes
__________________
Graham 85 300D,72 350SL, 98 E320, Outback 2.5 |
#15
|
||||
|
||||
You presume correctly, sir! Actually, digital calipers.
__________________
1985 300D-189k The 'UD', Ivory and Pinkamino 1979 300D-211k Dark Gray, Parchment A 1980 Harley-~166k and A 1994 Ford diesel pickup-349k and A 1990 gasser Volvo wagon-145k |
