Scraping sound and then ...omg(updated)

Yep, thats rite. I started up the car and heard a very strange scraping sound. I thought something was rubbing against the fan blades. Well I let it run for a few seconds, then all of a sudden heard a loud pitch sound and saw the fan come to a slow stop!!! while engine was running.

I had to pick up my gf, so I thought I'd chance it, well the car actually ran cooler than it usually does, probably because it wasn't drawing hot air from my poor radiator. I have yet to look at the fan, I know I have to replace the radiator.

What do you this has caused the fan to stop like this. Also, when this happened there was a strange odour that seemed to come from the fan stopping. What could this mean?


190e 2.6L 1990, 277,000KM

__________________
190e 2.6 1990. 300,000 KM
C230 K 2000, 130,000 KM

Last edited by mykg4orce; 05-20-2005 at 11:32 PM.
Reply With Quote
  #2
Old 05-13-2005, 07:40 AM
DaimlerChrysler's Avatar
Registered User

Join Date: Mar 2002
Location: Lexington, Kentucky
Posts: 132
Most likely it was the bearings in the water pump went bad. I had a mint 1968 BMW 2002 that without any warning the bearings in the water pump seized up knocking the fan blade out of alignment causing the fan to dig chucks out of the radiator.

Usually a water pump will leak first, but mine didn't. Just fix it and try not to cry too much!
__________________
Old age and treachery will allways overcome youth and skill!

1993 S500
1984 380SL
Reply With Quote
  #3
Old 05-13-2005, 09:29 AM
Registered User

Join Date: Jul 2004
Posts: 104
So you are saying there is a connection between the water pump and the fan? If the pump is bad then how did my car run at 85 degrees the whole time, even in slow traffic?
__________________
190e 2.6 1990. 300,000 KM
C230 K 2000, 130,000 KM
Reply With Quote
  #4
Old 05-13-2005, 09:42 AM
Registered User

Join Date: Aug 2003
Location: New Orleans, LA
Posts: 305
if water pump was bad car would have overheated. sounds like the fan clutch went out.
__________________
2005 Mercedes C230k sport sedan, 6 speed
1987 Porsche 924S - 968-engined track car
Reply With Quote
  #5
Old 05-13-2005, 10:14 AM
Registered User

Join Date: Jul 2004
Posts: 104
I agree...otherwise how would you explain the smell? As I said the car ran fine, at first I thought the car died...but engine was still running, very quietly.
__________________
190e 2.6 1990. 300,000 KM
C230 K 2000, 130,000 KM
Reply With Quote
  #6
Old 05-13-2005, 10:14 AM
Registered User

Join Date: Jul 2004
Posts: 104
does anyone have any tips on replacing the fan clutch?
__________________
190e 2.6 1990. 300,000 KM
C230 K 2000, 130,000 KM
Reply With Quote
  #7
Old 05-13-2005, 10:34 AM
Ta ra ra boom de ay

Join Date: Jun 2004
Location: Pittsburgh
Posts: 1,915
Are you sure it's the clutch?

The scraping sound... sounds like the bearing bracket (bolts onto the block and holds the pulley that the fan clutch is attached to in place). In my case I found it because the pulley was rubbing against the crank pulley, squeling, and sending a tiny fountain of metal shavings upward from the area of the water pump.

Try to wiggle the fan (when its not running) back and forth... if it has a lot of play the bearing is shot. Even with a bad bearing the poly-V belt will hold it in place to a degree.

Good luck.
__________________
-Marty

1986 300E 220,000 miles+ transmission impossible
(Now waiting under a bridge in order to become one)

Reading your M103 duty cycle:
http://www.peachparts.com/shopforum/showpost.php?p=831799&postcount=13
http://www.peachparts.com/shopforum/showpost.php?p=831807&postcount=14
Reply With Quote
  #8
Old 05-13-2005, 03:00 PM
nglitz's Avatar
Registered User

Join Date: Aug 2004
Location: Hamilton Square NJ, near Trenton
Posts: 391
It's not the water pump. The only connection b/t the pump & the fan on the M103 is that they're driven by the same belt. I just finished replacing the "bearing bracket" as it's called in the parts listings. It's a casting that bolts to the front of the engine & holds the bearing that the fan & clutch bolt to. That bearing is a fairly good sized double row ball bearing. Mine wobbled around & made growling noises for an amazingly long time before I discovered the problem.

Look down between the fan & engine, with a flashlight if needed. Grab the tip of a fan blade or two & try to move it front & back. If it rocks on the clutch, bad clutch. If the clutch rocks with it, bad bearing, need the bracket assy. They typically go for $85 on eBay. That's where I got one. It is a Lemforder brand, an OEM for MB. In my case, the growling noise was the bottom, back edge of the fan pulley (no grooves, flat side of the belt) rubbing on the block. It didn't wear the pulley out and just shined up the block, so no real damage & it got reused.

I'm not going to go through the whole procedure, as it's detailed pretty well in a number of threads. I will say that it's much easier if you pull the radiator first. Mucho more knuckle clearance. while you're in there, might as well take a look at the other idler bearings and the tensioner, too. And, of course, the belt.

HTH,
__________________
Norm in NJ
Next oil change at 230,000miles
Reply With Quote
  #9
Old 05-20-2005, 12:39 AM
Registered User

Join Date: Jul 2004
Posts: 104
Alright, I have tried moving the fan, back and fourth but I get no play. When the engine is running I can hear something kicking around. I just installed a new radiator. And right now I am running the car without the condenser and Aux fans. Just for short distances and in clear-traffic conditions. temp seems to stick to 80 degree mark constantly.

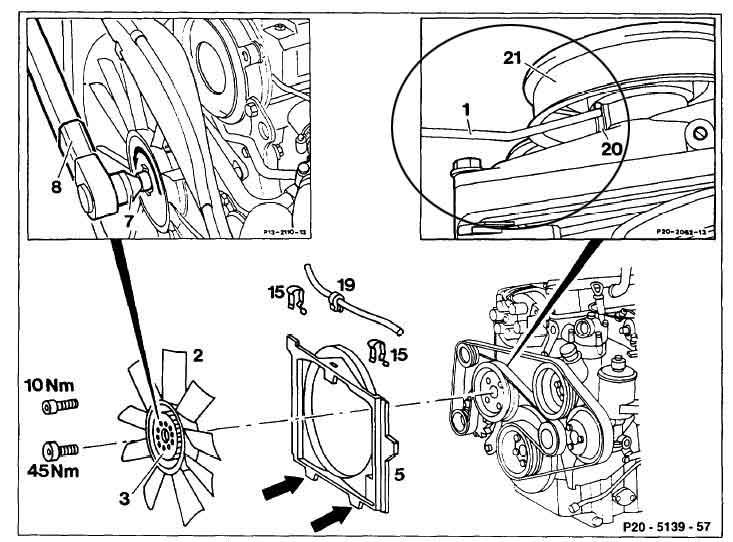

I have also ordered a fan clutch from Autohauz. Only problem is, to figure out, how to remove the fan clutch. All I have to refer to is this picture from a pdf file( circled area ), explaining how to remove the clutch. But I dont have the luxury of this special tool. And I wonder if its possible to Loan it from MB or if its an expensive buy.

I dont want to hold onto the fan blades and torque off the clutch.
Attached Thumbnails
Scraping sound and then ...omg-fan_clutch.jpg
__________________
190e 2.6 1990. 300,000 KM
C230 K 2000, 130,000 KM
Reply With Quote
  #10
Old 05-20-2005, 09:22 AM
Boudreaux's Avatar
Mein Name ist Dieter.

Join Date: Sep 2003
Location: Pearland, TX
Posts: 174
Talking Correct car operating water temp...

Quote:
Originally Posted by mykg4orce
So you are saying there is a connection between the water pump and the fan? If the pump is bad then how did my car run at 85 degrees the whole time, even in slow traffic?
Your car was not running cool because MB displays the temperatures in CELSIUS. When converted, 85 Celsius is actually 185 Farenheit, which is a not super-hot but if left unchecked with a broken cooling part could possibly do further damage.

Good luck.
__________________
'94 SL500 Tourmaline Green, 120K miles as of February 27, 2005.

http://home.earthlink.net/~boudreaux...ictures/17.jpg
Updated photo September 2004
Reply With Quote
  #11
Old 05-20-2005, 10:46 AM
Registered User

Join Date: Jul 2004
Posts: 104
All I know is that the normal operating temperature is 85 Degrees, my car was running at about 80-83 range.

Also the fan clutch now seems to work but continues to make noises. The fan spins but I cant be sure it is working properly.

Again I need some insight from people who have replaced their clutch without using this special tool as circled in the attached image two posts up.
__________________
190e 2.6 1990. 300,000 KM
C230 K 2000, 130,000 KM
Reply With Quote
  #12
Old 05-20-2005, 11:17 AM
Registered User

Join Date: Sep 2004
Location: DFW / Collin County Texas
Posts: 1,882
In celsius, 100 degrees is the boiling point of water (much less confusing than Fahrenheit, don't you think?). But you don't just put water in the cooling system; you put a mixture of antifreeze and water which has a slightly higher boiling point, perhaps around 105 to 108. In addition, everything is under high pressure which further raises the boiling point of the mixture to around maybe 115. I don't know about on your car, but on my 300E the "red zone" on the temp gauge is at 120 degrees.

Once the water starts to boil or bubble, you have a gas/liquid mixture rather than just liquid flowing through the cooling jackets. The gas will not absorb heat as quickly as the liquid, and the temperature of the metals shoots through the ceiling quickly, resulting in warpage or other damage. Rapid cooling (like turning the engine off or - worse yet - adding cool water to the cooling system) can cause cracks in the metal, much in the way an ice cube cracks when you drop it in a glass of water. In all cases, the key to avoiding damage is to prevent boiling from occurring in the first place.

As long as your coolant/water mixture is not boiling, you are fine. And 85 celsius is not even near the boiling point.
__________________
08 W251 R350
97 W210 E320
91 W124 300E
86 W126 560SEL
85 W126 380SE Silver
85 W126 380SE Cranberry
79 W123 250
78 W123 280E
75 W114 280
Reply With Quote
  #13
Old 05-20-2005, 11:23 AM
Registered User

Join Date: Jul 2004
Posts: 104
exactly.
__________________
190e 2.6 1990. 300,000 KM
C230 K 2000, 130,000 KM
Reply With Quote
  #14
Old 05-20-2005, 11:28 PM
Registered User

Join Date: Jul 2004
Posts: 104
An update.


After discovering metal shavings around the clutch pully, saw that the pully was rubbing against the crankshaft pully, slowly sanding off the metal exposing the aluminum below. Anyway when I was moving the fan back and fourth I saw no movement, well I attempted to lift the clutch pully with my hand, as to move it up, it actually moved quiet a bit. When I took the belt off, it was apparent that the bearings have been worn out.


I am going to need a new pully as well, because the edges on the pully (aft side) have been worn down. I already have a new clutch on the way. I am wondering tho, is it possible to repair the bearings in the bracketery. I mean there must be a way instead of replacing the whole unit.....????


Any thoughts....
__________________
190e 2.6 1990. 300,000 KM
C230 K 2000, 130,000 KM

Last edited by mykg4orce; 05-21-2005 at 12:11 AM.
Reply With Quote
  #15
Old 05-22-2005, 05:43 PM
nglitz's Avatar
Registered User

Join Date: Aug 2004
Location: Hamilton Square NJ, near Trenton
Posts: 391
Quote:
Originally Posted by mykg4orce
An update.


After discovering metal shavings around the clutch pully, saw that the pully was rubbing against the crankshaft pully, slowly sanding off the metal exposing the aluminum below. Anyway when I was moving the fan back and fourth I saw no movement, well I attempted to lift the clutch pully with my hand, as to move it up, it actually moved quiet a bit. When I took the belt off, it was apparent that the bearings have been worn out.


I am going to need a new pully as well, because the edges on the pully (aft side) have been worn down. I already have a new clutch on the way. I am wondering tho, is it possible to repair the bearings in the bracketery. I mean there must be a way instead of replacing the whole unit.....????


Any thoughts....
Bingo, Exactly what failed on mine. If you can find the bearing itself, and have the tools to press it off from the bracket, I'm sure that would do the job. If not, It's quite straightforward to replace the whole "bearing bracket". Here's the one I got for my '87 260E. Same vendor. Bearing bracket. It should be the same as yours.

That special tool you have circled in the PDF is just a piece of wire that you stick between the two bumps on the bearing bracket and into a hole in the back of the fan clutch pulley. A piece of industrial strength coat hanger wire would do it. You can see the two bumps in your pdf. They are at about 1 o'clock on the pulley bearing. A strong flashlight really helps. First unclip the fan shroud and move it back for access. Then unscrew the fan/clutch with an 8mm allen wrench. Once that's off, you can pull the fan/clutch and the shroud up together. Then it's pretty straightforward from there on.

HTH,

__________________
Norm in NJ
Next oil change at 230,000miles

Last edited by nglitz; 05-22-2005 at 05:49 PM.
